Model C |
- Heavy-duty manual wall or ceiling screen
- Ideal for large conference and training rooms
- Easy pull-down system locks at intervals to fit a variety of projection formats
- Permanently lubricated steel ball bearings combined with nylon bushings and sturdy spring assembly provides smooth operation
- Case design allows surface mounting to the ceiling or wall
- Standard with white case; black case is optional
- "S" after the price signifies that the screen surface is seamed
Spec Sheet
Instructions |
Video (4:3) Format Screens
Recommended for use with native 4:3 projectors such as those with SVGA, XGA, and UXGA resolution. |
Viewing Area
|
Diagonal
|
(+) Black Border
|
|
|
|
|
|
|
43" x 57 " |
72" |
1.5" |
|
|
|
|
|
|
50.5" x 67 " |
84" |
1.5" |
|
|
|
|
|
|
60" x 80" |
100" |
2.0" |
|
|
|
|
|
|
69" x 92" |
120" |
2.0" |
|
|
|
|
|
|
87"
x 116" |
150" |
2.0" |
|
|
|
|
|
|
105"
x 140" |
180" |
2.0" |
|
Not
Available |
|
Not
Available |
Not
Available |
|
120"
x 160" |
200" |
2.0" |
|
|
Not
Available |
HD (16:9) Format Screens
Recommended for use with native 16:9 projectors such as those with WXGA, 720p and 1080p resolution. |
Viewing Area
|
Diagonal
|
(+) Black Border |
|
|
|
|
|
|
45" x 80" |
92" |
2.0" |
|
|
|
|
|
|
52" x 92" |
106" |
2.0" |
|
|
|
|
|
|
54" x 96" |
110" |
2.0" |
|
|
|
|
|
|
58"
x 104" |
119" |
2.0" |
|
|
|
|
|
|
65"
x 116" |
133" |
2.0" |
|
|
|
|
|
|
78"
x 139" |
159" |
2.0" |
|
|
|
|
|
|
Square Format Screens
Recommended when many different format projectors will be used, especially 35mm slide and overhead projectors. |
Screen Size |
Diagonal |
(-) Black Border |
|
|
|
|
|
|
50" x 50" |
- |
1.0" |
|
|
|
|
|
|
60" x 60" |
- |
1.25" |
|
|
|
|
|
|
70" x 70" |
- |
1.25" |
|
|
|
|
|
|
84" x 84" |
- |
1.25" |
|
|
|
|
|
|
8'
x 8' |
- |
2.0" |
|
|
|
|
|
|
9'
x 9' |
- |
2.0" |
|
Not
Available |
|
Not
Available |
Not
Available |
|
10'
x 10' |
- |
2.0" |
|
|
|
12'
x 12' |
- |
2.0" |
|
|
Not
Available |
Miscellaneous Format Screens
Recommended when many different format projectors will be used.
Not recommended for dedicated video projector applications because none of these screens conform to any video projector image format. |
Screen Size
|
Diagonal
|
(-) Black Border |
|
|
|
|
|
|
6'
x 8' |
- |
2.0" |
|
|
|
|
|
|
7'
x 9' |
- |
2.0" |
|
|
|
|
|
|
8'
x 10' |
- |
2.0" |
|
|
|
|
|
|
9'
x 12' |
- |
2.0" |
|
Not
Available |
|
Not
Available |
Not
Available |
|
|
|
Options and Accessories that must be specified at time of order |
|
|

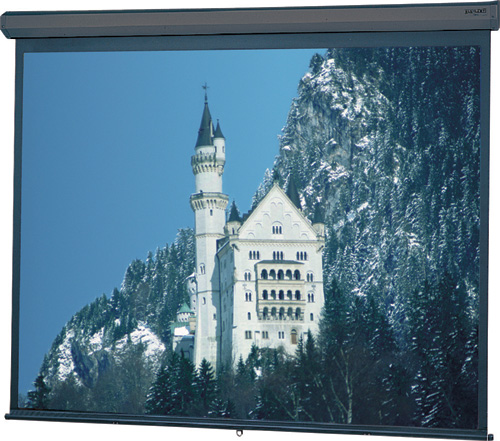

Optional Black Case (the standard color is white). |
|
|

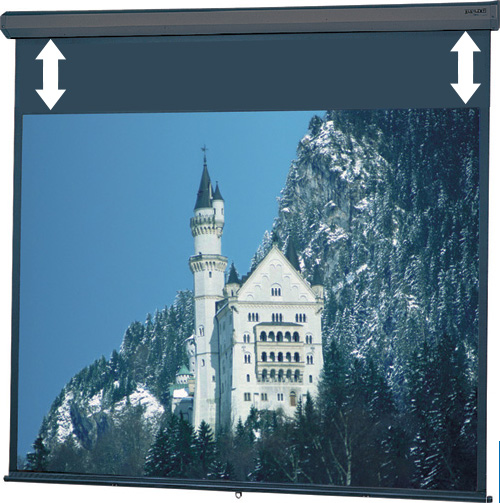

Extra Black Drop per square foot (allows screen to line up with projected image in rooms with large ceilings). |
|
| Extra Black Drop for High Power screens only. |
|
|

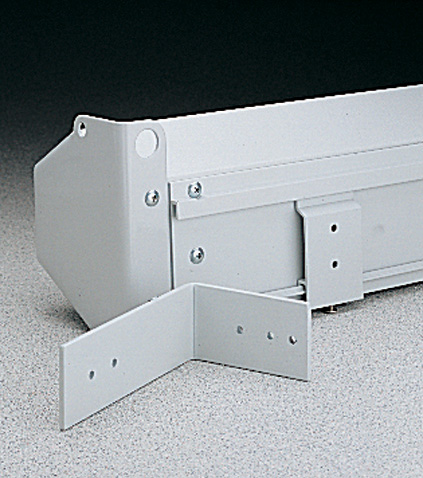

White Floating Mounting Bracket. Allows screen mounting points to shift. This is typically used so that the screen can mount to existing structural elements such as studs or ceiling joists. |
|
|

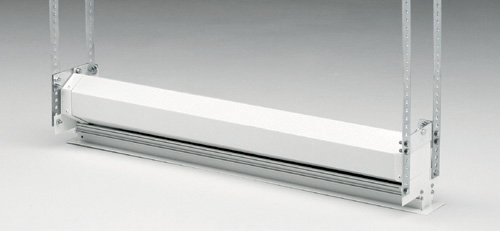

Ceiling Trim Kit. Allows screen to be recessed into ceiling, for screens under 8' wide. |
|
| Ceiling Trim Kit for screens 8'-10' wide. |
|
| Ceiling Trim Kit for screens 10-12' wide (not for 12x12). |
|
|
|
|
White No. 6 Wall Brackets, pair. Brackets extend 6" from wall and length cannot be adjusted. |
|
|
Black No. 6 Wall Brackets, pair. Brackets extend 6" from wall and length cannot be adjusted. |
|
|
White No. 11 Wall Brackets, pair. Brackets extend 10" or 14" from wall depending on which side is fixed to wall. Brackets cannot be adjusted once they are fixed to the wall. |
|
|
Black No. 11 Wall Brackets, pair. Brackets extend 10" or 14" from wall depending on which side is fixed to wall. Brackets cannot be adjusted once they are fixed to the wall. |
|
|
White No. 23 Wall Brackets, pair. Brackets extend 14 1/2" - 24" from wall. Brackets can be adjusted by moving the upper arm forward or backward along the bracket piece. Arms are secured to bracket using bolts and wing nuts. |
|
|
Black No. 23 Wall Brackets, pair. Brackets extend 14 1/2" - 24" from wall. Brackets can be adjusted by moving the upper arm forward or backward along the bracket piece. Arms are secured to bracket using bolts and wing nuts. |
|
|
|
|
|
Tilt Lock. Eliminates keystoning when screen is tied back to removable hook. Hook is magnetically attached to mounting plate which has an adhesive back. |
|
| Tilt Lock (Carton of 24). |
|
|
|
Black T-Bar Scissor Clips, pair. Attaches screen quickly and easily to dropped ceiling "T" rails. |
|
| Black T-Bar Scissor Clips (carton of 12 pairs). |
|
|
|
White T-Bar Scissor Clips, pair. Attaches screen quickly and easily to dropped ceiling "T" rails. |
|
| White T-Bar Scissor Clips (carton of 12 pairs). |
|
|
Pull Rod. Allows user to reach pull bail on screens which are mounted out of reach. Rod is 38" long and includes handle. |
|
