| Jumbo
2000™ TV Ceiling Mount |
||||
 |
Ideal
for commercial and educational applications, the Jumbo 2000 ceiling mount offers an attractive low profile design. Integrated front and top rollout protection hardware allow for safe tilt up to 30°. Quick Connect assembly makes for an easy installation. Add an Etension Column as pictured (sold separately) to extend the TV below the supporting ceiling.
EXTENSION COLUMN SOLD SEPARATELY. |
|||
| Features: | |
Models available for 13" to 42" standard TVs and monitors |
360° swivel action |
|
Easy assembly and quick connect
installation |
Top and front roll out protection |
|
Adjustable tilt (0° to 30°) for optimal viewing |
Black fused epoxy finish |

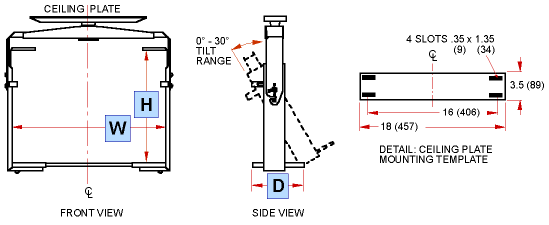

| TECHNICAL DATA: |
 |
| JUMBO 2000 MOUNTS FOR STANDARD MONITORS | ||||||||
| MODEL# | MONITOR **SIZE |
W | H | D | WEIGHT | SHIPPING WEIGHT |
||
| JMC 2630 | 13"-17" | 13.5-21 (343-533) |
11.4-17.7 (290-450) |
10 (254) |
27.3 (12.5) |
34 (15.4) |
||
| JMC 2640 | 19"-21" | 18-26 (457-660) |
14.2-20.4 (361-518) |
10 (254) |
30 (13.7) |
37 (16.8) |
||
| JMC 2650 | 25"-27" | 24-31 (610-787) |
19.2-25.4 (488-645) |
10 (254) |
35.2 (16) |
42 (19) |
||
| JMC 2660 | 30"-36" | 29-36 (737-914) |
24.2-30.4 (614-772) |
14 (356) |
36.2 (16.5) |
49 (22.2) |
||
| JMC 2670 | 37"-42" | 34-41.3 (864-1050) |
29.2-35.4 (742-900) |
14 (356) |
49.8 (22.7) |
56 (25.4) |
||
| NOTES: | |
| ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) | |
| MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY | |
| MAX. LOAD FOR ALL MODELS: 300 LBS. (136 KG.) | |
| DEPTH OF MONITOR WILL EXCEED DEPTH OF SUPPORT TRAY [D] AND WILL OVERHANG THE BACK EDGE. | |
| ** | MONITOR SIZE USED AS A GENERAL GUIDE. TO DETERMINE CORRECT MODEL TO ORDER MEASURE YOUR SET. |
| MODELS JMC 2660, AND 2670 SHIP IN TWO CARTONS | |

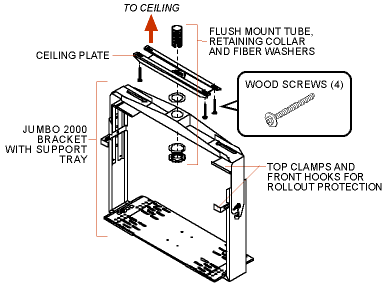

| COMPONENTS: |
 |
 |
