Jumbo

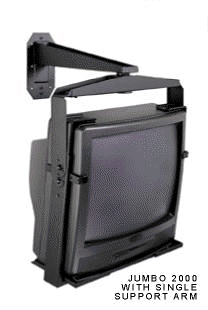

2000™ TV Wall Mount Ideal for commercial and educational applications, the Jumbo 2000 wall mount offers an attractive low profile design. Integrated front and top rollout protection hardware allow for safe tilt up to 30°. Quick connect assembly makes for an easy installation.
|
||||
| Features: | |
Models available for 13" to 42" standard TVs and monitors |
360° swivel action |
|
Models available for 25" to 42" wide aspect ratio (16:9) sets |
Top and front roll out protection |
|
Easy assembly and quick connect
installation |
Exceptional strength and stability |
|
Adjustable tilt (0O to 30°) for optimal viewing |
Black fused epoxy finish |

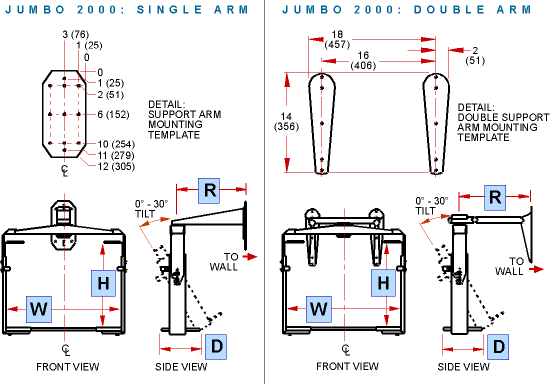

| TECHNICAL DATA: |
 |
| SINGLE ARM JUMBO 2000 MOUNTS FOR STANDARD MONITORS | |||||||||
| MODEL# | MONITOR **SIZE |
W | H | D | R | WEIGHT | SHIPPING WEIGHT |
||
| JMW 2630 | 13"-17" | 13.5-21 (343-533) |
11.4-17.7 (290-450) |
10 (254) |
18 (457) |
30.5 (13.8) |
37 (16.8) |
||
| JMW 2640 | 19"-21" | 18-26 (457-660) |
14.2-20.4 (361-518) |
10 (254) |
18 (457) |
34.2 (15.5) |
41 (18.6) |
||
| JMW 2650 | 25"-27" | 24-31 (610-787) |
19.2-25.4 (488-645) |
10 (254) |
22.5 (572) |
40.2 (18.2) |
47 (21.3) |
||
| DOUBLE ARM JUMBO 2000 MOUNTS FOR STANDARD MONITORS | |||||||||
| MODEL# | MONITOR **SIZE |
W | H | D | R | WEIGHT | SHIPPING WEIGHT |
||
| JMW 2650H | 25"-27" | 24-31 (610-787) |
19.2-25.4 (488-645) |
10 (254) |
25 (640) |
55 (25) |
|||
| JMW 2660H | 30"-36" | 29-36 (737-914) |
24.2-30.4 (614-772) |
14 (356) |
25 (640) |
60 (27.2) |
|||
| JMW 2670H | 37"-42" | 34-41.3 (864-1050) |
29.2-35.4 (742-900) |
14 (356) |
25 (640) |
67 (30.4) |
|||
| LOAD RATINGS | |||
| WALL ARM TYPE | WALL TYPE | REQUIRED ANCHORS | MAX. LOAD |
| SINGLE | WOOD STUD OR WOOD POST | WOOD SCREWS (INCLUDED) | 125 LB. (57 KG.) |
| SINGLE | CONCRETE OR CONCRETE BLOCK | ***CONCRETE ANCHORS | 150 LB. (68 KG.) |
| DOUBLE | WOOD STUD OR WOOD POST | WOOD SCREWS (INCLUDED) | 300 LB. (137 KG.) |
| DOUBLE | CONCRETE OR CONCRETE BLOCK | ***CONCRETE ANCHORS | 300 LB. (137 KG.) |
| NOTES: | |
| ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) | |
| MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY | |
| DEPTH OF MONITOR WILL EXCEED DEPTH OF SUPPORT TRAY [D] AND WILL OVERHANG THE BACK EDGE. | |
| REACH [R] = DISTANCE FROM WALL TO MONITOR PIVOT POINT. | |
| ** | MONITOR SIZE USED AS A GENERAL GUIDE. TO DETERMINE CORRECT MODEL TO ORDER MEASURE YOUR SET. |
| *** | FOR SINGLE ARM MODELS ORDER ONE #ACC 204, FOR DOUBLE ARM MODELS ORDER TWO #ACC 203 |
| Models JMW 2630, JMW 2640, JMW 2650, JMW 2655 are pre-approved by OSHPD for seismic safety compliance for use in hospitals and state structures in accordance with California Code of Regulations, Title 24. |

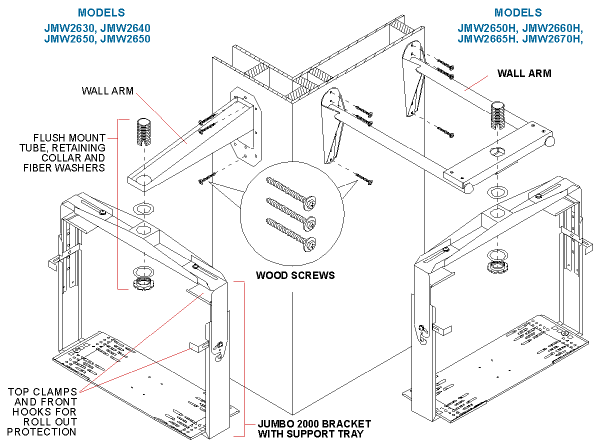

| COMPONENTS: |
 |
 |
