| Wall Back-Up Plate model WSP 415 | |
 |
The Wall Back-Up Plate mounts opposite wall side of the TV bracket wall plate. For concrete and concrete block wall installations. Hardware is not included. Features:
|
| Wall Back-Up Plate model WSP 415 | |
| |
The Wall Back-Up Plate mounts opposite wall side of the TV bracket wall plate. For concrete and concrete block wall installations. Hardware is not included. Features:
|

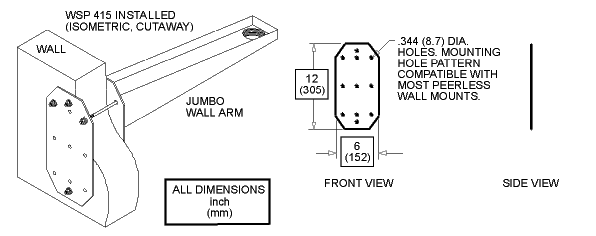

| Wall Back-Up Plate TECHNICAL DATA |
 |
NOTES: ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) MATERIAL: 11 GAGE COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY MAX. LOAD: GO BY MAX. LOAD RATING OF TV MOUNT BEING ATTACHED COMPATIBILITY: JUMBO 2000 SINGLE ARM WALL MOUNTS |
| ARCHITECT
SPECIFICATIONS The Wall Plate shall be a Peerless Model WSP 415. It shall be constructed of 11 gage cold rolled steel and finished in black fused epoxy. Installation shall be done according to the instructions provided by the manufacturer. |
 |
Heavy duty steel construction
