Triple Stud Wall Plate
For attaching a Peerless Double Arm Jumbo Wall Mount to a metal stud wall
Triple Stud Wall Plate - Illustration Each Triple Stud External Wall Plate distributes the *load across three studs to provide the required support for a Peerless heavy duty (double wall arm) Jumbo Mount. Three sizes are available for walls with metal studs on 16", 20" or 24" centers.

Features:
Two electrical box knockouts
Heavy gage steel construction
White fused epoxy finish
Mounting hardware included

* Each Triple Stud Wall Plate can safely support a maximum load of 125 lbs. (57 kg.). The combined weight of the TV mount, VCR mount(s) and all components is not to exceed the maximum load.

green line

Triple Stud Wall Plate TECHNICAL DATA

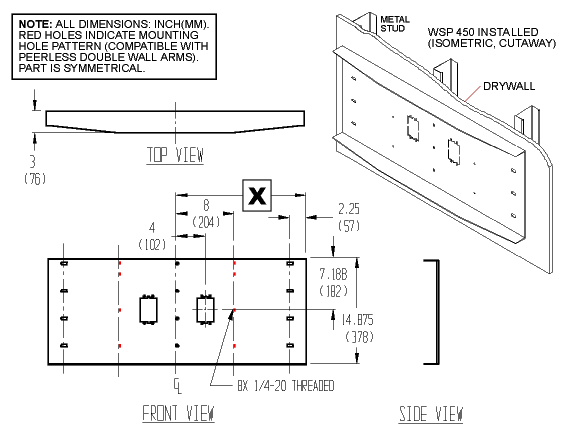

Triple Stud Wall Plate - dimensions
MODEL# X DISTANCE, CENTER TO CENTER, OF SUPPORTING WALL STUDS WEIGHT SHIP.
WEIGHT
MAX.
LOAD
WSP450W 18
(457)
16
(406)
22
(10)
23
(10.4)
125
(57)

NOTES:

ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.)
MATERIAL: 12 GAGE COLD ROLLED STEEL, FINISH: BLACK OR WHITE ("W" MODELS) FUSED EPOXY
MAX. LOAD = COMBINED WEIGHT OF ALL ATTACHED HARDWARE AND COMPONENTS


COMPATIBILITY:
JUMBO 2000 WALL MOUNTS WITH DOUBLE WALL ARMS (ANY MODEL ENDING IN "H")


ARCHITECT SPECIFICATIONS
The wall plate shall be a Peerless model ____ Triple Stud Wall Plate for Metal Stud Walls. It shall be used in combination with a Peerless Jumbo 2000 wall mount model _____. It shall include all mounting hardware for attachment to a metal stud wall and all mounting hardware for attachment of the Peerless Jumbo 2000 wall mount. It shall be constructed of 12 gage cold rolled steel and finished in scratch resistant black or white fused epoxy. Installation shall be done according to the instructions provided by the manufacturer.

green line

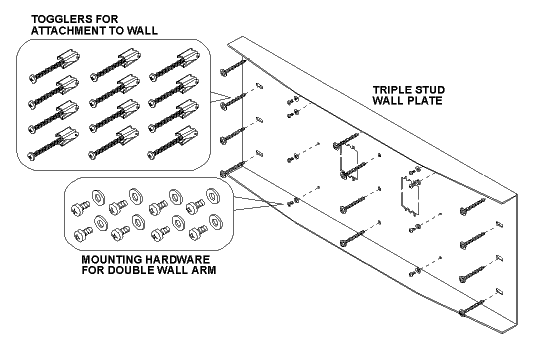

COMPONENTS
included with a Triple Stud Wall Plate
Triple Stud Wall Plate - components
