Sanyo "M" Class Projectors


The Sanyo "M" Class excels for applications requiring throw ratios outside the range of standard zoom lenses with 4500-6000 Lumens light output. When compared to most other interchangeable lens projectors, the “M” Class, with its consistently low f-stop lens characteristics, provides high light output over the range of possible throw ratios. This makes it a great choice for rental and staging companies and fixed installations where non-standard throw ratios are required. Other features such as corner keystone adjustment, mechanical shutter and low maintenance design, makes the Sanyo “M” Class the projector of choice in the mid-price range.

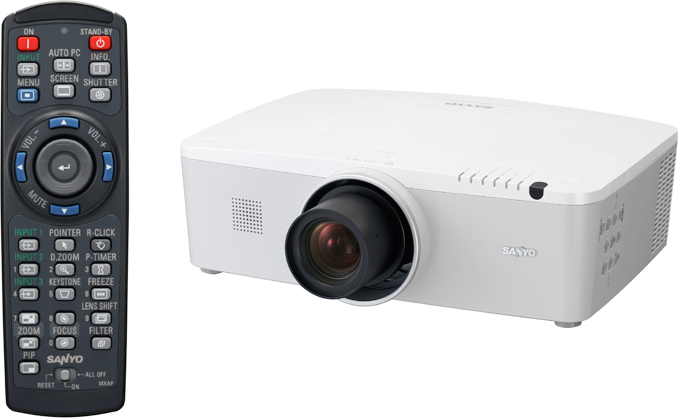

M Class Projector

Flexible Installation. These units are equipped with power vertical and horizontal lens shift/keystone correction. Also 5 lens options along with the standard lens make this a very flexible projector.

Low Maintenance. The Active Maintenance Filter (AMF) system (included on all models except the PLC-WM4500/L which uses a single long-life air filter) detects air blockage or clogs, then advances the filter reel to the next clean filter on the cartridge. Each cartridge carries 10 filter slides which dramatically lowers maintenance.

Durable Inorganic Optical System (D.I.O.S.). This Inorganic Optical LCD panel system provides a more durable projector to handle many applications for high-quality, high contrast image presentations.

Mechanical Shutter System. A mechanical shutter system on all models except the PLC-WM4500/L completely blocks all light output from the projector without shutting off the lamp. This eliminates the distracting light source when a presenter is facing the audience while in front of the projector.

Picture in Picture (P in P), Picture by Picture (P by P). This function make it possible to project two different sources with one projector. Video conference, satellite lecture type of application should be suitable with using this function.

Closed Caption. Closed captioning provides the audio portion of a television signal as printed words on the projected screen - helpful for deaf and hard of hearing individuals.

Warranty. Three years parts and labor; 90 days original lamp. Quick Repair Program under warranty.

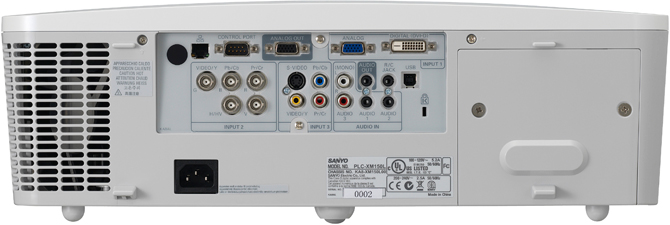

PLC-XM100/L and PLCXM150/L Connection Panel

(PLC-XM100S/L and PLCXM150S/L Connection Panel)

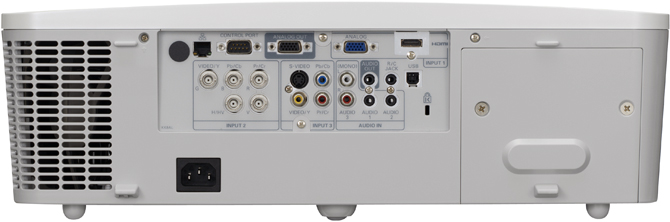

PLC-WM4500/L, PLC-WM5500/L, and PLC-ZM5000/L Connection Panel

(PLC-WM4500S/L, PLC-WM5500S/L, and PLC-ZM5000L Connection Panel)

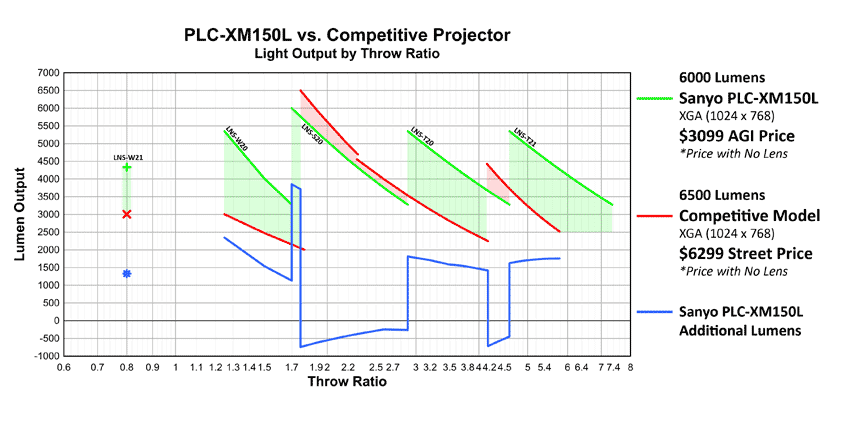

Light Output by Throw Ratio

"M" Class Projectors
  PLC-XM100S
PLC-XM100L
PLC-XM150S
PLC-XM150L
PLC-WM4500S
PLC-WM4500L
PLC-WM5500S
PLC-WM5500L
PLC-ZM5000S
PLC-ZM5000L
Brightness 5000
ANSI Lumens
6000
ANSI Lumens
4500
ANSI Lumens
5500
ANSI Lumens
5000
ANSI Lumens
Native
Resolution
1024 x 768 1280 x 800 1920 x 1200
Throw Ratio 1.7-2.89:1
(Optional Std Lens)

Other Lenses Available
1.7-2.8:1
(Optional Std Lens)

Other Lenses Available
1.64-2.79:1
(Optional Std Lens)

Other Lenses Available
Links
Price PLC-XM100S:
Call or Email for Price
PLC-XM100L:
Call or Email for Price
PLC-XM150S:
Call or Email for Price
PLC-XM150L:
$2,085
Add to Cart

PLC-WM4500S:
Call or Email for Price
PLC-WM4500L:
Call or Email for Price
PLC-WM5500S:
Call or Email for Price
PLC-WM5500L:
Call or Email for Price
PLC-ZM500S:
Call or Email for Price
PLC-ZM500L:
Call or Email for Price

"M" Class Lenses
  LNS-W21
LNS-W21
On Axis
Ultra Wide Angle
LNS-W20
LNS-W20
Wide Angle
Zoom
LNS-S20
LNS-S20
Wide Angle
Zoom
LNS-T20
LNS-T20
Standard
Zoom
LNS-T21
LNS-T21
Short Tele
Zoom
PLC-XM100S

PLC-XM100L

PLC-XM150S

PLC-XM150L
0.8:1
Throw Ratio

f/stop: 2.0
1.25-1.7:1
Throw Ratio

f/stop: 1.8-2.3
1.7-2.89:1
Throw Ratio

f/stop: 1.7-2.3
2.89-4.6:1
Throw Ratio

f/stop: 1.8-2.3
4.6-7.36:1
Throw Ratio

f/stop: 1.8-2.3
PLC-WM4500S

PLC-WM4500L

PLC-WM5500S

PLC-WM5500L
0.8:1
Throw Ratio

f/stop: 2.0
1.3-1.7:1
Throw Ratio

f/stop: 1.8-2.3
1.7-2.8:1
Throw Ratio

f/stop: 1.7-2.3
2.8-4.6:1
Throw Ratio

f/stop: 1.8-2.3
4.6-7.2:1
Throw Ratio

f/stop: 1.8-2.3
PLC-ZM5000S

PLC-ZM5000L
0.8:1
Throw Ratio

f/stop: 2.0
1.3-1.7:1
Throw Ratio

f/stop: 1.8-2.3
1.7-2.8:1
Throw Ratio

f/stop: 1.7-2.23
2.8-4.6:1
Throw Ratio

f/stop: 1.8-2.3
4.6-7.2:1
Throw Ratio

f/stop: 1.8-2.3

$1,625
Add to Cart

$1,479
Add to Cart

$475
Add to Cart

$1,525
Add to Cart

$1,539
Add to Cart


Accessories
POA-PN03C PJ-Net Organizer Plus with Camera for all "M" Class projectors. Adds wireless imaging and more to your "M" Class projector. POA-PN03C.

Manual PDF Document
$499Add to Cart
6103469607 Replacement Lamp Assembly for PLC-WM5500/L, PLC-XM150/L, and PLC-ZM5000/L. 6103469607.
$325Add to Cart
6103475158 Replacement Lamp Assembly for PLC-WM4500/L, and PLC-XM100/L. 6103475158.
$299Add to Cart
PO-FIL80 Replacement AMF Cartridge for PLC-WM5500/L, PLC-XM100/L, PLC-XM150/L, and PLC-ZM5000/L. POA-FIL080.
$67Add to Cart
POA-FIL081 Replacement Long-Life Air Filter for PLC-WM4500/L. POA-FIL081.
$44Add to Cart
6451030245 Wireless IR Remote for PLC-WM4500/L. 6451030245.
$80Add to Cart
6451030191 Wireless IR Remote for PLC-WM5500/L. 6451030191.
$80Add to Cart
6450974069 Wireless IR Remote for PLC-XM100/XM150. 6450974069.
$79Add to Cart
6451037282 Wireless IR Remote for PLC-ZM5000L. 6451037282.
$59Add to Cart

Sanyo

We can provide expert advice on the products we sell and we also offer free technical support to our customers.
