Large Venue F80/F82


The ProjectionDesign F80/F82 series of 3-Chip DLP® projectors is their top professional model. This series is designed for large screen imaging in auditoriums, staging, and other applications that require the ultimate in detail and reliability.
F82
View Larger Image

B-Stock F80 WUXGA

8500 Lumens
1900 x 1200 Native Resolution
3-Chip DLP® Technology
15,000:1 Contrast Ratio
5-BNC, VGA, DVI-D, HDMI 1.3 and More Connections
23.78" x 9.84" x 19.88" (WxHxD); 52.91 Lbs.

1-Year Warranty

F80
View Larger Image

F82 WUXGA or F82 1080p

10,000 Lumens
1900 x 1200 or 1920 x 1080 Native Resolution
3-Chip DLP® Technology
15,000:1 Contrast Ratio
5-BNC, VGA, DVI-D, HDMI 1.3 and More Connections
23.78" x 9.84" x 19.88" (WxHxD); 52.91 Lbs.

2-Year Warranty



High Resolution 3-Chip DLP. 3-chip DLP technology provides a formidable on-screen image. With a wealth of brightness from the 3-chip engine’s high efficiency, and many options for accurately adjusting color and brightness performance, the F80/F82 series can be tailored to suit a wide range of applications, focusing on large screen video centric displays and events.

The DLP technology from Texas Instruments® is chosen for its unmatched reliability performance, and its unique coupling with long lasting image quality. With a widely recognized and proven reliability record, and high brightness and contrast, all whilst displaying utterly natural colors, it is the obvious choice for heavy duty applications, or applications that are that run continuously, or are mission critical. Independent testing has proven DLP technology to be the most reliable of all microdisplays; not degrading when subjected to UV light, inherent in all projectors. Unlike competing technologies, showing severe image quality degradation after only a few thousand hours, DLP technology remains constant over hundreds of thousands of hours.

Precision Projection Lens Optics. The F80/F82 series features a wide range of custom made, precision ground projection lenses for the best quality images, and most secure and reliable setup. Key features include infinitely adjustable IRIS and aperture settings, and motorized zoom, focus and shift with memory for use in multiple settings with with programmed calibration. Most importantly, every single lens uses Low Dispersion (LD) and aspherical glass elements for high quality focusing and sharpness, as well as high optical interfield contrast, resulting in very high perceived image quality. The range of lenses span from an an ultra wide angle 0.8:1, to a super tele zoom ending at 6.5:1.

Advanced Color Optical Processing. The F80/F82 series projectors feature a new and revolutionary ProjectionDesign optical color processing technology. By combining fixed and motorized optical filters for each color channel, the projector can be optically calibrated with near infinite accuracy. it also means that by the flick of a switch, you can change the projected color gamut from standard computer graphics optimized, to either REC709 (High Definition programming) or a P3 color gamut that comply with strict DCI color specifications. All this without any loss of bit depth, as the compensation is purely optical, and not electronic. Unlike competing projectors, where color calibration is based upon a simple yellow notch filter to change the green point of the picture, or simply by changing electronic values, ACOP is vastly superior in all aspects.

RealColor Color Calibration. Each F80/F82 series projector is uniquely characterized and calibrated during its manufacture. Unique optical performance values are recorded and matched to the electronics processing in order to secure perfect on-site calibration. With RealColor, it is possible to match any number of projectors, and ensure they all project the same primaries and gray scale, without going through a very complicated process.

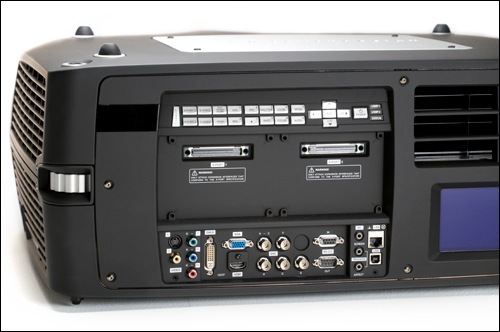

F80/F82 Series Input Panel

Low Total Cost of Ownership. Thanks to its complex and robust build and construction, the F80/F82 series requires very little maintenance and in-life servicing. There are no user serviceable parts inside, and it does not have any filters or other parts that need periodical replacement. That means it does not require a costly and high frequency maintenance contract. Similarly, and compared to similarly performing Xenon high power lamps, lamp replacement cost is low, and typical lamp life is long. In total, a very cost effective projector over time, resulting in a very low cost of ownership.

Designed for Full 24/7 Operation. All ProjectionDesign professional projectors feature full 24/7 operation warranties. That means they are designed to operate continuously. There is no fine print. Designing for 24/7 operation requires a lot of attention to detail. Some technologies are better than others when it comes to withstand the abuse of time. We use only components that have predictable behaviors, for instance fans, color wheel motors, and electronic components that are designed by their respective manufacturers to do the same - withstand time. There are no off-the-shelf components. That is why we also closely monitor the creation of every detail, apply dedicated thermal management, and use specific materials in all parts of the process.

Projection Design

We can provide expert advice on the products we sell and we also offer free technical support to our customers.




F80 BrochurePDF Document

F82 BrochurePDF Document

F80/F82 ManualPDF Document
B-Stock F80 WUXGA
(Lens not Included),
$19,950 Add to Cart



F82 1080p,
(Lens not Included),
Call or Email for Price


F82 WUXGA,
(Lens not Included),
Call or Email for Price

Lenses

EN22 On Axis Ultra Wide Angle Lens.
0.74:1 Throw Ratio
f/stop: 2.5

$4,615Add to Cart

column


EN23 Wide Angle Zoom Lens.
1.20-1.70:1 Throw Ratio
f/stop: 2.5-2.86

$4,780Add to Cart

column


EN21 Standard Zoom Lens.
1.70-2.55:1 Throw Ratio
f/stop: 2.6-2.81

$2,880Add to Cart

column


EN24 Short Tele Zoom Lens.
2.50-4.00:1 Throw Ratio
f/stop: 2.6-3.13

$4,780Add to Cart

column


EN26 Long Tele Zoom Lens.
3.90-6.24:1 Throw Ratio
f/stop: 2.6-3.40

$4,780Add to Cart

column


Accessories

400-0700-00. 330W UHP Replacement Lamp Asembly for F80/F80 series.

Call or Email for Price
column
