Barco R9855910

Barco Touch Panel for DPxK DCI Projector
Part #: 0600-4530    Mfr #: R9855910

Barco R9855910

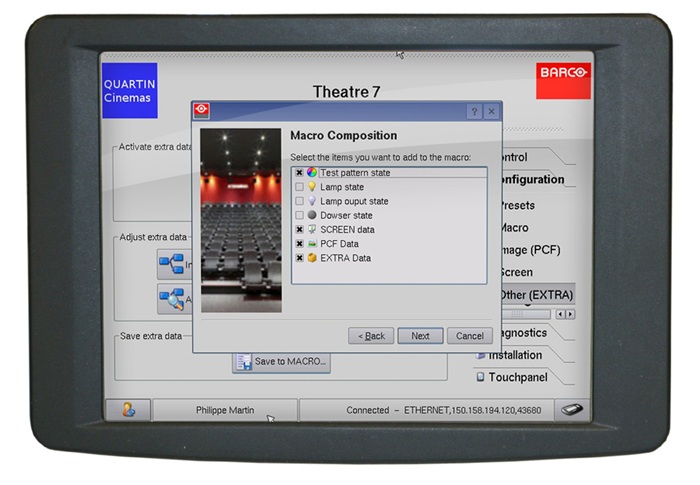

Enhancing the overall ease-of-use of the DP series, Barco introduces the new Communicator Touch Panel as a standard projector component across all models. Designed for multi-user command and control, the Communicator enables users to learn quickly and operate efficiently - using an elegant and flexible touchscreen interface. The interface's commonality means that operators can intuitively use any model in the product line, without restriction, and its user-friendly nature translates directly into a short and enjoyable learning curve.

  • Full version of Communicator software provided "as standard"
  • Embedded PC version on the DP-1500, DP-2000 and DP-3000
  • "Touch" PC component is removable, enabling customers to use their own SMS (Screen Management System) display
  • Elementary redundant keypad is available on the projector
  • Provides "fingertip" control over the projector's lamp, dowser, test patterns, diagnostics, presets, ACS-2048, and server
  • Optional integration of server GUI on the embedded PC
  • Optional laptop "Communicator" version is available
  • Cinema facility administrator defines user level and password for all operators
  • Based on user login, software provides "trace" capabilities in case projector mistreatment
  • Installers and "freelancers" can follow a Barco "DP Series Operations" training course. Upon successful completion, personal user login is issued.

PC touch panel:  Full version of Communicator software provided as standard on the PC touch panel. Available for DP-1500, DP-2000, DP-3000 and via an upgrade for DP100 and DP90

System interfaces:  USB ports x2; RS232 x1; Ethernet 10/100 Mb/s

LCD panel:  8.4" viewable image size;  Active display area: 800x600 pixels; Dimensions 170.4H x 127.8V

Active input selection:  Control of active projector input and total configuration of all related parameters

Macros:  Automatic save to macro; Creation of macros

Projector preset activation:  Activate the stored projector preset configurations

Projector preset configuration:  Full control and configuration of the projector presets

Projector diagnostics:  Access to projector diagnostics and diagnostics log file. Detailed diagnostics on fans speeds, all relevant voltages and internal temperatues

Graphical configuration of resizing and masking:  WYSIWYG interface for projector resizing and masking capabilities

CLO calibration:  Calibration and read out of the CLO

Extended test and diagnostics utilities:  Utilities to test ethernet connections, automation system, input signal errors

Project color calibration capabilities:  Color calibration utilities to calibrate your projector on site

Server monitoring:  Monitor the server communication and commands for subtitle and metadata (equals Cine Canvas)

Look-up table management:  Access and activate color, gamma and 3D look-up tables

User management: Administrator defines user level and password for all operators
