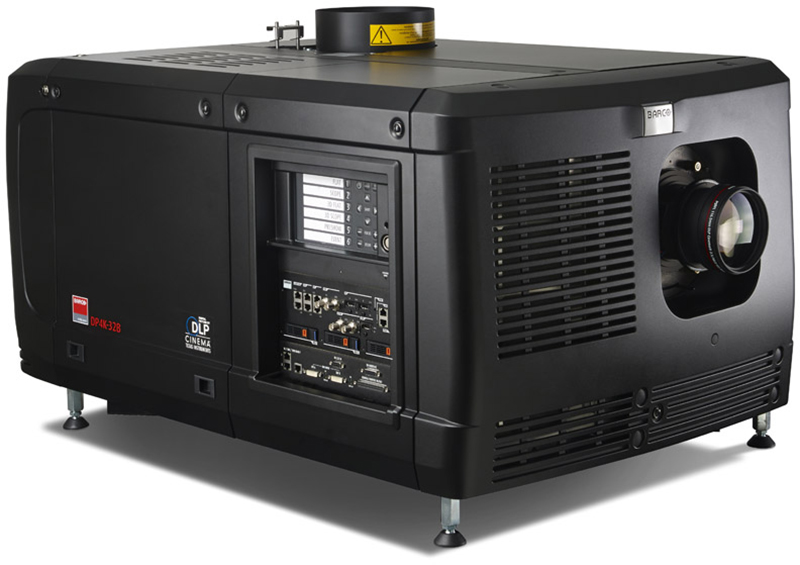

Barco DP2K-23B /2

3-DLP DCI Projector, 2K, 24,500L, No HD-SDI, B-Stock, 2 Year Warranty
Part #: 0600-4810-UA    Mfr #: R90059012

Barco DP2K-23B /2

$30,829.00
Price
  • Brightest projector in its class
  • Lowest cost of ownership thanks to integrated Barco Alchemy technology, lowest lamp operating cost, re-usable filters, low maintenance, etc.
  • Includes storage
  • Maximum ease-of-use through intuitive ‘Barco Web Commander’ screen management system, running via a web browser
  • Barco Web Commander also runs on iOS and Android tablets via the free ‘Barco CineMate’ app
  • Barco Communicator for simple configuration and updates of all modules in the projector
  • Long-term image quality and brightness thanks to proprietary sealed engine and advanced DMD cooling
  • Easy installation and maintenance thanks to proven modular design and common platform with DP2K C-series
Digital MicroMirror Device™ 3 x 1.2” DC2K dark metal devices
Native resolution 2048 x 1080 pixels
Housing Hermetically sealed DMDs and optical assembly
Lamp 1.2kW - 4kW (Xenon lamp)
Light output 24,500 lumens
Screen size Up to 23 m / 75ft wide
Contrast ratio 2,000:1
Prime lenses 1.25 - 1.45
  1.4 - 2.05
  1.6 - 2.35
  1.8 - 2.8
  2.15 - 3.6
  2.8 - 5.5
Control I/O 3x Ethernet
  8x GPIO (DB 25)
  3D interface
  USB RS-232 interface (DB9)
Integrated Cinema Media Processor JPEG2000 2K & 4K DCI play-out
  High Frame Rates 3D up to 120fps (60fps per eye)
  JPEG 2000 bit-rates up to 625Mbps
  Dual-channel color-correction
  MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
  H.264**
  2x DisplayPort 1.1a
  2x 3G-SDI inputs*
  1x multimedia HDMI 1.4a input 2D and PCM audio (BluRay 3D / 4K in testing)*
  16x AES/EBU audio channels (2x RJ45)
  8x GPI, 8x GPO (4x RJ45)
  2x ETH for content connectivity & ingest
  2x front-accessible USB 3.0 for fast ingest
  2x front-accessible USB 2.0

  * in testing
  ** software roadmap
Integrated storage 1.9TB effective storage (RAID-5)
  3x 1TB Hot-swappable 2.5" hard-drives
Barco Web Commander Projector Dashboard
  Projector Control Board
  Show Player/Editor/Scheduler
  Automation, 3D, Ingest
  Dynamic DCP playlists & intermission
  TMS integration
  Smart Projector Status
  Via HTML5 web-browsers including iOS & Android tablets
  Dual projector passive 3D
  Auro 11.1 decoding
Barco Communicator Projector installation & configuration
  Projector update & maintenance
Projector diagnostics via Integrated Media Server
  via Communicator control software
  via SNMP agent
Power requirements 220V
Dimensions 604(H) x 754(W) x 1129(D) mm
  23.78(H) x 29.69(W) x 44.45(D) inch
  NB.: min. 5 cm of air inlet spacing required at the bottom of projector
Weight 133 kg (293 lbs)
Ambient temperature 35°C / 95°F Max.
Options Barco CineMate App (iOS & Android) - free
  ACS-2048
  3D add-ons
  Touch screen monitor, inc. Barco Commander & Communicator
  Pedestal
  CineCare Web
  Auro 11.1 license**
  Dual-projector license
  Live 3D***
  Ghostbusting***
  ** In testing
  *** Software roadmap
Options Barco CineMate App (iOS & Android) - free
  ACS-2048
  3D add-ons
  Touch screen monitor, inc. Barco Commander & Communicator
  Pedestal
  CineCare Web
  Auro 11.1 license**
  Dual-projector license
  Live 3D***
  Ghostbusting***
  ** In testing
  *** Software roadmap
