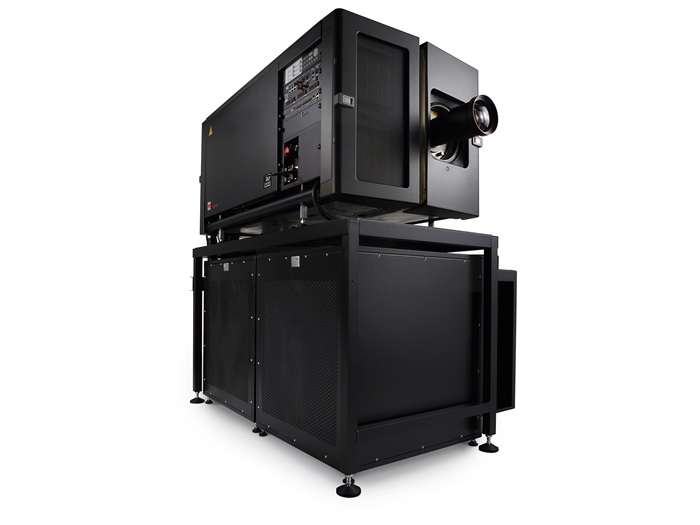

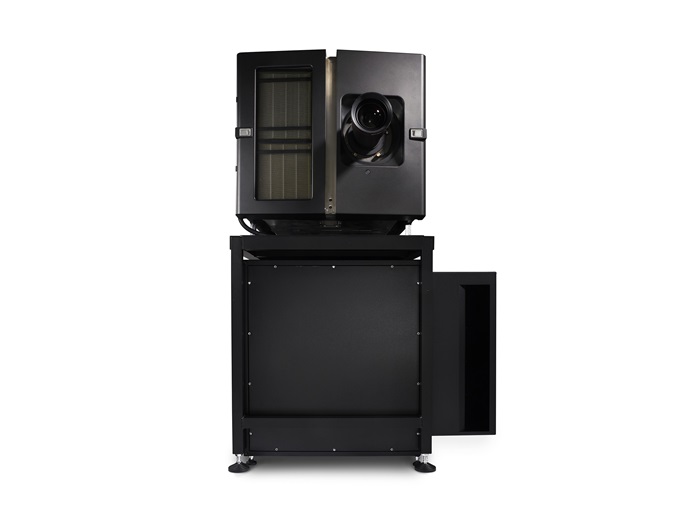

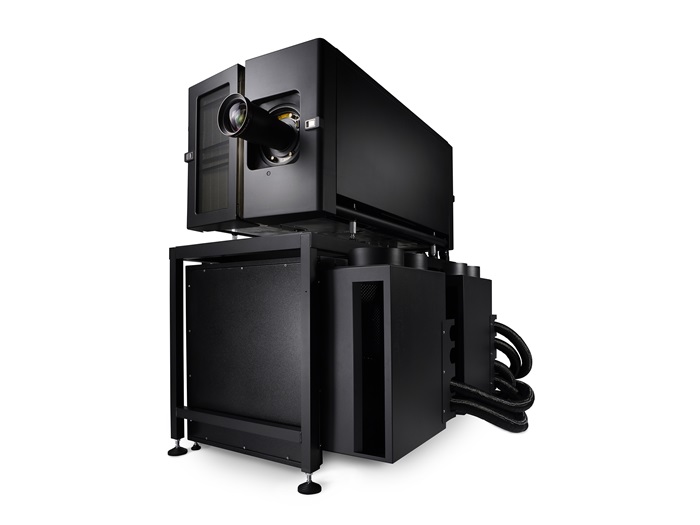

Barco DP4K-45L

3-DLP RGB Laser DCI Projector, 4098x2160 4K, 44,000 Lumens
Part #: 0600-4843    Mfr #: R9406520

Barco DP4K-45L

Overview

Ultra-bright 6P RGB laser cinema projector for premium large screens
  • Exceptional image quality
  • Stunning brightness
  • Simplified operations
  • Reduced operating expenses

Barco's state-of-the-art DP4K-45L laser cinema projector brings brilliant brightness levels and cutting-edge image quality to your large screen. In this way you can provide audiences with a stunning experience that's only available in theaters. The projector combines its exceptional image quality with simplified operations and reduced operating expenses.

Unprecedented image quality

The Barco DP4K-45L offers superior image quality with a remarkable brightness level, increased contrast ratio and vivid colors for a radically improved (3D) movie experience. The 2D and 3D images it displays are laser-sharp with superbly saturated and uniform colors. Geared with the unique Barco Alchemy Integrated Cinema Media Processor (ICMP), it's capable of showing 4K content at 60 frames per second and 3D movies in 4K.

Compare Models

Specifications

Resolution 4,096 x 2,160
Brightness Up to 44,000 lumens
Native contrast ratio 2,800:1 (typical) / 500:1 ANSI contrast (typical)
Prime lenses 1.13-1.65; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35
Long-term brightness stability Less than 20% decrease during a runtime of 30,000 hrs
Dimensions (WxLxH) Projector: 744 x 1,445 x 706 mm / 29.3 x 56.9 x 27.8 inches (with feet, no lens)

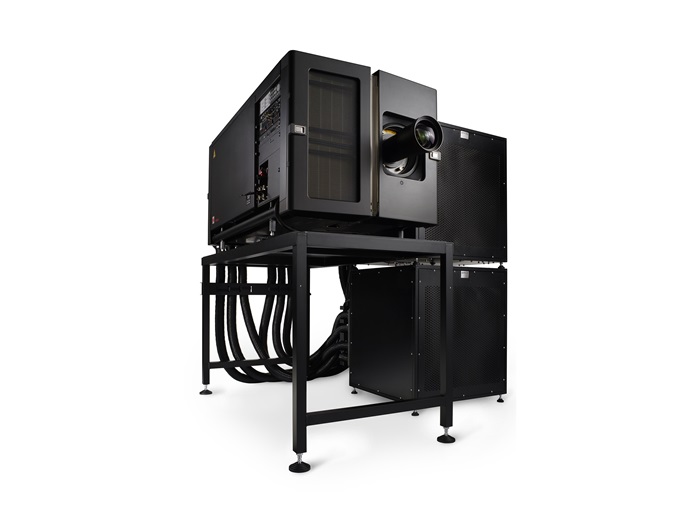

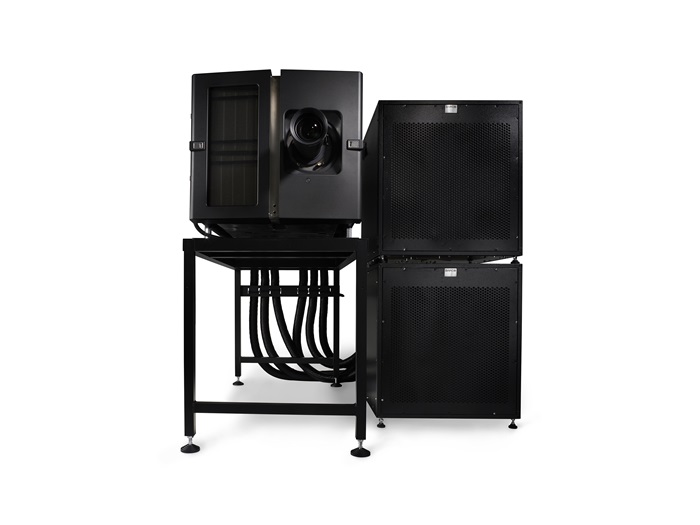

Two chillers, each with the following dimensions: 701 x 701 x 800 mm / 27.6 x 27.6 x 31.5 inches
Weight Projector: 235kg (~520lb)
Chillers: ~115kg (~250lb) per chiller (two chillers needed)
Cooling liquid hose length 2.5-5-10m (8.2-16.4-32.8ft)
Power requirements Projector:
200-240/346-415V 50-60Hz 16A 3W+N+PE (Y connection) / Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG /Circuit breaker range: 25A to 40A
200-240V 3W+PE 28A 50-60Hz (/\- connection) / Power cord size: 6 sq mm, 8AWG / Circuit breaker: 40A
Chillers:
230/400V 3W+N+PE 16A, 2.5 sq mm (Y connection) or 208V / 3W+PE (/\- connection) / Max. 16A per phase
Ambient temperature 30°C (86°F) Max. (projector and chillers)
Ambient humidity 75% Max. (projector and chillers)
Power consumption Projector @ full laser power: 5.2 kW (2D or Polarization 3D) / 2.8 kW (Barco Laser3D - 6P)
Chillers @ full laser power: 2.5 kW (2D or Polarization 3D) / 2.0 kW (Barco Laser3D - 6P)
Projector @ half laser power: 2.8 kW (2D or Polarization 3D) / 1.6 kW (Barco Laser3D - 6P)
Chillers @ half laser power: 2.0 kW (2D or Polarization 3D) / 1.5 kW (Barco Laser3D - 6P)
Media server Barco Alchemy ICMP included in the projector:
  • JPEG2000 2K & 4K DCI play-out
  • High Frame Rates 3D up to 120fps (60fps per eye)
  • 2x Displayport
  • 2x 3G-SDI inputs
  • 1x HDMI 1.4a input 2D and PCM audio / 4K 24fps
  • 16x AES/EBU audio channels (2x RJ45)
3D systems Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses (Dolby3D glasses cannot be reused)
Active glasses systems
Polarization recuperation systems
DCI Projector + Barco Alchemy ICMP DCI CTP 1.2 certified
Safety class Class 1, RG 3
Certifications CE; ETL/UL/FCC
