• Spectacular, seamless video walls with 3.5mm ultra-narrow bezel-to-bezel and anti-glare surface panel
• Ease of use with built-in USB media player and new Video Playback Synchronization function
• Operation flexibility with free Video Wall Manager software and Auto Camera Calibration Kit
• The LFV60U Series is equipped with a variety of signal input terminals - two HDMI, DVI-D and USB.
• High reliability with Failover and Failback functions for uninterrupted digital signage

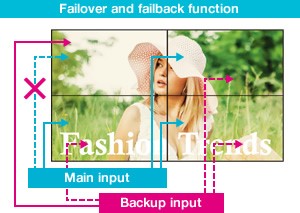

  When the signals are interrupted in a conventional display, the display image simply remains blank. The Failover and Failback functions immediately switch signals when the video signal is interrupted so the image continues uninterrupted.  If the main video and audio signals are interrupted, the system immediately switches to alternative signals. This makes it ideal for mission critical control rooms and surveillance centers.

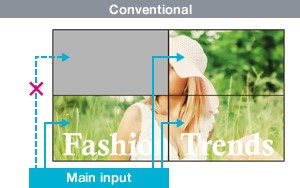

  If AV signals via the primary input are interrupted, images are no longer displayed.	If the primary AV signal is interrupted, the system automatically switches to a backup input so video display is maintained.

Multi-Screen Video Synchronization

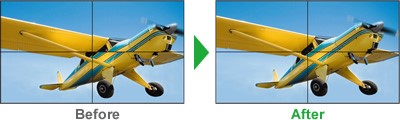

Frame control  Adjusts timing of images to reproduce enlarged video more naturally.	Reverse scan Reverses direction of image scanning to smoothly play enlarged video on multiple screens.

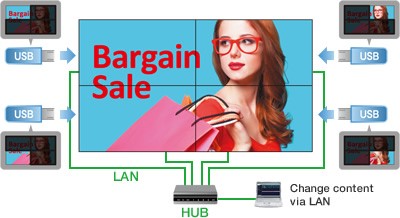

Multi-Screen Imaging Syncing via USB and Changing Content via LAN

The LFV60U Series can be quickly adapted for digital signage—just connect USB memory devices to inputs on each display in 2 x 2 multi-screen configuration for automatically synchronized 4K (4 x 1080p) images. No external devices or processors are required. This function also serves as a backup in case the primary video source fails. By using Multi Monitoring & Control Software, it’s possible to easily replace content stored on USB via LAN, perfect in situations where the display is difficult to access.

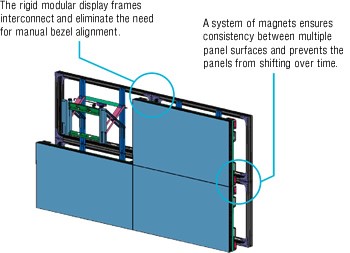

Dedicated Video-Wall Mounting System

Our optional Installation Mount (TY-VK55LV1) makes setting up a spectacular video-wall installation comparatively quick and painless. As well as saving time and reducing labor cost, the rigid mount also eliminates potential panel surface alignment inconsistencies with the use of an automatic magnet system. The LFV60U Series also features optional cover frames for extra protection against impact.
	Inconsistencies in the video wall display can occur when individual panel bezels are not correctly aligned vertically and horizontally, and when panel surfaces are not properly adjusted. Surface alignment control magnets and interlocking mounts ensure precision installation in every axis. The Installation Mount facilitates easy setup and makes individual panels easier to remove for maintenance
