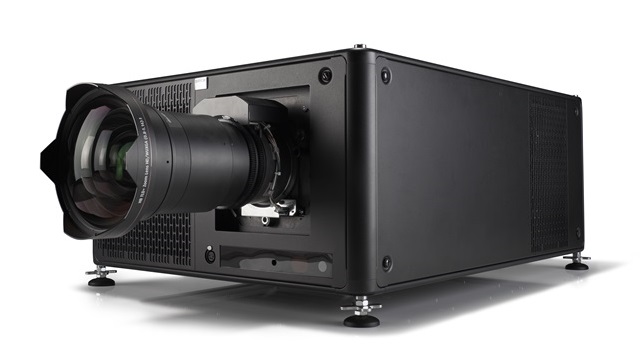

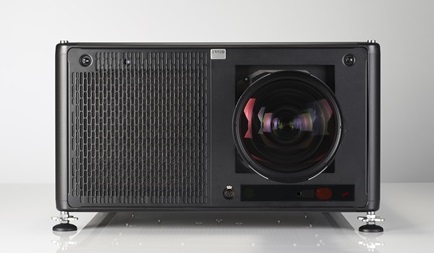

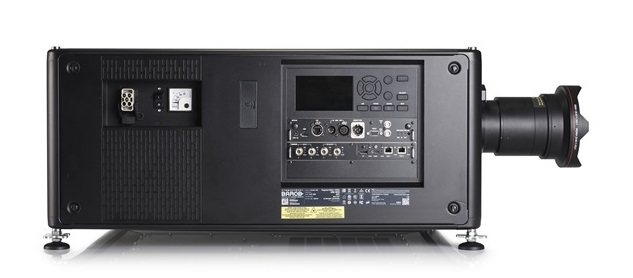

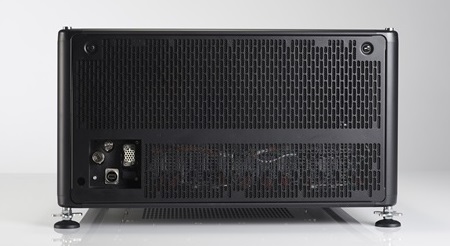

Barco UDX-4K32

Barco UDX-4K32, 3-DLP Laser Projector, 31,000 Center Lumens, No Lens, Body Only, 3 year warranty
Item #0601-1271 Model #R9008600B

Features

31,000 lumens, 4K UHD, 3-chip DLP laser phosphor large venue projector

  • Unmatched colors, 4K resolution, and best-in-class processing
  • Regulated Light Output to maintain a constant brightness
  • Laser phosphor light source for reduced costs and scheduled maintenance
  • 24/7 operation

The UDX series of projectors deliver stunning experiences and savings on installation and shipping time, reducing costs significantly. The most compact, high-brightness laser projectors with integrated cooling on the market, the UDX projectors bring reliable and razor-sharp 4K images to every type of event and venue.

The UDX-4K32 features 4K UHD resolution and 31,000 lumens light output to ensure flawless shows with accurate colors at all times. The Constant Light Output (CLO) functionality also guarantees peace of mind by providing constant brightness and color over time. The UDX platform offers the widest color spectrum in the industry. Without compromising on brightness, the UDX color quality matches the renowned Xenon quality and outperforms the Rec. 709 color space.

Cut costs with laser projection

Thanks to their laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. The UDX series delivers a long lifetime and high reliability to ensure minimum downtime. The UDX's compact and rugged design allows you to reduce shipping and labor costs. The modular components can be removed quickly to limit servicing time. You can also reuse your TLD+ lenses

Pick your brightness and resolution

The unique FLEX² feature will allow you to tune and lock your brightness and resolution to a specific show. You'll now need less projectors to cover a wider range of brightness levels and resolutions.

Faster processing for sharper images

The Barco Pulse 4K electronics offer an intuitive interface and flexible, user-friendly, embedded control software. Its Single Step Processing (SSP) allows for sharper images and less latency.

Specifications

Projector type WUXGA 3-chip DLP digital projector
Technology 0.9" DMD™ x3
Resolution 1,920 x 1,200
Brightness 32,000 center lumens ±10%
Contrast ratio 2,000:1
Brightness uniformity 90%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lenses TLD+ 0.73:1 ; 1.2:1 ; 1.25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift Vert -100% to +130% / Hor +/-40% on zoom lenses memorized
Color correction P7
Light source laser phosphor with inorganic phosphor wheel
Light source lifetime +20,000 hrs
Optical dowser Standard
Picture-in-picture Two sources simultaneously
Sealed DLP™ core standard
Orientation 360°
DMX 512 standard
WARP Direct adjust OSD + toolset
Integrated web server Yes
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 3 flash up to 200Hz
Inputs Dual HDBt; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/HDSDI/dual HDSDI/6G/BarcoLink
Optional Inputs Quad DP1.2
Input resolutions From NTSC up to 4K (4,096 x 2,560)
Max. pixel clock 600 Mhz
Software tools Projector Toolset + Android app + iOS app
Control XLR wired + IR, RS232, Wifi, GSM (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi (optional)
Power requirements 200-240V, 16A, 50-60Hz
Max. power consumption 2,900W nom/3,100W max @ 230 volts/ STBY less than 10W
Noise level (typical at 25°C/77°F) 52 dBA
Operational/ambient temperature 0°-40°C / 32°-104°F
Operational humidity 0-80% (non-condensating)
Dissipation BTU Max. 10,921 BTU/h
Dimensions (WxLxH) 660 x 830 x 350 mm (25.98 x 32.67 x 13.77")
Shipping Dimensions (LxWxH) 1200 x 800 x 685 mm / (47.24 x 31.49 x 26.96")
Weight 92kg (202 lbs)/shipping weight from factory: 110kg (242 lbs)
Standard accessories Power cord, wireless/XLR wired rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
Warranty 3 years
