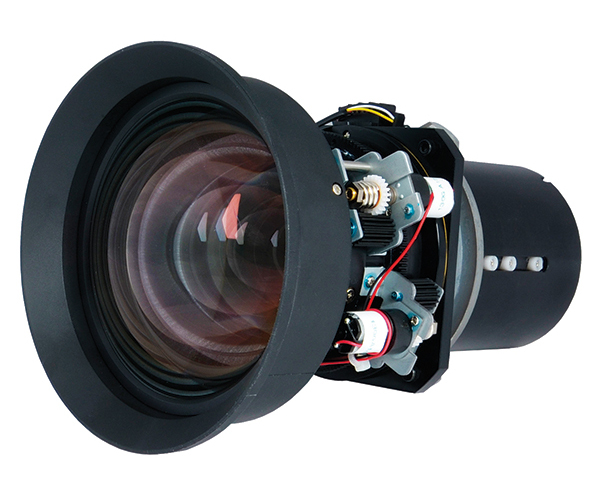

Optoma BX-CTA19

Motorized Wide Zoom Lens, D:W 1.02-1.36:1, 3 year warranty
Item #0601-3721 Model #BXCTA19

Specifications

BX-CTA19

Motorized bayonet-style wide zoom lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



TECHNICAL SPECIFICATIONS
Throw Ratio
(distance/width)		 WUXGA: 1.02 – 1.36:1
Zoom 1.33x
Zoom Adjustment Motorized
Focus Adjustment Motorized
Focal Length (mm) 21.50 – 28.70
Aperture (f/stop) 2.0 – 2.3
PHYSICAL SPECIFICATIONS
Dimensions 4.7" x 4.7" x 7.4" (120.0 x 120.0 x 187.3 mm)
Weight 3.7 lb (1.67 kg)
OTHER
Warranty 3 years
UPC 796435071165

Same Series Lenses

Model BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23
  BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23
D:W 0.84 – 1.02:1 1.02 – 1.36:1 1.2 – 1.5:1 1.5 – 2.0:1 2.0 – 4.0:1 4.0 – 7.2:1
f/stop 2.0 2.0 2.2 2.0 2.2 2.2

Compatibility

To check whether this item is compatible with your equipment, use the form below.

  • Select a brand from the list first.
