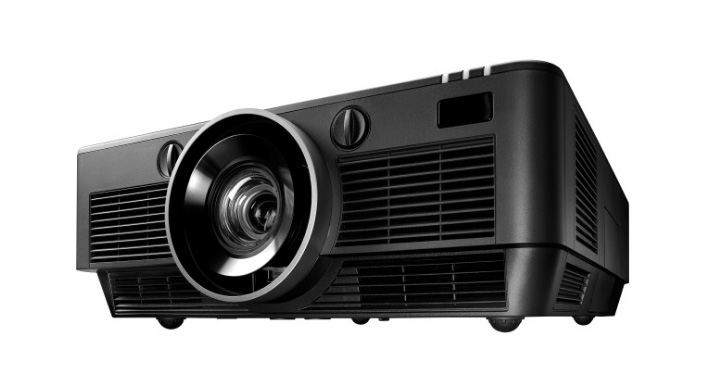

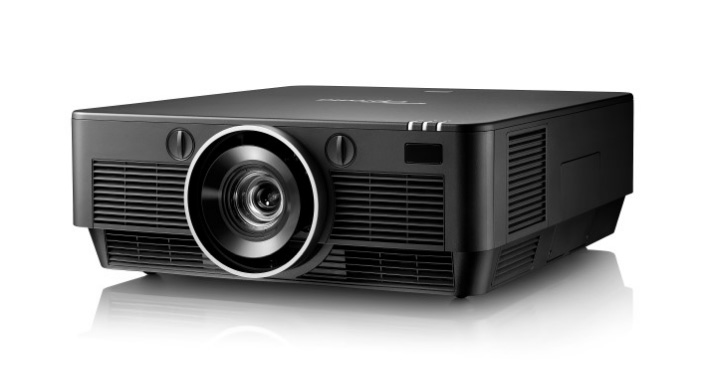

Optoma 4K500

1-DLP Projector, 3840x2160 UHD, 5000 Lumens, 3 year warranty
Part #: 0601-3768    Mfr #: 4K500

Optoma 4K500

Features

Spectacular graphics, text, and video quality with 4K UHD resolution

  • Native 4K UHD 3840x2160 2160p
  • Bright 5,000 lumens, HDR compatible with BT.2020 coverage
  • 2.0x Motorized Zoom and Focus with high optics performance
  • Four digital ports including HDMI 1.4a and 2.0 with HDCP 2.2
  • Vertical and Horizontal lens shift for flexible installation
  • Pure Motion and UltraDetail for smooth image reproduction

The Optoma 4K500 is a state-of-the-art 4K Ultra High Definition (UHD resolution) installation projector engineered to deliver crisp, ultra-sharp images and presentations with a high level of detail and astounding color. With 4 times the pixel count of a 1080p projector, a resolution of 3840x2160 pixels, 5000 lumens, and advanced optics, the 4K500 delivers razor sharp text in PowerPoint presentations and Word documents in addition to cinematic video in breath-taking color for large venues, meeting rooms, houses of worship, and post production screening rooms.

The 4K500 is powered by a revolutionary Texas Instruments 4K DLP UHD chipset with a high performance DMD. This technology utilizes XPR video processing with fast switching to display 8.3 million distinct pixels. Offering High Dynamic Range support in the form of HDR10, with a vertical and horizontal lens shift, and a powerful 2.0x zoom, the 4K500 has been crafted to deliver the definitive 4K UHD HDR experience.

High Dynamic Range (HDR) leverages BT.2020 wide color gamut coverage to deliver bright whites, deep black levels, and life-like, real world color. Pure Motion and UltraDetail features deliver stunning image reproduction for any video content. In addition, the 4K500 is equipped with RS232 and RJ45 ports for full control, and an optional wired remote is available for installations where IR interference limits remote functionality.
1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions

Specifications

Display Technology “Single 0.66” TRP S610 4K UHD DMD DLP® Technology by Texas Instruments™
Native Resolution UHD (3840x2160)
Brightness 5000
Contrast Ratio 5000:1
Lamp Life (hrs)
Throw Ratio 1.35 - 2.63 (with tolerance +/- 5%)
Zoom Type Optical Zoom 2.0x, Digital Zoom 0.95x - 1.25x
Lens Shift Horizontal Lens Shift 35% offset (with tolerance +/- 5%), Vertical Lens Shift 80% offset (with tolerance +/- 5%)

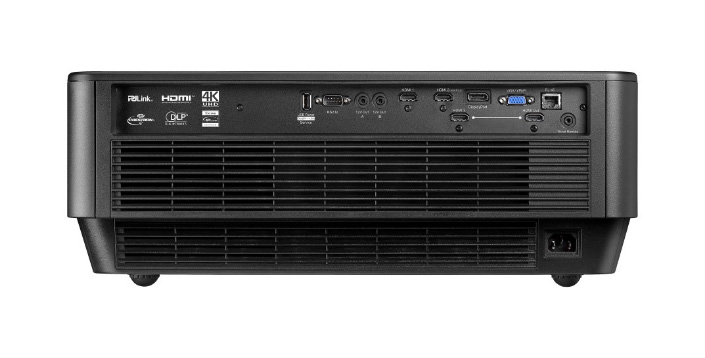

I/O Connectors 2xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2 and Full 18Gbps), HDMI-Out, Display Port, VGA-In, USB-A Power, RJ45, Remote In (3.5mm), RS232C, 2x 12V Trigger, Jack 3.5mm
Weight 36 lbs
Dimensions (W x H x D) 19.5” x 22.5” x 7.5” (with feet)
Aspect Ratio 16:9 (native), 4:3, Auto, LBX (2160p and 1080p)
Projection Screen Size 84” - 300”
Projection Distance 8.2ft - 30ft
Projection Lens F/2.5 - 2.67; F=19.975 - 39.811mm with Iris
Uniformity 85%
Maximum Resolution 4K 4096x2160 @ 60Hz with XPR Technology
Computer Compatibility UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366x768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
Video Compatibility UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
Horizontal Scan Rate 31.0 to 135.0KHz
Vertical Scan Rate 24Hz to 120Hz
Displayable Colors REC.2020 will be used anytime the source content contains HDR metadata.
Noise Level (Eco mode) 32/35 dB (ECO/Bright) normal
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Power Consumption 600W Typical (Bright mode), 660W Max (Bright mode), 480W Typical (Eco+ mode), 528W Max (Eco+ mode)
Operating Conditions 41–104°F (5–40°C), 85% max humidity
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Security Kensington® lock port, password (OSD)
Remote Control IR Full Size Full Function Backlit Remote Control and Wired Remote
Optional Accessories Universal ceiling mount, IR/Wired Remote, Lamp
Optional Wireless No
Warranty 3 Years
RoHS Compliant
Projection method Front, rear, ceiling mount, table top
Warranty 3 Year Optoma Express Warranty/1Year Lamp.  2 year warranty extension if ordered by 12-31-17.
1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
3 +/- 5% tolerance
