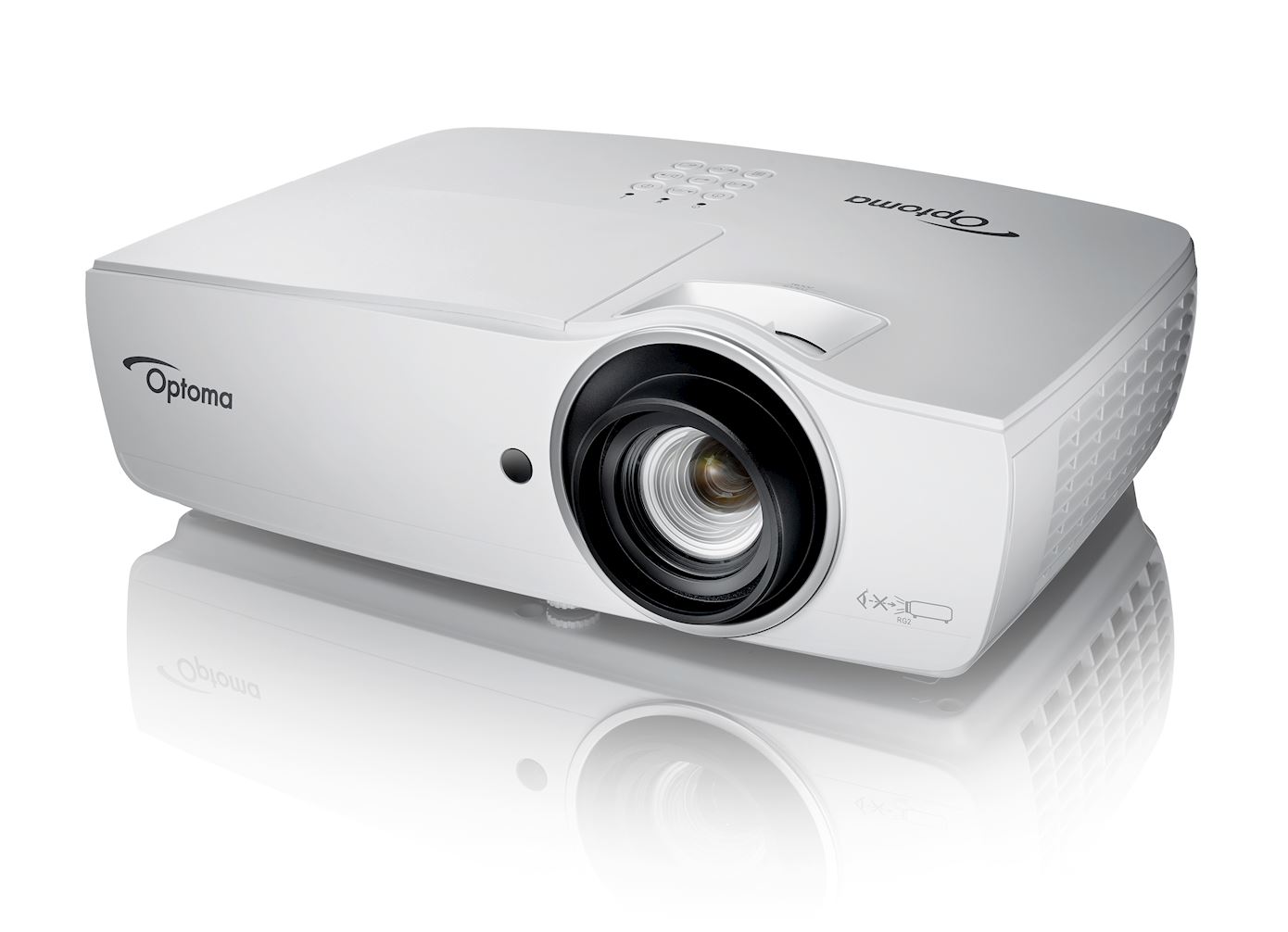

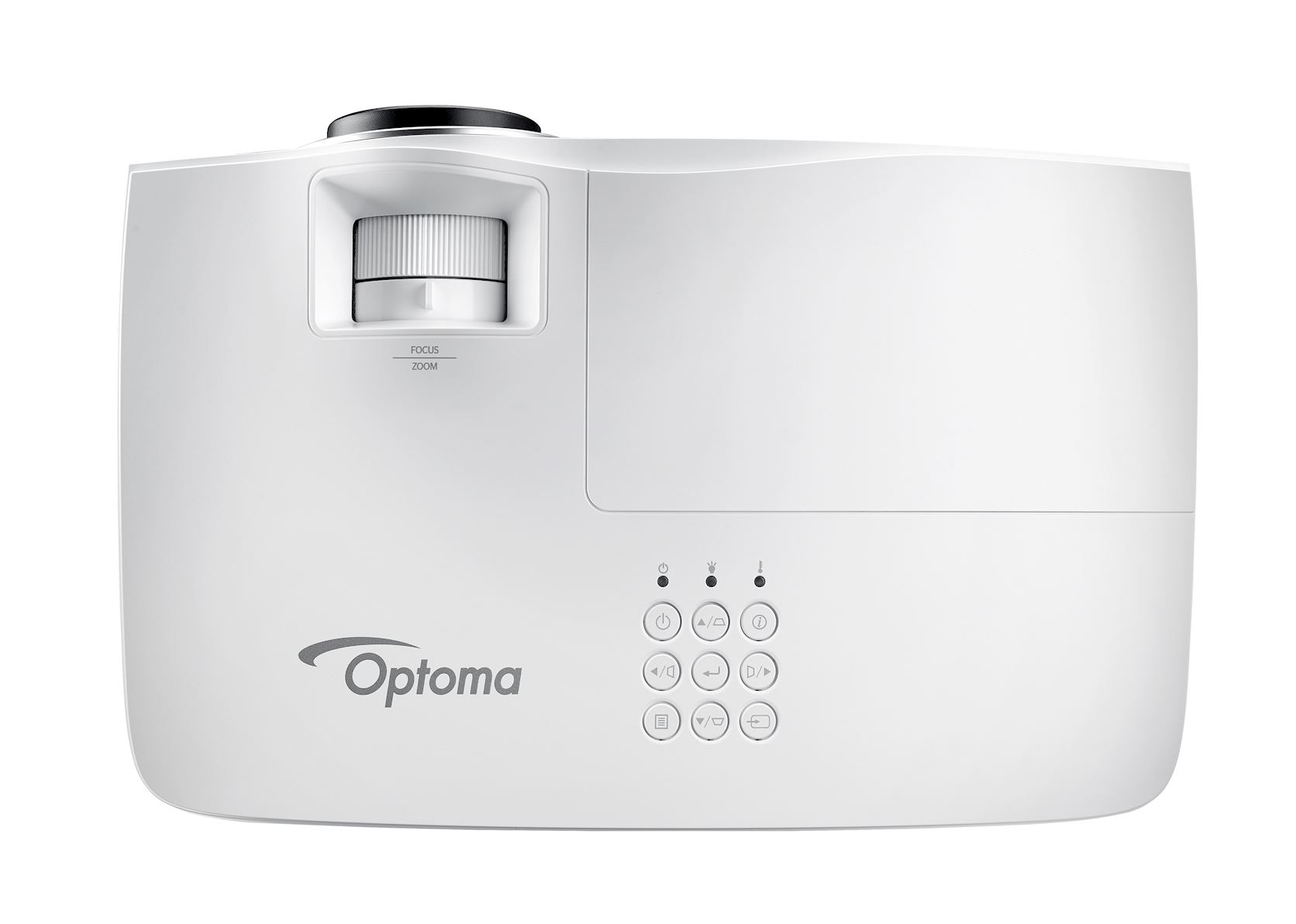

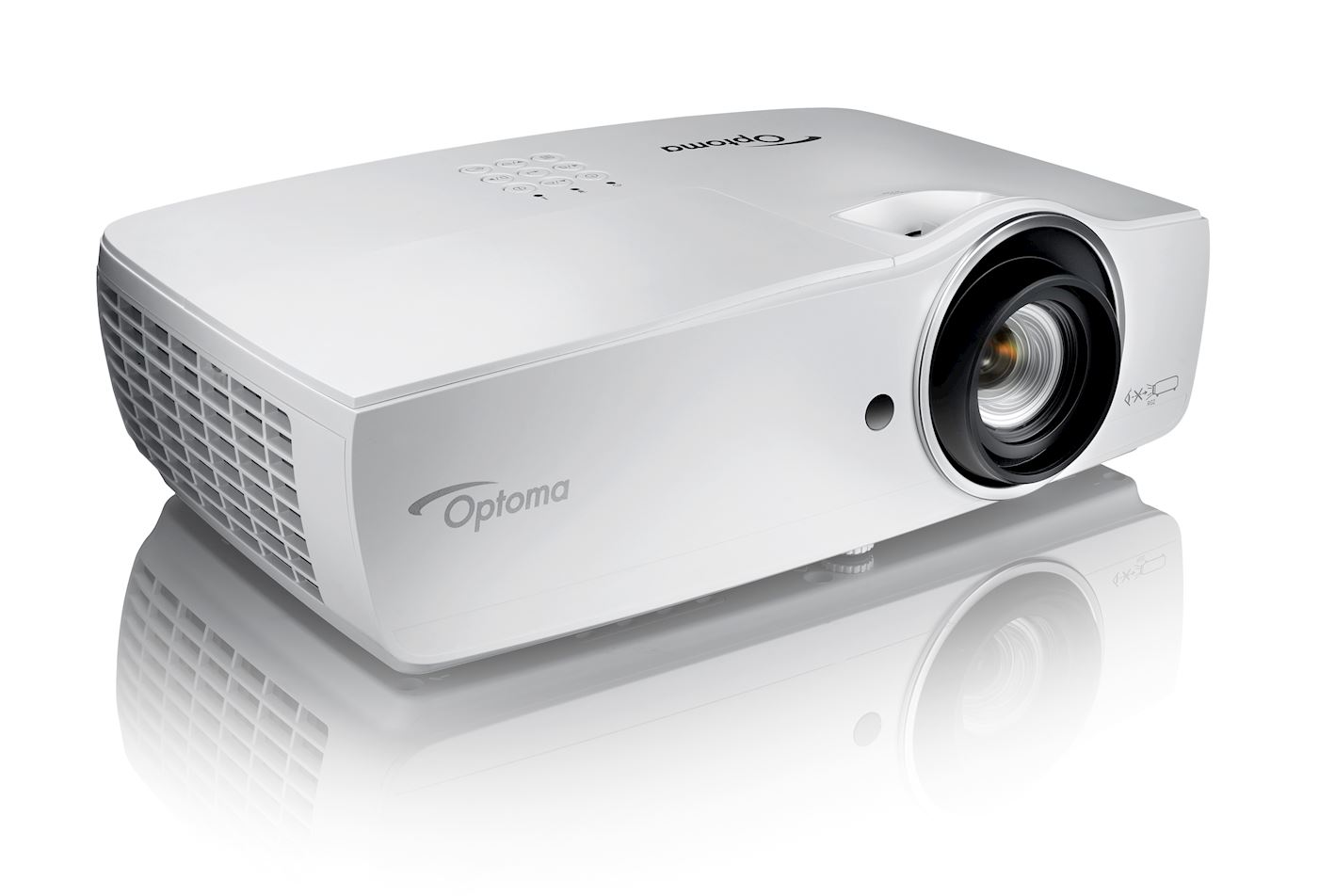

Optoma EH465
1-DLP Projector, 1080p, 4800 Lumens, PC-Less Presentation, 2 year warranty
Item #0601-3776
Model #EH465
Overview
Specifications
| Display Technology | Single 0.65” DMD S600, DC3 chip DLP® Technology by Texas Instruments |
| Resolution | 1080p 1920 x 1080 |
| Brightness | 4800 ANSI lumens |
| Contrast Ratio | 20,000:1 |
| Lamp Life2 Eco/Bright/Education cycle | 3500/2500/4500 (hrs) |
| Throw Ratio 3 | 1.39 - 2.09 |
| Zoom Type | Digital 0.8-2.0x |

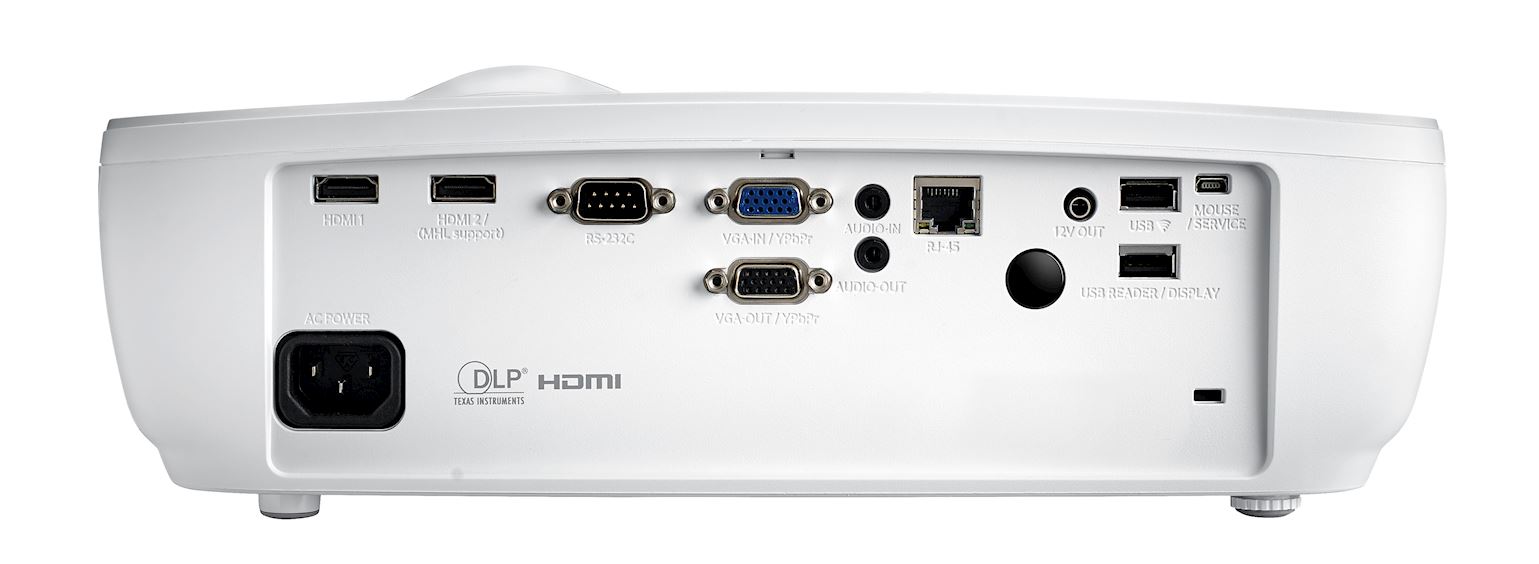

| I/O Connectors | 2xHDMI (with MHL), VGA-in, VGA-out, audio-in (3.5mm), audio-out (3.5mm), RJ-45, 1x USB (Wi-Fi adapter), 1x USB (USB reader and USB power), USB-B Mini (service), 12V trigger (3.5mm), RS-232C |
| Audio | 10W |
| Keystone Correction | ± 30° vertical / ± 25° horizontal |
| Weight | 6.75 lbs. |
| Dimensions (W x D x H) | 12.20” x 8.66” x 3.93” |
| Aspect Ratio | 16:9 (native), 16:10, 4:3 and LBX compatible |
| Offset | 114.9%±5% |
| Projection Screen Size | 25.9’’ - 324.9’’ |
| Projection Distance | 3.93’ - 49.1’ (no zoom) |
| Projection Lens | F=2.42 ~2.97, f=20.70 ~ 31.05mm manual |
| Uniformity | 75% |
| Maximum Resolution | WUXGA (1920x1200) |
| Computer Compatibility | FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p) |
| 3D Compatibility | Side-by-side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate | 25 - 85Hz (120Hz for 3D) |
| Vertical Scan Rate | 15 - 91kHz |
| Displayable Colors | 1.07 billion |
| Noise Level (Eco mode) | 31dB/37dB (ECO/Bright) |
| Power Supply | AC input 100–240V, 50–60Hz, auto-switching |
| Power Consumption | 370W typical (Bright mode), 390W max (Bright mode), 300W typical (Eco+ mode), 320W max (Eco+ mode) |
| Lamp Type | 285W |
| Operating Conditions | Operating temp @ sea level up to 10000 feet = 23F (max); must manually switch to high altitude mode @ 5000 feet & above (using OSD) |
| Operating Temperature | 41–104°F (5–40°C), 85% max humidity |
| Security | Security bar, Kensington lock, password protection |
| Remote Control | Full size remote |
| Standard Accessories | AC power cord, remote control, USB Wi-Fi adapter, carrying case, batteries for remote, multilingual CD-ROM user’s manual, quick start card, and warranty card |
| Optional Accessories | Universal ceiling mount, DLP®Link™ 3D glasses, lamp, remote, WUSB (Wi-Fi adapter replacement) |
| Optional Wireless | Yes |
| Color Wheel | RYGBW |
| Warranty | 3 Years |
| RoHS | Compliant |
| Projection method | Front, rear, ceiling mount, table top |
| Warranty | 3-year Optoma Express Service, 1-year on lamp |
Downloads
Warranty
3-year Optoma Express Service, 1-year on lamp
