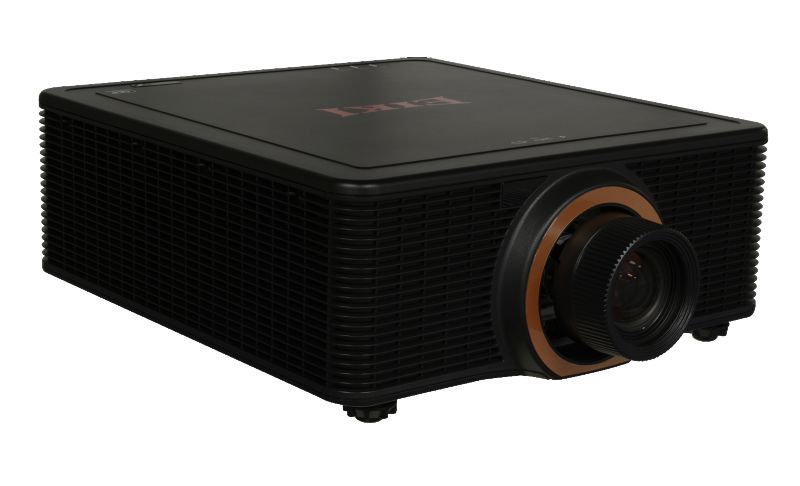

Eiki EK-623U

Laser/Phosphor 1-DLP Projector, 1920x1200 WUXGA, 6000 Lumens, No Lens, 3 years or 6000 Hr warranty
Part #: 0601-5769    Mfr #: EK623U

Eiki EK-623U

Overview

High Contrast 100,000 :1 (with Extreme Black Mode)

High Color reproduction

Digital Input Terminal (HDBaseT x 1, HDMI x 2 , DVI-D x 1)

20,000 Hours Light Source Life with Laser Technology

Flexible installation

  • 360-degree free orientation (vertical and horizontal) projection capabilities
  • Lens Shift H: +/- 15 %, V: +/- 50%
  • Keystone Correction H: +/- 20 °, V: +/- 20 °, 4-Corner
  • 7 Optional Lenses including Ultra Short Throw Lens

Built-in Picture in Picture and Picture by Picture

The lightest weight with 16.9kg ever in EIKI Laser Series

Specifications

  • Model (EAN)

    EK-623U (4571194679144)

    Display Type

    0.67" 1 chip DMD

    Resolution

    WUXGA (1920 x 1200)

    Aspect Ratio

    16:10

    Brightness (ANSI)

    6,000 lm

    Contrast Ratio (with Extreme Black mode)

    100,000:1

    Projection Light Source

    Laser + Phospher

    Light Source Life

    20,000 hours

    Image Diagonal

    Depend on lens (See below table)

    Zoom & Focus

    Powered

    Throw Ratio

    Depends on lens (See below table)

    Lens Shift

    V: +/- 50 %, H: +/- 15% (Powered)

    Keystone Correction

    V: +/- 20 degrees, H: +/- 20 degrees

    Projection Elevation Adjustment

    Up to 5 degrees

    Scanning Frequency

    H Sync: 15, 31 - 91.4 kHz, V sync: 24 - 30, 47 - 120 Hz

    Dot Clock

    162 MHz

    Input Signals - Computer

    WUXGA (1920 x 1200) - VGA ( 640 x 480)

    Input Singals - Video

    1080 i/p, 720p, 576i/p, 480i/p

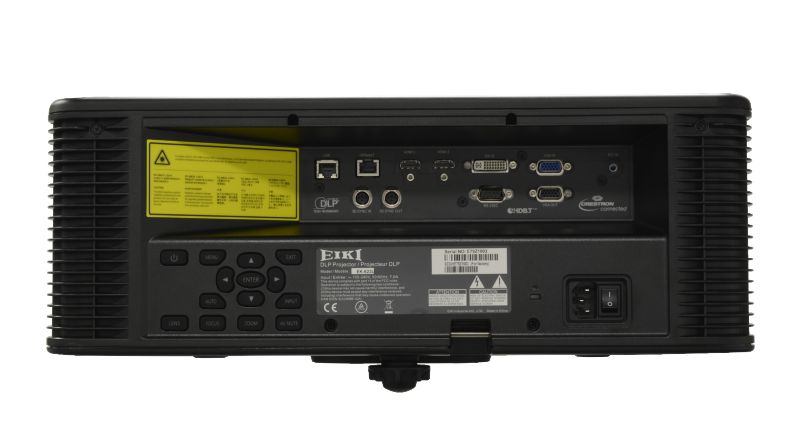

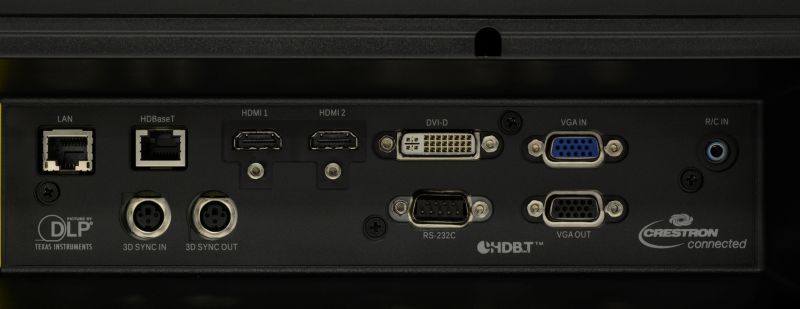

    Terminal

    HDBaseT In

    RJ45 x 1

    HDMI In

    HDMI (version 1.4) x 2



    DVI In

    DVI-D x 1



    VGA In

    D-Sub 15 x 1



    Monitor Out (VGA Out)

    D-Sub 15 x 1



    LAN

    RJ45 x 1



    RS-232C

    D-sub 9 x 1



    Remote Control In

    3.5mm Mini Jack in x 1



    3D-Sync In

    Mini Din 3 pins x 1



    3D-Sync Out

    Mini Din 3 pins x 1



    Fun Noise (Eco / Normal)

    34 dB / 36 dB

    Dimensions (W x H x D)

    484 x 181 x 509 mm

    Weight (without Lens)

    16.9 kg

    Power Requirements

    AC 100 - 240 V, 50/60 Hz

    Power Consumption (Eco / Normal)

    470 W / 650 W

    Thermal Dissipation

    2218 BTU / hour

    Standard Accessories

    AC Power Cord x 2 (U.S. A. & Euro),

    VGA cable x 1, Lens Cover x 1,

    Remote Control (with AAA batteries x 2),

    Quick Start Guide, Safety Guide

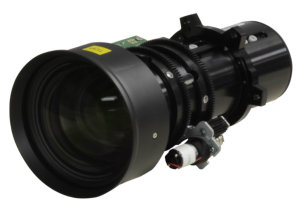

Accessories

Model

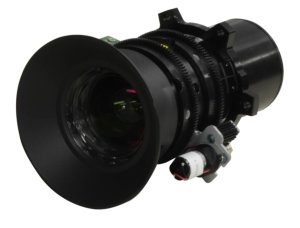

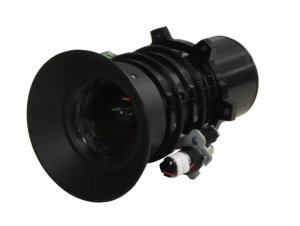

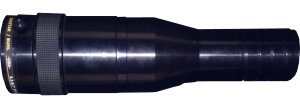

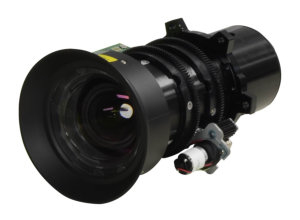

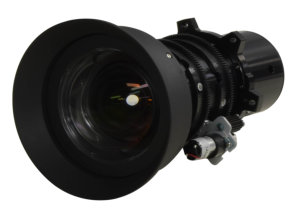

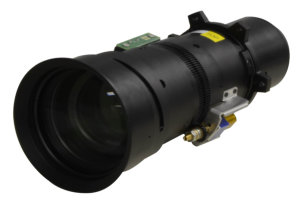

AH-A22030 AH-A25010 AH-A22010A AH-A22020 AH-A21010 AH-A23010 AH-A22040 0001-5045 0001-5046
Throw Ratio 1.22 - 1.53:1 0.36:1 0.75 - 0.95:1 0.95 - 1.22:1 1.52 - 2.92:1 2.90 - 5.50:1
f/stop 2.00 - 2.32 2.4

2.30 -2.53

2.30 -2.57 2.30 - 3.39 2.3-2.74 2.0-2.53 2.8 3.5

Warranty

Limited Warranty: to the original end use customer only

Only the laser light engine on Eiki laser projectors will have a 20,000 hour warranty

Projector: 3 years / 6000 hours (whichever occurs first)
