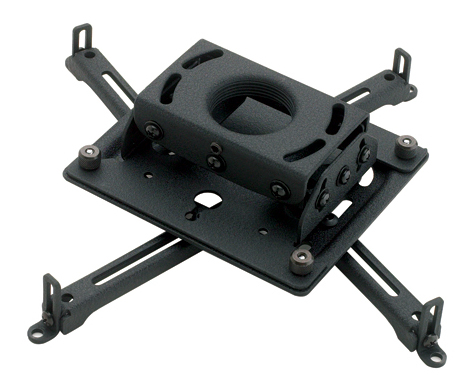

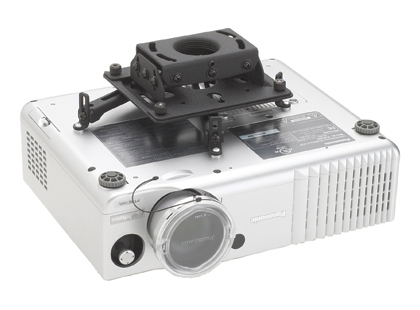

Chief RPA-U

Universal Projector Mount, Black
Item #7612-0153 Model #RPAU
$205.60
List price

Features

  • Ships with newly designed SLB universal bracket to fit most inverted projectors on the market
  • Independent roll, pitch and yaw for quick and precise projector image registration
  • Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • Maintains registration when disconnected and doesn't affect preset adjustments
  • All-Points™ Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • Integrated cable management through top of mount without additional accessories

Specifications

Adjustments: Roll: 4°
Pitch: 25°
Yaw: 360°
Certifications: UL Listed
Color: Black
Overall Dimensions (H x W x D): 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)
Shipping Weight: 5.75 lbs
Solution Type: Universal
Weight Capacity: 50 lbs (22.7 kg)
