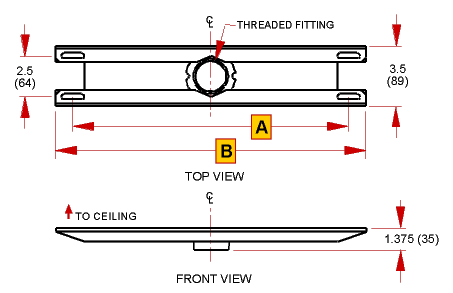

| TECHNICAL DATA: |
 |
| MODEL# | DIMENSIONS | WEIGHT | SHIPPING WEIGHT |
MAXIMUM LOAD |
|||
| **A | B | ||||||
| CMJ 470 | 16 (406) | 18 (457) | 4.4 (2) | 7 (3) | 300 (137) | ||
| CMJ 480 | 20 (508) | 22 (559) | 5.1 (2.3) | 8 (4) | 300 (137) | ||
| CMJ 490 | 24 (610) | 26 (660) | 5.8 (2.6) | 8 (4) | 300 (137) | ||
| NOTES: ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY CENTER THREADED FITTING: 1 1/2-11.5 NPS MAXIMUM LOAD IS THE COMBINED WEIGHT OF ALL ATTACHED HARDWARE AND COMPONENTS |
|
| ** | REQUIRED JOIST SPACING, CENTER TO CENTER |
|
|
