Peerless Double Stud Wall Plate

External Wall Plate For wood stud or metal stud walls
	The External Wall Plate Mounts to the outside surface of a finished wood stud or metal stud wall. Models are available for studs on 16", 20" and 24" centers Features: All mounting hardware included Heavy duty steel construction White fused epoxy finish

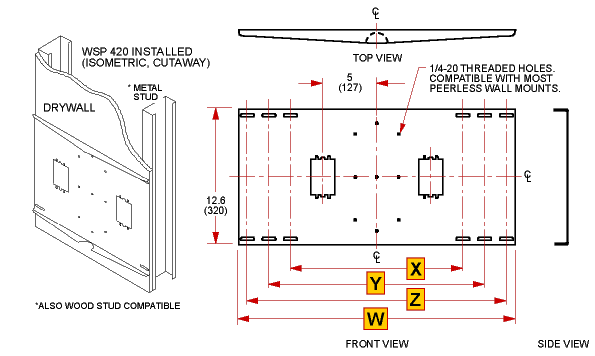

4 SLOT EXTERNAL WALL PLATE APPLICATION: STUDS ON 16" CENTERS
MODEL#	DIMENSIONS
MODEL#	W	X	Y	Z
WSP 420W	17.7 (450)	-	-	16 (406)

8 SLOT EXTERNAL WALL PLATE APPLICATION: STUDS ON 16" OR 20" CENTERS
MODEL#	DIMENSIONS
MODEL#	W	X	Y	Z
WSP 430W	21.7 (551)	-	16 (406)	20 (508)

12 SLOT EXTERNAL WALL PLATE APPLICATION: STUDS ON 16", 20" OR 24" CENTERS
MODEL#	DIMENSIONS
MODEL#	W	X	Y	Z
WSP 440W	25.7 (653)	16 (406)	20 (508)	24 (610)

NOTES:
ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.)
MATERIAL: 10 GAGE COLD ROLLED STEEL, FINISH: BLACK (WHITE FOR "W" MODELS) FUSED EPOXY
MAX. LOAD FOR WOOD STUD WALLS: GO BY MAX. LOAD RATING OF THE TV MOUNT BEING ATTACHED.
MAX. LOAD FOR METAL STUD WALLS: 150 LBS. (68 KG.) WHICH INCLUDES THE WEIGHT OF ALL ATTACHED HARDWARE AND EQUIPMENT
.
COMPATIBILITY:
JUMBO 2000 SINGLE ARM WALL MOUNTS

ARCHITECT SPECIFICATIONS

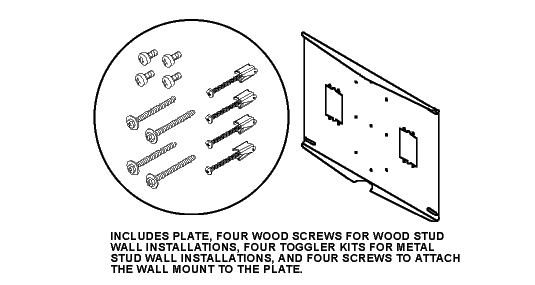

The wall plate shall be a Peerless Model WSP____ External Wall Plate. It shall feature a 1/4-20 threaded hole pattern compatible with most Peerless wall mounts. It shall include four special togglers for attachment to a metal stud wall, four wood screws for attachment to a wood stud wall and four 1/4-20 screws for attachment of the TV wall mount. It shall be constructed of 10 gage cold rolled steel and finished in black or white fused epoxy. Installation shall be done according to the instructions provided by the manufacturer.
