Shure Brothers SLX24/SM58-L4
Overview

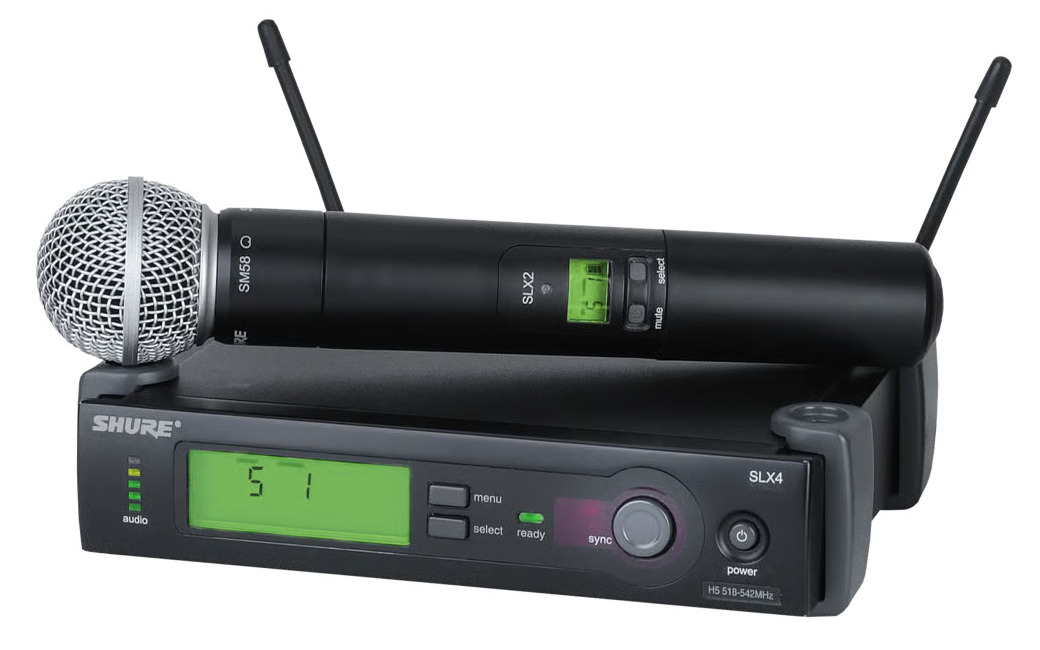

Shure SLX24/SM58-L4
Handheld UHF System, SLX4 and SLX2/SM58
The Shure SLX24/SM58-L4 is a UHF system that includes a SLX4 wireless microphone receiver, as well as a SLX2/SM58 handheld wireless microphone transmitter combined with a SM58 microphone capsule. Both components operate on the L4 frequency band of 638 to 662 MHz.*

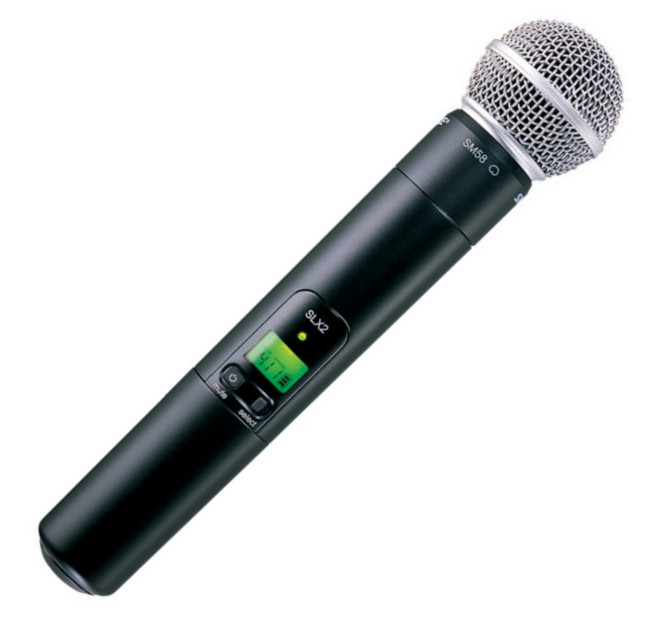

SLX2/SM58-L4
The Shure SLX2/SM58-L4 is a professional dynamic handheld wireless microphone transmitter fitted with the legendary SM58 cardioid vocal microphone, tailored to deliver warm and clear vocal reproduction. It is designed for seamless integration with the SLX4 Wireless Receiver.
The SM58 microphone capsule features brightened mid-range and bass roll-off, and a built-in spherical wind and pop filter.
SLX4-L4
The diversity design of the SLX4-L4 receiver allows dual receiver circuits and antennas to compete for the strongest possible reception. The SLX4-L4 features XLR microphone level and 1/4" phone line level outputs. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as locked/unlocked status, and battery strength.
This UHF receiver brings unprecedented ease-of-use with Auto Frequency Selection and Auto Transmitter Setup. Including rack hardware and detachable antennas, it's ready for installation right out of the box.
* Important notice: In the US, the FCC requires that the frequency of this device be set between 652 to 662 MHz. 638 to 652 MHz cannot be used. Foreign customers must check that the frequency band 638 to 662 MHz is unrestricted before purchasing.
Features
SLX2/GM58-L4
- Auto Frequency Selection: Locates a clear channel instantly
- Auto Transmitter Setup: Instantly syncs frequency parameters to an SLX4 receiver via an infrared (IR) link.
- Shure’s patented Audio Reference Companding: Delivers crystal-clear audio transmission, far superior to conventional wireless technology
- Operates in the L4 frequency band (638 to 662 MHz)*
- SM58 Capsule Integration: Delivers the warm, clear vocal presence and rugged reliability of the legendary Shure SM58 wired vocal microphone. It features a built-in spherical wind and pop filter.
- Interchangeable Head: The transmitter chassis utilizes a threaded design, allowing you to swap out the SM58 capsule for other compatible Shure capsules (such as the Beta 58A or SM86) if necessary.
- Control Lockouts: Features a software lockout for both power and frequency settings to prevent accidental disruptions during performances.
- Timed backlit LCD screen: shows group, channel, and a 3-segment battery gauge.
- 2 AA batteries (included): provide 8 hours of continuous use
- 3-segment battery fuel gauge: Provides an easy visual tracker for the remaining battery life of your AA cells.
- 300 ft.(100 m) operating range
SLX4-L4
- Auto Frequency Selection: Locates a clear channel instantly
- Auto Transmitter Setup: Infrared link automatically synchronizes the transmitter and receiver
- Shure’s patented Audio Reference Companding: Delivers crystal-clear audio transmission, far superior to conventional wireless technology
- Operates in the L4 frequency band (638 to 662 MHz)*
- Selection of over 960 operating frequencies across 24 MHz of bandwidth: avoids RF interference
- Two detachable 1/4 wave antennas
- 1/4" and XLR audio outputs
- Backlit LCD display: provides Frequency, Group, and Channel information, as well as locked/unlocked status, and battery strength.
- Diversity technology: improves reception, minimize signal dropouts, and achieve the best possible signal-to-noise ratio.
- Audio level meter and infrared port for system synchronization
- Rack-mount hardware included
- Frequency and power lockout
- Volume control on rear of unit
- Rugged metal construction
- Four protective bumpers for use when not rack-mounted
Specifications
System
| Operating Range Under Typical Conditions | 300 ft.(100 m) Note: actual range depends on RF signal absorption, reflection, and interference |
| Audio Frequency Response (±2 dB) | Minimum: 45 Hz Maximum: 15 kHz (Overall system frequency depends on microphone element.) |
| Total Harmonic Distortion (ref. ±38 kHz deviation, 1 kHz tone) | 0.5%, typical |
| Dynamic Range | >100 dB A-weighted |
| Operating Temperature Range | 0°F -(18°C) to 122°F (50°C) Note: battery characteristics may limit this range |
SLX2/SM58-L4
| Type of Transmitter |
Handheld Wireless Microphone Transmitter |
| RF Carrier Frequency Range | L4: 638 to 662 MHz * |
| Number of Channels | Over 960 operating frequencies across 24 MHz of bandwidth |
| Audio Input Level | +2 dBV maximum at -10 dB position -8 dBV maximum at 0 dB position |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 30 mW maximum (dependent on applicable country regulations) |
| Dimensions (including SM58 cartridge) | 10" x 2" diam. (254 mm x 51 mm diam.) |
| Weight | 10.2 oz. (290 grams) without batteries |
| Housing | Molded PC/ABS handle and battery cup |
| Power Requirements | 2 AA size alkaline or rechargeable batteries |
| Battery Life | > 8 hours (alkaline) |
SLX4-L4
| Type of Receiver | UHF Diversity Half-Rack Mountable |
| RF Carrier Frequency Range | L4: 638 to 662 MHz * |
| Number of Channels | 960 operating frequencies across a 24 MHz bandwidth |
| Dimensions (HxWxD) | 1.65" x 7.76" x 5.28" (42 x 197 x 134 mm) |
| Weight | 1 lb 13 oz (816 g) |
| Housing | Galvanized steel |
| Display | Backlit LCD |
| Audio Output Level (ref. ±38 kHz deviation with 1 kHz tone) | XLR connector (into 600 Ω load): -13 dBV 1/4 ¼ inch connector (into 3000 Ω load): -2 dBV |
| Output Impedance | XLR connector: 200 Ω ¼ inch connector: 1 kΩ |
| XLR output | Impedance balanced Pin 1: Ground Pin 2: Audio Pin 3: No signal |
| Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >70 dB, typical |
| Power Requirements | 12–18 Vdc at 150 mA, supplied by external power supply |
