Shure Brothers SLX14/93-G4
Overview

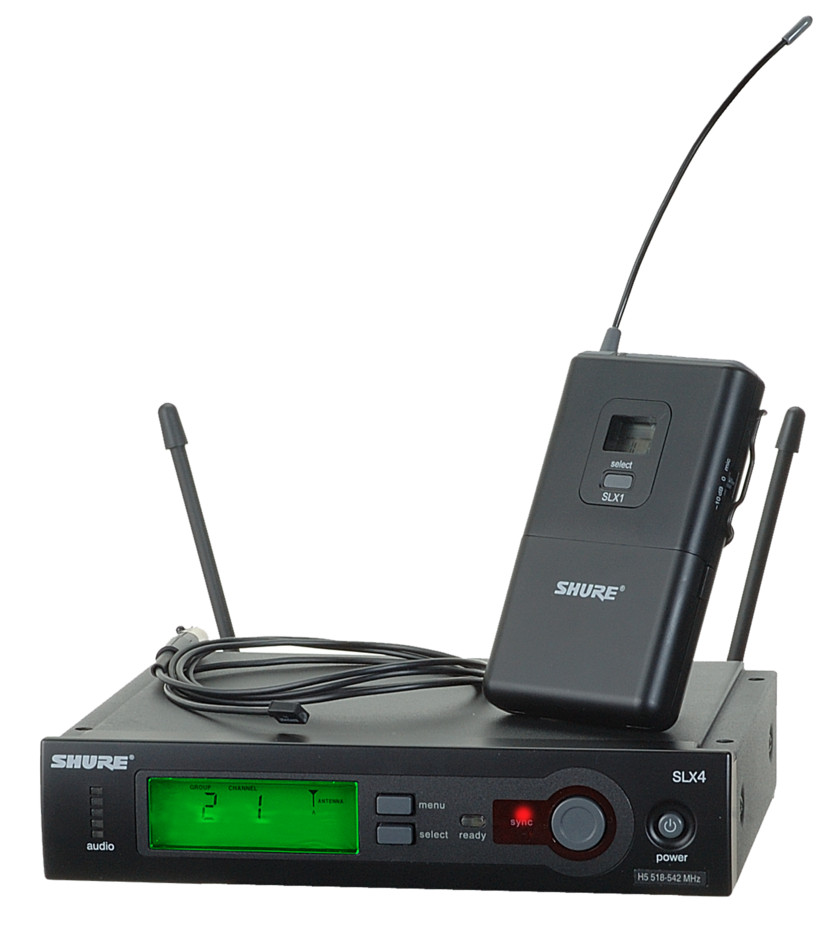

Shure SLX14/93-G4
UHF Bodypack System, SLX4, SLX1 & WL93
The Shure SLX14/93-G4 is a UHF bodypack system that includes a SLX4 wireless microphone receiver, a SLX1 wireless bodypack transmitter, and a WL93 lavalier microphone. Both receiver and transmitter operate on the G4 frequency band of 470–494 MHz.
SLX4-G4
The diversity design of the SLX4-G4 receiver allows dual receiver circuits and antennas to compete for the strongest possible reception. The SLX4-G4 features XLR microphone level and 1/4" phone line level outputs. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as locked/unlocked status, and battery strength.
This UHF receiver brings unprecedented ease-of-use with Auto Frequency Selection and Auto Transmitter Setup. Including rack hardware and detachable antennas, it's ready for installation right out of the box.

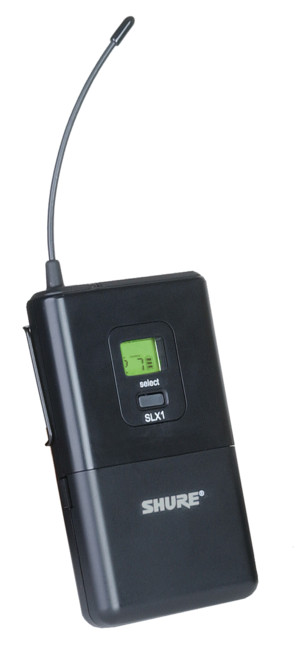

SLX1-G4
The Shure SLX1-G4 is a UHF bodypack transmitter providing up to 8 hours of use on two AA batteries. A 4-pin microphone input jack accommodates any Shure microphone featuring a TA4 connection.
The SLX1-G4 features an infra red sensor that allows the transmitter to remotely sync frequency and channel settings with the receiver. As well, a timed backlit LCD provides channel and frequency status, RF status, etc.
WL93
The Shure WL93 is an omnidirectional miniature lavalier condenser microphone that provides full, clear sound in general speech applications, like broadcast presentations and speeches. It features smooth frequency response, controlled low-frequency roll off, and versatile mounting accessories. Its small size makes it ideal in situations where a visually unobtrusive microphone is desirable.
The WL93 microphone comes with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. It also includes a 4-feet cable terminated with a 4-pin mini connector, which connects directly to the Shure SLX1 wireless bodypack transmitter.
Features
SLX4-L4
- Auto Frequency Selection: Locates a clear channel instantly
- Auto Transmitter Setup: Instantly syncs frequency parameters to an SLX4 receiver via an infrared (IR) link.
- Shure’s patented Audio Reference Companding: Delivers crystal-clear audio transmission, far superior to conventional wireless technology
- Operates in the L4 frequency band (638 to 662 MHz)*
- Selection of over 960 operating frequencies across 24 MHz of bandwidth: avoids RF interference
- Two detachable 1/4 wave antennas
- 1/4" and XLR audio outputs
- Backlit LCD display: provides Frequency, Group, and Channel information, as well as locked/unlocked status, and battery strength.
- Diversity technology: improves reception, minimize signal dropouts, and achieve the best possible signal-to-noise ratio.
- Audio level meter and infrared port for system synchronization
- Rack-mount hardware included
- Frequency and power lockout
- Volume control on rear of unit
- Rugged metal construction
- Four protective bumpers for use when not rack-mounted
SLX1-L4
- Auto Frequency Selection: Locates a clear channel instantly
- Auto Transmitter Setup: Instantly syncs frequency parameters to an SLX4 receiver via an infrared (IR) link.
- Shure’s patented Audio Reference Companding: Delivers crystal-clear audio transmission, far superior to conventional wireless technology
- Operates in the L4 frequency band (638 to 662 MHz)*
- Works with head-worn, lavalier and instrument microphones and cables
- Timed backlit LCD
- Frequency and power lockout
- 2 AA batteries (included): provide 8 hours of continuous use
- 300 ft. (100 m) operating range
WL93
- Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
- Small, inconspicuous mounting hardware
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency rolloff reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Uniform omnidirectional polar pattern
- 4' cable terminated with a 4-pin mini connector which connects directly to a Shure wireless bodypack transmitter
- Includes a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.
Specifications
System
| Operating Range Under Typical Conditions | 300 ft.(100 m) Note: actual range depends on RF signal absorption, reflection, and interference |
| Audio Frequency Response (±2 dB) | Minimum: 45 Hz Maximum: 15 kHz (Overall system frequency depends on microphone element.) |
| Total Harmonic Distortion (ref. ±38 kHz deviation, 1 kHz tone) | 0.5%, typical |
| Dynamic Range | >100 dB A-weighted |
| Operating Temperature Range | 0°F -(18°C) to 122°F (50°C) Note: battery characteristics may limit this range |
SLX1-G4
| Type of Transmitter |
WIreless Bodypack Transmitter |
| RF Carrier Frequency Range | G4: 470–494 MHz |
| Number of Channels | Over 960 operating frequencies across 24 MHz of bandwidth |
| Audio Input Level | -10 dBV maximum at mic gain position +10 dBV maximum at 0 dB gain position +20 dBV maximum at -10 dB gain position |
| Gain Adjustment Range | 30 dB |
| Input Impedance | 1 MΩ |
| RF Transmitter Output | 30 mW maximum (dependent on applicable country regulations) |
| Dimensions (HxWxD) | 4.25 x 2.50 x 0.75 in (108 x 64 x 19 mm) |
| Weight | 3 oz. (81 grams) without batteries |
| Housing | Molded ABS case |
| Power Requirements | 2 AA size alkaline or rechargeable batteries |
| Battery Life | > 8 hours (alkaline) |
SLX4-G4
| Type of Receiver | UHF Diversity Half-Rack Mountable |
| RF Carrier Frequency Range | G4: 470–494 MHz |
| Number of Channels | 960 operating frequencies across a 24 MHz bandwidth |
| Dimensions (HxWxD) | 1.65" x 7.76" x 5.28" (42 x 197 x 134 mm) |
| Weight | 1 lb 13 oz (816 g) |
| Housing | Galvanized steel |
| Display | Backlit LCD |
| Audio Output Level (ref. ±38 kHz deviation with 1 kHz tone) | XLR connector (into 600 Ω load): -13 dBV 1/4 ¼ inch connector (into 3000 Ω load): -2 dBV |
| Output Impedance | XLR connector: 200 Ω ¼ inch connector: 1 kΩ |
| XLR output | Impedance balanced Pin 1: Ground Pin 2: Audio Pin 3: No signal |
| Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >70 dB, typical |
| Power Requirements | 12–18 Vdc at 150 mA, supplied by external power supply |
