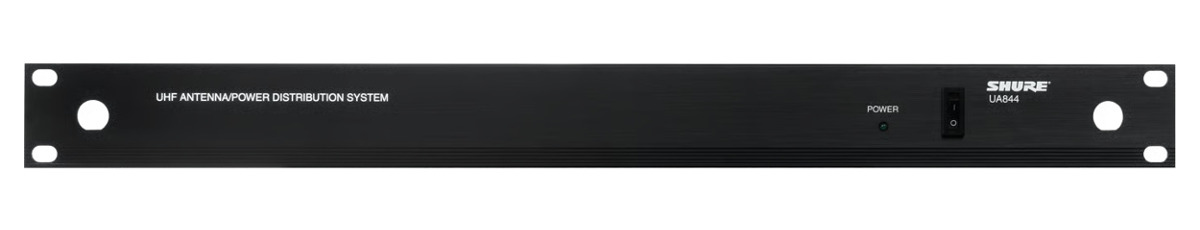

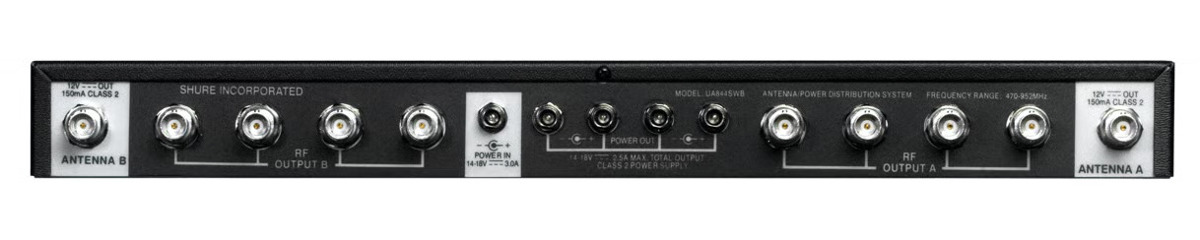

Shure UA844SWB
UHF 4-Way Active Antenna/Power Splitter
The Shure UA844SWB is a UHF antenna distribution system that allows the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers.
It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844SWB system can support up to four wireless receivers. A maximum of five UA844SWB systems may be used in a two-tiered configuration.
Key Features
- Front-mounting antenna hardware
- Rack-mounting hardware
- External power supply
- Antenna cables and hardware for receiver connections
- Locking and non-locking DC power cables for receiver connections
- UA844SWB supports 470 to 952 MHz RF frequency range
Specifications
| Power Requirements | 14 to 18V DC |
| DC Output | 14 to 18V DC (x4) |
| Output Current Combined total from all DC outputs |
2.5 A, maximum |
| Operating Temperature Range | 20°F (-7°C) to 120°F (49°C) |
| Dimensions (HxWxD) | 1.77" x 19.02" x 6.77" (45 x 483 x 172 mm) |
| Net Weight | 3.6 lb (1.62 kg) |
| RF INPUT | |
| Connector Type | BNC |
| RF Frequency Range | 470 to 952 MHz |
| Bias Voltage | 12V DC (150 mA max.) x2 |
| Impedance | 50 Ω |
| RF OUTPUT | |
| RF Frequency Range | 470 to 952 MHz |
| Output Intercept Point (OIP3) | 21 dBm, typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Output Connector Isolation | 30 dB, typical |
| Gain Input to any output port (Unused ports terminated in 50 Ω) |
-0.5 to 3.0 dB |
