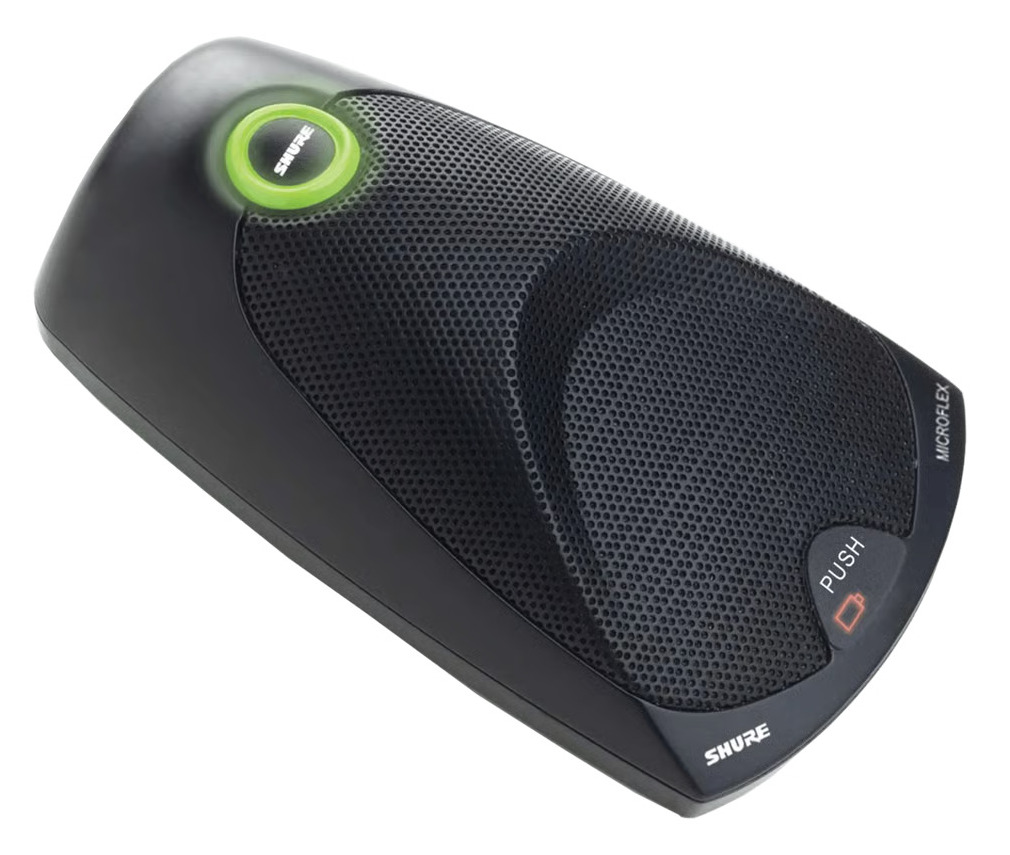

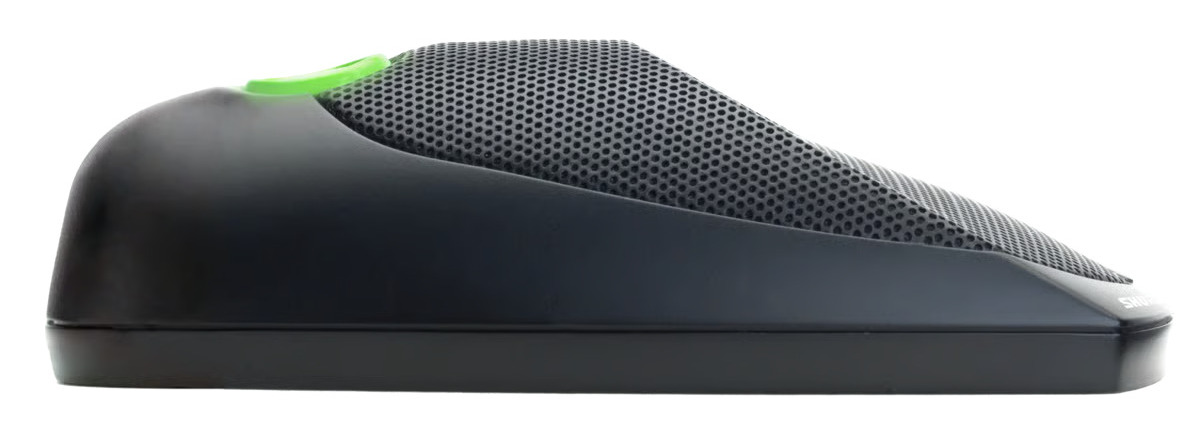

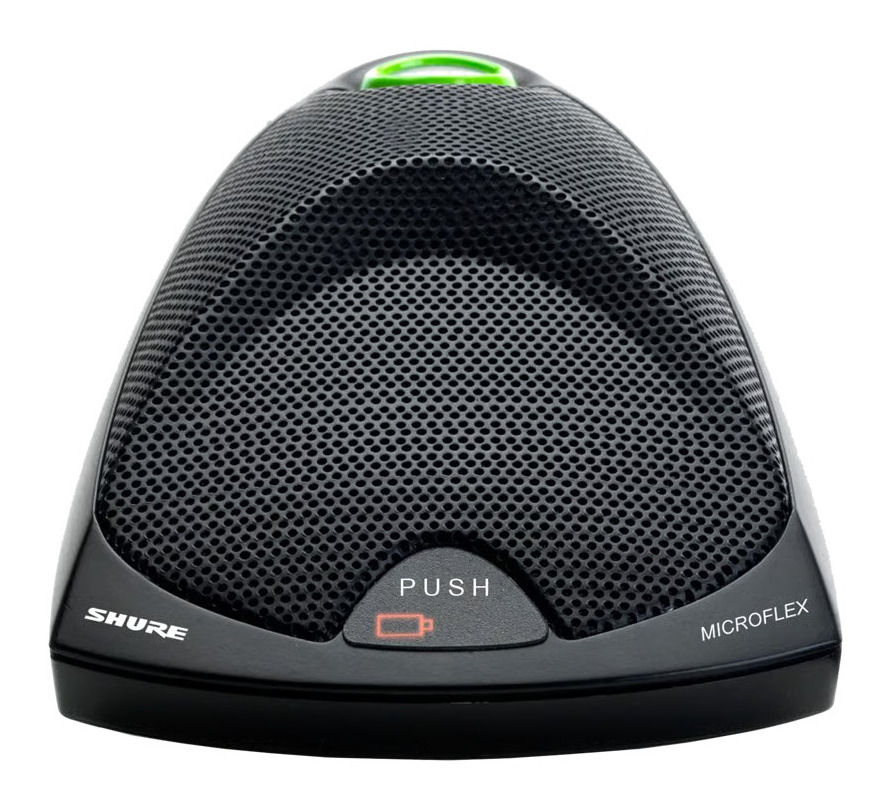

Shure MX690-G4

Wireless Boundary Microphone

The Shure MX690-G4 is a frequency-agile wireless boundary microphone operating in the G4 (470–494 MHz) UHF band. Designed for boardrooms and conference spaces where wired microphones are impractical, it features an internal transmitter that sends audio to a receiver without the need for drilled cables.

This tabletop transmitter includes a cardioid condenser boundary microphone compatible with SLX4 and SLX4L receivers. The cardioid polar pattern captures audio directly in front of the microphone and rejects much of the off-axis ambient noise. It is great for one or two speakers sitting close together.

The MX690-G4 ensures reliable transmission and high-quality audio, along with easy installation. It provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 100'.

• Sleek, low profile design

• Equipped with cardioid condenser boundary microphone

• Frequency-agile, microprocessor-controlled transmitter operating on the G4 frequency band (470-494 MHz)

• Transmitter's max operating range: 100' (30.5 m) with a fixed 30mW RF power output

• IR link to SLX receiver for automatic frequency synchronization. (Compatible with all Shure SLX Wireless systems)

• Programmable frequency Group/Channel display

• Configurable mute button with LED status display, and logic mode for remote control

• Runs for approximately 8 hours on two standard AA batteries.

• Commshield® technology for protection from RF interference from smartphones
