Da-Lite DL16524

Screen Controller with IR Remote
Item #0400-0814 Model #DL16524
$496.00
Price

Overview

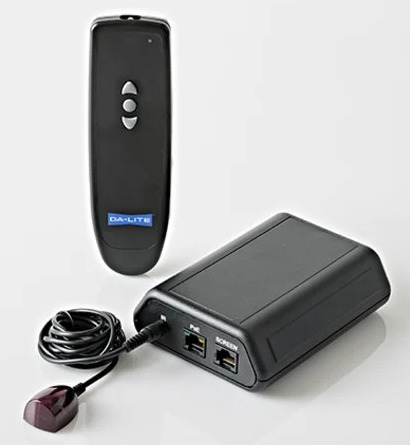

Da-Lite DL16524

Screen Controller with Infrared (IR) Remote

The Screen Controller is an accessory for Da-Lite motorized projection screens with integrated low voltage control or an external low voltage control. This Screen Controller box allows remote control of a screen or control through a TCP/IP connection, VPI (Video Projector Interface) Trigger, Dry Contact and RS232 Communication.

This kit also includes an IR remote transmitter and receiver, which connects to the Screen Controller to provide remote functionality for operation up to 50' away. It is ideal for rooms with RF interference. The receiver is compatible with third-party controllers that can learn IR codes. (AAA batteries are included.)

The Screen Controller interface box is configured to supply every control configuration you might need for your projection screen and is powered by PoE (Power over Ethernet) that requires a connection to an ethernet switch that provides PoE+ power (30W minimum). If your switch does not provide this power or you are not planning on using an ethernet connection, you will need to use a PoE injector with the controller (not included in this kit, see DL16525).

The Screen Controller has a web interface used for initial device setup, administrative control and operation. This device is compatible with the Vaddio Deployment Tool. The tool scans the network for Vaddio and Da-Lite devices, lists them by model and IP address, identifies all devices that are not set up, and provides the controls to complete the initial device setup. It will also provide links to each device’s web interface.

Note: This product only works with V2 smart motors since December 11th, 2023.

Specifications

Accessory Type
  • Controls
  • Low Voltage Trigger
Product Selection Screen Controller with IR Remote
Screen Type Electric
Shipping Dimensions 8" x 7" x 4" (203.2 x 177.8 x 101.6 mm)
Shipping Weight 1.5 lb (0.68 kg)


Compatible Screens

Electric Screens with standard built-in low voltage control (LVC)

  • Myriad Reveal Series
  • Myriad Conceal Series
  • Tensioned Advantage Series
  • Advantage Series
  • Tensioned Contour Electrol Series
  • Contour Electrol Series



Electric Screens with optional built-in LVC

(Product must be ordered with "L" or "LS" suffix to be compatible.)

  • Tensioned Cosmopolitan Series
  • Cosmopolitan Series
  • Designer Contour Electrol



External control for screens without built-in LVC

  • Single Motor Low Voltage Control System (40973)
