Panasonic ET-FMP50
Overview
Panasonic ET-FMP50
Media Processor

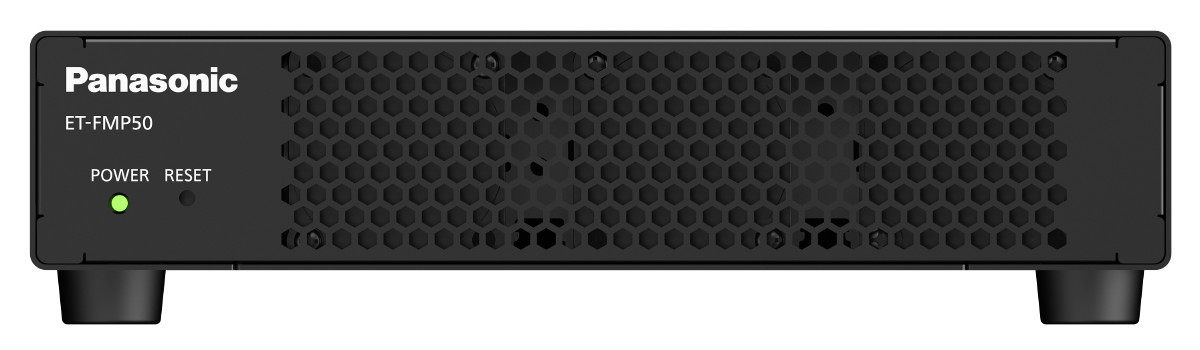

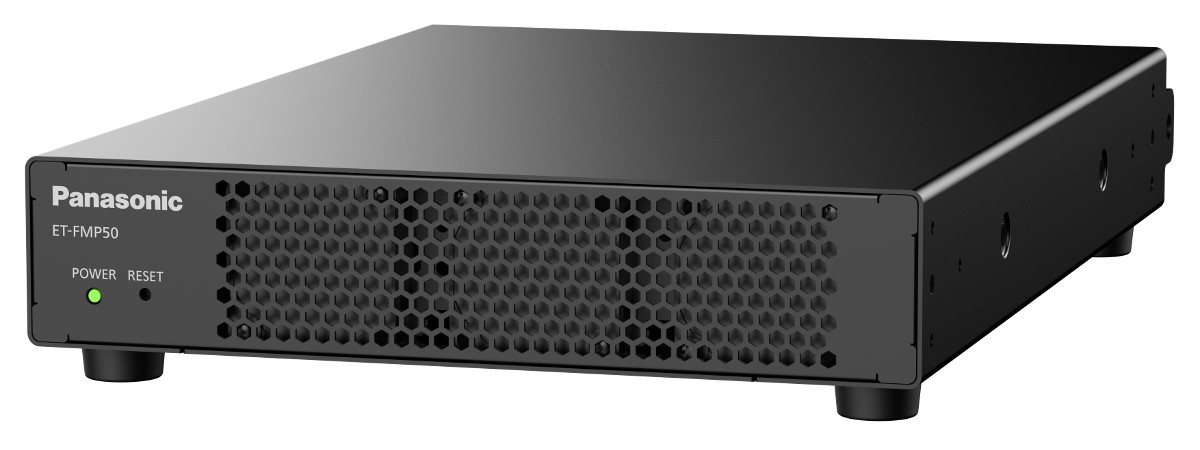

The Panasonic ET-FMP50 is a compact box-type media processor that can be conveniently placed near the projectors with connection via HDMI™.
Demand for immersive experiences has driven a need for multi-projection attractions, leading to more complex and labor-intensive workflows. Designed around the concept of “simpler, but better,” the ET-FMP50 is a media processor featuring camera-based warping/blending and 4K media playback capability. It eases the burden on teams when installing and adjusting multi-projection attractions, making operations more efficient and streamlined.
Working with NIKON® cameras, the ET-FMP50 automates complex warping/ blending processes with highly precise pixel-based adjustment. It can output a 3840 x 2160p signal or split it into 1080p quarters for 4x projectors via HDMI™. It also supports both H.264 and H.265 formats, as well as the HAP4 codec. Play content directly from the processor or over NDI®-compatible LAN.
Key Features:
- Flexible design streamlines installation, simplifying projection mapping with manual and automatic camera-based warping/blending and media playback functions.
- Simple, high-precision pixel-based adjustment minimally impacts image quality. Easily add immersive effects with free-shape, line-masking, and intuitive auto adjustment.
- Smooth and continuous content playback up to 4 TB
- Decodes H.264, H.265, and HAP formats at up to 300 Mbps.
- Simplifies AVoIP transmission with neat and cost-effective cable management.
Features
- Reduces the Cost and Complexity of Installation and Cabling: The ET-FMP50 is a compact box-type media processor that can be conveniently placed near the projectors with connection via HDMI™.
- Saves Time, Enhances Quality with Camera-based Adjustment: Working with NIKON® cameras1, the ET-FMP50 saves time by automating complex warping/blending processes with highly precise pixel-based adjustment that minimally impacts image quality for reliable reproduction of content. Easily add immersive effects with free-shape, line-masking, and intuitive auto adjustment. View the projection area from the camera’s perspective on a PC and click to designate an image display area: content splitting, geometric adjustment, and blending are performed automatically.
- Supports High-Quality Video Content: The ET-FMP50 can output a 3840 x 2160p signal or split it into 1080p quarters for 4x projectors via HDMI™. It decodes H.264, H.265, and HAP2 formats at up to 300 Mbps. Also, simplifies AVoIP transmission with neat and cost-effective cable management. Play content directly from the processor with media storage up to 4 TB or over NDI®-compatible LAN.
- Minimizes Carbon Footprint and Reduces Resource Usage: with a maximum power consumption of just 64 W and automated playback scheduling.
- Automatic content splitting via camera (resolutions up to 4K supported)
- Manual color-matching adjustment (automatic is TBA)
- Compatible with Multi Monitoring & Control Software3 (software functionality with ET-FMP50 Series is currently limited to on/off status monitoring only)
- Playback scheduling function
Notes
1 Compatible cameras (sold separately) comprise NIKON® D5200 / D5300 / D5500 / D5600 / D7500 / Z50.
2 Available via a firmware update from CY2025 Q1.
3 Download free from the Panasonic global projector website.
Specifications
| Type | Box-type | |

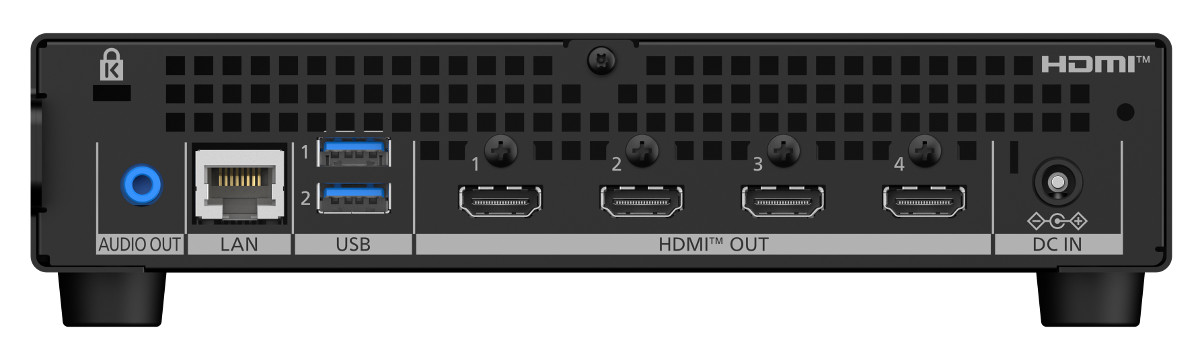

| Terminals | LAN | RJ-45 x 1 for network connection 10Base-T/100Base-TX, 1000Base-T, NDI® compatible |
| HDMI™ OUT 1/2/3/4 | HDMI™ x 4 Audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz) |
|
| Audio OUT | 3.5 mm stereo mini-jack | |
| Max. video output resolution | 3840 x 2160/60p1 x 1 or 1920 x 1080/60p x 42 | |
| Video format | HAP3 H.2644, 8-bit, 3840 x 2160 pixels, 60p, YPBPR 4:2:0, 300 Mbps H.2655, 8-bit, 4096 x 4096 pixels, 60p, YPBPR 4:2:0, 300 Mbps |
|
| Audio format | AAC-LC, 16-bit, stereo | |
| Storage | 4 TB | |
| Operating system | Linux | |
| Power supply | AC 100–240 V 50/60 Hz | |
| Maximum power consumption | 64 W | |
| Dimensions (W x H x D) | Approx. 8 9/32 in x 1 23/32 in x 11 5/8 in (210 x 44 x 295 mm) | |
| Weight | Approx. 4.41 lb (2.0 kg) excluding AC adapter and cord | |
| Operating environment | Operating temperature | 32–104 °F (0–40 °C) |
| Operating humidity | 10–80 % (no condensation) | |
Notes:
1 HDMI™ OUT 1 only, HDMI™ OUT 2/3/4 have a maximum resolution of 1920x1080/60p.
2 When four HDMI™ outputs are used simultaneously.
3 Available from CY2025 Q1. Compatible profiles:TBD
4 Compatible profiles: Baseline, Main, High (4:2:0)
5 Compatible profiles: Main (4:2:0)
