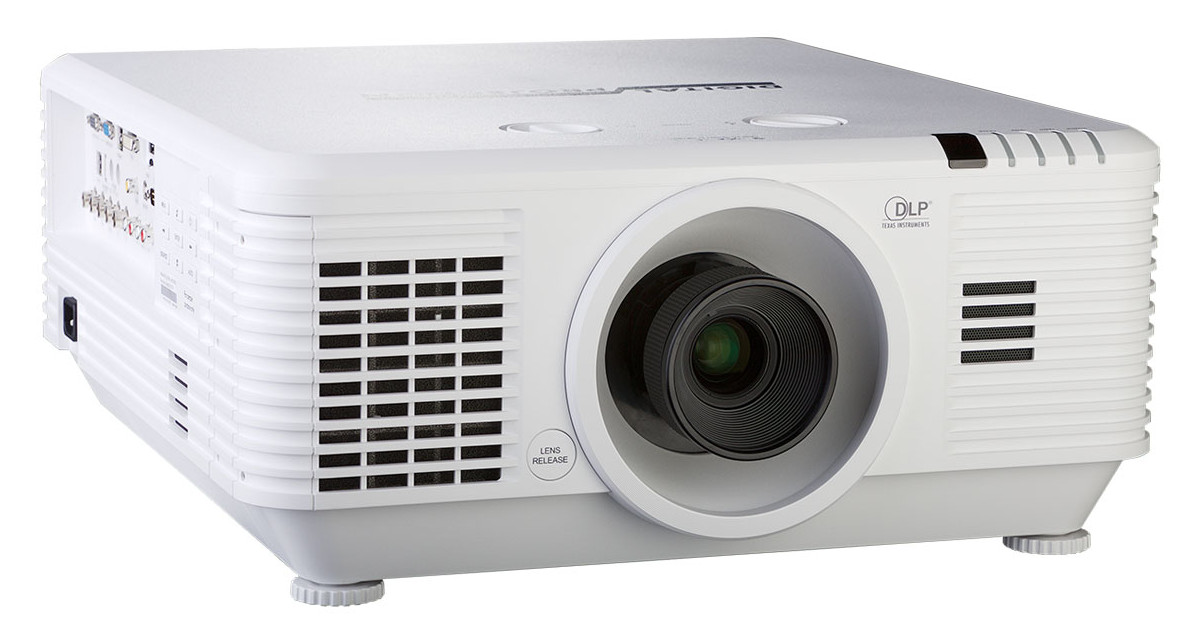

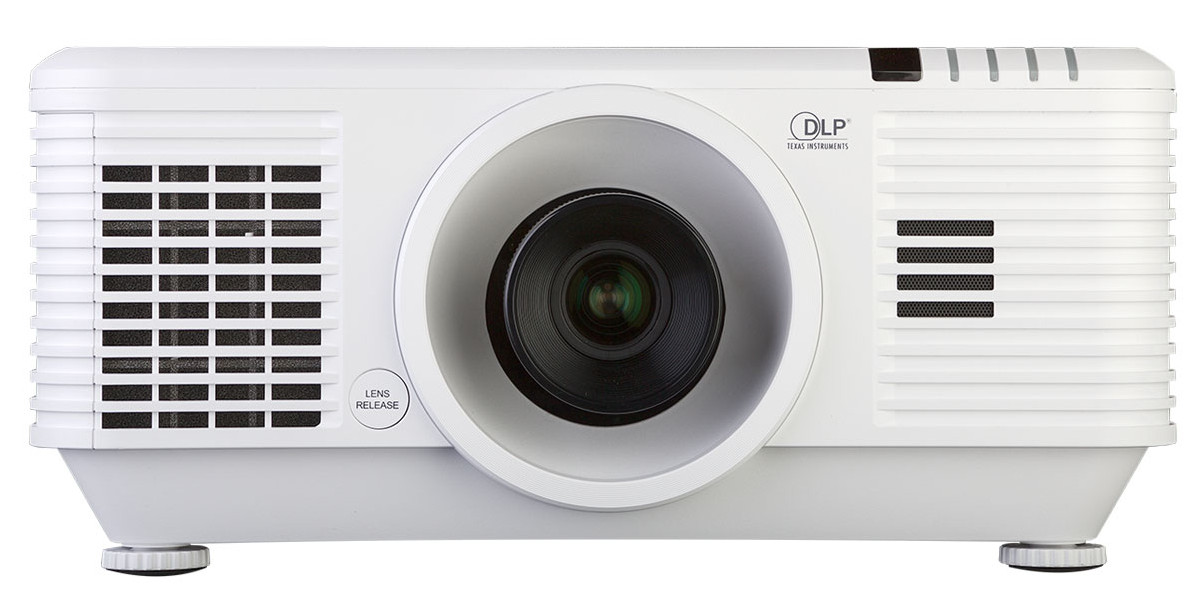

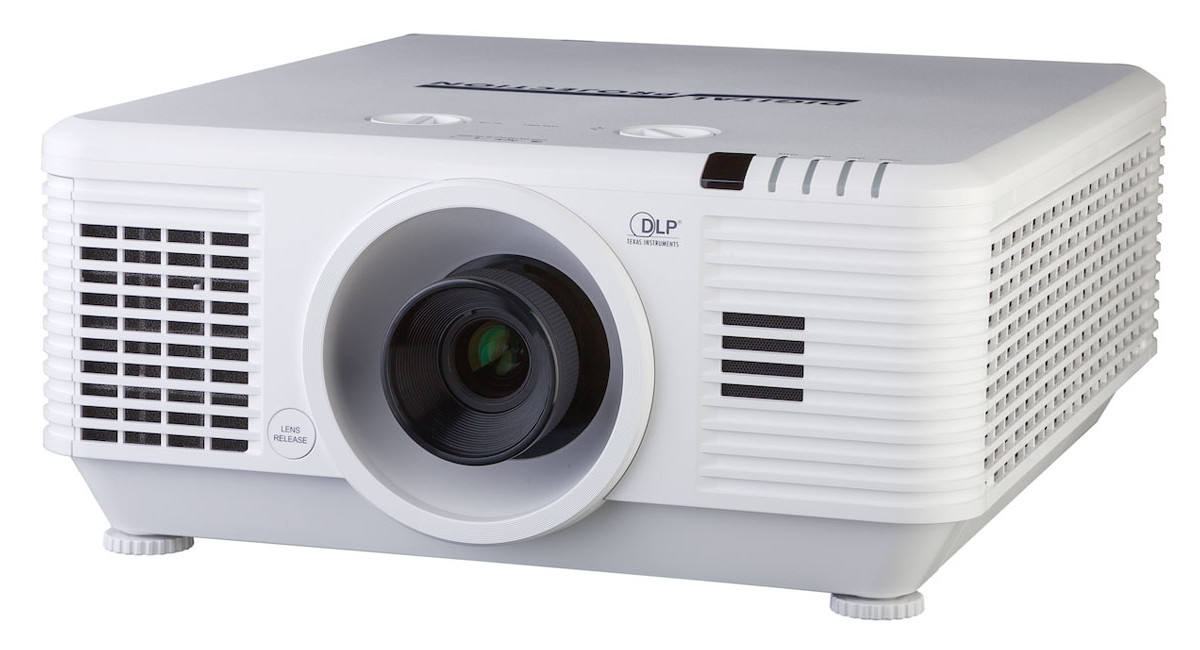

Digital Projection E-Vision Laser 6500 II

DP E-Vision Laser 6500 II DLP Projector, WUXGA, 6500 ANSI Lumens, No Lens, 3-Year Warranty
Item #0600-3001 Model #EVISION6500I

Overview

DP E-Vision 6500 II

Powerful, Cost Effective Single Chip Laser Projector

This solid-state E-Vision Laser 6500 II is a 6,500 ANSI lumen projector, with a WUXGA resolution and an improved contrast ratio of up to 20,000:1. Like all other lamp-free projectors from Digital Projection, the E-Vision Laser 6500 also offers 20,000 hours of stable illumination, and its compact chassis make it the ideal projector for applications where space is limited.

The projector can also be mounted in portrait, landscape and almost any angle in-between. The E-Vision Laser 6500 II produces bright, stable and colour-accurate imagery with remarkably low lifetime costs of ownership. All Digital Projection's lamp-free projectors have been developed with a "Fit and Forget" directive, delivering stunning visual entertainment with minimal maintenance throughout the lifetime of the display.

Key Features:
  • 6,500 ANSI Lumens
  • WUXGA Resolution
  • 20,000:1 Dynamic Contrast

Features

  • High Brightness: The E-Vision Laser 6500 II produces 6,500 ANSI lumens of brightness
  • Multi-Axis Orientation: For maximum flexibility, the E-Vision 6500 II can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

  • Geometry Correction: The E-Vision 6500 II has built-in cornerstone and keystone correction, which allow the correction of the image when the projector is mounted at an angle.

  • Low maintenance and lifetime cost of ownership: This projector delivers stunning visual entertainment with minimal maintenance throughout the lifetime of the display.
  • 3D Laser Projector: supports the following 3D formats:
    • Frame Packing
    • Side By Side (half)
    • Top and Bottom

  • 3-Year Warranty: Due to the proven reliability and long-term performance of their laser projectors, Digital Projection provides a full 3-year/20,000-hour warranty.

Specifications

Color System

Laser Phosphor / 4 Segment (RGBY) Colorwheel / 2x120 Hz
Display Type

1 x 0.67" DarkChip™ DMD™
DMD Specification

1920 x 1200 pixels native resolution.

Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio

16x10

KEY FEATURES

Video & Graphics Processing

  • HDMI 1.4 for Side by Side, Frame Packing & Top Bottom 3D Formats.
  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display).
  • Synchronization of active glasses.
  • 24p and 1080p native display.
  • Sealed light engine
  • DICOM Simulation Mode.

Geometry Correction

  • Cornerstone, Vertical & Horizontal Keystone

HDBaseT® Interface

  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 100 m from source with low cost cabling.
  • Projector Control via HDBaseT.
Source Compatibility
  • HDMI including Deep Color™ processing.
  • Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DVI-D, HDBaseT or VGA
  • Component Video (SD and HD) via RGBHV.
Input Terminals
  • VGA in x 1
  • DVI-D x 1
  • 5 BNC (RGBHV) x 1
  • Mini-jack Stereo x 1
  • Composite video x 1
  • HDMI (MHL) x 1, HDMI x 1
  • Audio RCA (R/L) x 1
  • 3D Sync in x 1
  • HDBaseT x 1
Output Terminals
  • VGA x 1
  • Audio RCA (R/L) x 1
  • USB Type A for power support on WHDI x 1
  • 3D-Sync out x 1
Control Terminals
  • RS-232 in x 1 ( for serial in for control )
  • RS-232 out x 1 (serial out for Pass thru Daisy Chain)
  • RJ45 x 1
  • Screen Trigger : DC Jack x 1 (DC12V 200mA output function)
  • Wired Remote In x 1
  • Wired Remote Out x 1
  • USB Type B for service x 1
Security

Kensington Security Slot, Security Bar
3D Formats Supported
  • Frame Packing
  • Side By Side (half)
  • Top and Bottom
HDTV Formats Supported 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz)
Computer Compatibility Up to 1920 x 1200
Bandwidth 165 MHz on analog RGB
165 Megapixels per second on HDMI
Remote Control IR remote control, wireless and wired.
On-Board keypad
Automation Control Crestron RoomView® Connected
PJLink - AMX SSDP
LAN
RS232 - AMX SSDP
Operation 24x7 operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses Lens not included. See Accessories tab for available lenses.
Lens Mount Manual shift, zoom & focus
Mechanical Mounting
  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet
Orientation
  • Table Top or Inverted: Yes
  • Pointing Up:               Yes
  • Pointing Down:           Yes
  • Roll (Portrait):            Yes
Power Requirements 100-240 V AC 50/60 Hz single phase
Power Consumption

650 W (Normal), 530 W (Eco),
Thermal Dissipation 2218 BTU/Hour
Fan Noise Max 37 dBA; Typical 35 dBA
Audio Speaker

Peak 10 W x 2
Temperature Operating: 32°F to 104°F (0° to 40°C)
Storage:    -4°F to 140°F (-20° to 60°C)
Operating Humidity 10 to 85% non-condensing
Weight 55.1 lb (25 kg)
Dimensions (LxWxH) 20.66" x 18.5" x 8.68" (525 x 470 x 220.5 mm)
Safety & EMC Regulations UL / cUL (USA/Canada), CB, CCC (China), FCC Class B (USA), FDA, CE (European Economic Area), RCM (Australia), Others TBD

Accessories

Optional Lenses

Part No. 114-785 119-001 116-207 119-430 114-783
Std Lens		 114-784 116-208

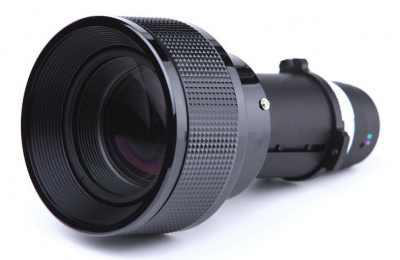

114-785 fixed lens No image 116-207 zoom lens No image 114-783 zoom lens 114-784 zoom lens 116-208 zoom lens
D:W
WUXGA		 0.77:1 0.77–1.1:1 1.10–1.30:1 1.25–1.60:1 1.54–1.93 1.93–2.91 3.00–5:00
F/stop 2.4 2.1 2.05–2.27 2.0–2.44 2.0–2.10 2.5–3.08 2.2–2.5
