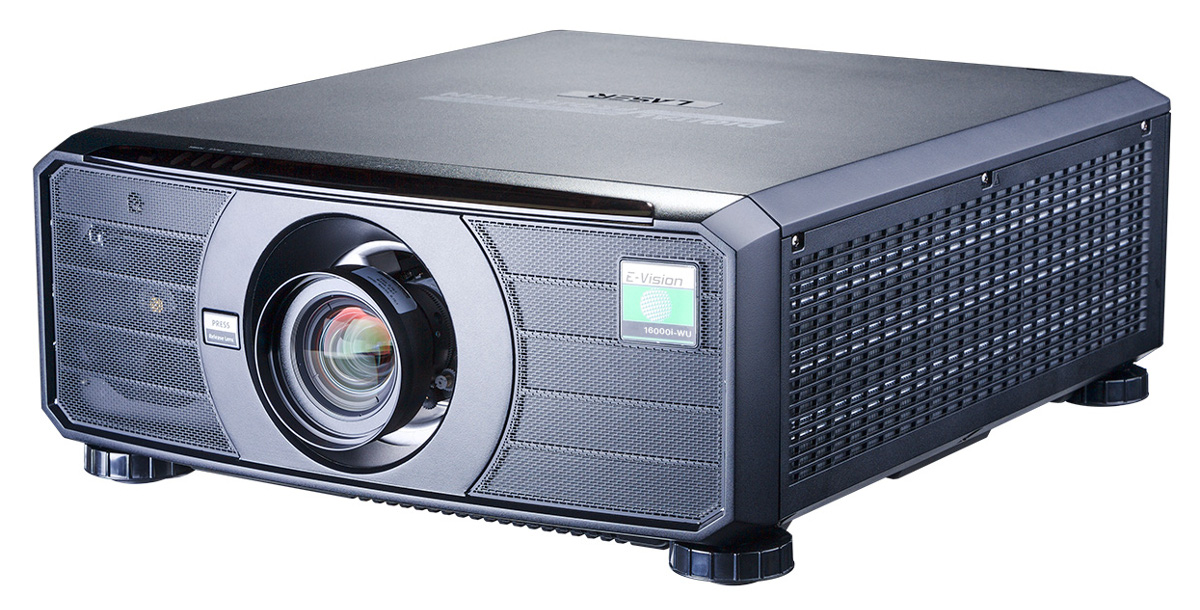

Digital Projection E-Vision 10000i

DP E-Vision 10000i 4K+ RGB Laser, 4K UHD+, 10,000 ISO Lumens (9,000 ANSI Lumens), No Lens, 3-Year Warranty
Item #0600-3002 Model #124375A

Overview

DP E-Vision 10000i 4K+ RGB

Another leap forward in projection technology — the new E-Vision 10000i RGB  an RGB illuminated 1-Chip projector. The single-chip E-Vision eliminates the artifacts and color separation commonly associated with projectors utilizing a conventional color wheel, while achieving 4K+ resolution, 10,000 ISO lumens, HDR without brightness decay, REC 2020 color space, and a dynamic contrast ratio of 10,000:1.

The new 0.8" DMD gave us the opportunity to harness all the improvements to advance the thing you told us matters the most in 1-Chip DLP® projectors: color!  Among other improvements, the DMD has been optimized for the color red. When coupled with our RGB Laser technology, this means you get colors, reds in particular, that were previously unachievable on a 1-Chip DLP® projector

Key Features:
  • 10,000 ISO / 9,000 ANSI Lumens
  • New 0.8" HEP DMD™ (High Efficiency Pixel)
  • 4K+ Resolution
  • 10,000:1 Dynamic Contrast
  • Sealed Optics
  • 20,000 Hours Illumination
  • Multi-Axis Orientation

Features

  • 0.8" HEP DMD: The E-Vision 10000i 4K+ UHD uses Texas Instruments Incorporated (TI) all new 0.8" HEP DMD, which brings a host of exciting features to elevate your viewing experience. Completely redesigned, the new 0.8" HEP DMD has an increased tilt angle which is more efficient and can be used to increase brightness and contrast.
  • High and Constant Brightness: The E-Vision 10000i 4K+ RGB produces 10,000 ISO/9,000 ANSI lumens of brightness. In addition, an internal light sensor keeps constant brightness output when initially operated at lower power.
  • Nexus, Next-generation Electronics Platform: has been designed to deliver the most advanced image processing to all projectors. Whichever Digital Projection projectors you use, you will be totally familiar with its operation, OSD menu structure and functionality, all of which are seamlessly integrated into the free Projector Control II software.
  • IP6x Sealed Optics: The optical system, from the laser light source up to the lens is completely sealed, giving it an IP6x rating. This ensures that light output and color performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimizing maintenance as no replacement or cleaning of filters is necessary, and allowing unrestricted airflow.
  • Source Redundancy: offers peace of mind for those critical live events. When the main signal is lost, the projector switches to the backup source automatically.
  • Flexible Geometry Adjustment: Image geometry can be intuitively adjusted via PC tool or Remote Controller with an on-screen grid that is synchronized with PC tool.
  • Art-Net Support: Stage controller with Art-Net can directly control the projector (power on/off/brightness adjustment) by network without the need for any DMX to-Net Converter.
  • Intelligent Lens Position Memory: can quickly reset the lens position defined by the user including focus, zoom and lens shift.
  • 24/7 operation: The E-vision 10000i 4K+ RGB boasts stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity to ensure peak performance and reliability.
  • Multi-Axis Orientation: For maximum flexibility, the E-Vision 10000i 4K+ RGB Laser projector can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
  • Built-in Edge Blending: Superbly capable edge blending and multi-projector tiling is provided by way of high bit depth processing that ensures a seamless, contiguous image can be created from multiple projectors.

  • 3-Year Warranty: Due to the proven reliability and long-term performance of their laser projectors, Digital Projection provides a full 3-year/20,000-hour warranty.

Specifications

Color System

Direct RGB Laser (no phosphor or color wheels)

Display Type

1 x 0.8" HEP DMD™ (High Effïciency Pixel)

DMD Specification

1920 x 1200 pixels native display (3840 x 2400 via 4-way pixel shift technology)

Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio

16:10

Fill Factor

87%

KEY FEATURES

RGB illumination

  • The new E-Vision 10000i 4K+ RGB - an RGB illuminated 1-Chip projector. The single-chip E-Vision eliminates the artifacts and color separation commonly associated with projectors utilising a conventional colour wheel, while achieving 4K+ resolution

Video & Graphics Processing

  • Nexus electronics platform
  • HDMI 2.0
  • DisplayPort 1.2
  • 10-bit colour processing (30-bits per pixel) 1,073,741,824 colours
  • Hue, Saturation and Gain colour management.
  • 24p and 1080p native display.
  • HDR support
  • Input source automaticaly detected
  • Selectable Dynamic Black
  • DICOM simulation mode
  • Optics engine sealed to IP6X

Geometry Correction

  • Vertical & Horizontal Keystone correction
  • Four Corner adjustment
  • Rotation -100 to +100 with +/- 0.25° per step
  • Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled
  • Digital Zoom 0% ~ 100%
  • Blanking control for custom input window sizing.
  • Scaling for fíxed aspect ratio screens.16:10 / 16:9 / 4:3 / 2.35:1
  • Custom warp

Edge Blending

  • Correction for non-active pixels at the edge of the display.

HDBaseT® Interface

  • Built in support for transmission of uncompressed High Defínition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from the source with low cost cabling.
  • HDBaseT® Includes Ethernet 100BaseT and RS232/IR control.

Color Processing

  • Powerful seven point color correction for accurate color matching.

Projector LAN Control

  • Free Digital Projection Projector Controller II software
  • Intuitive user interface for network control.
  • At-a-glance monitoring of projector status.
  • Simultaneous control of user-defíned groups of projectors.
Source Compatibility
  • 12G-SDI, Supports a high data transfer rate of up to 12 gigabits per second (Gbps), enabling the transmission of uncompressed 4K UHD (Ultra High Definition) video signals with a single connector
  • Graphics standards up to WUXGA 1920 x 1200 - 120Hz RB, Up to WQXGA 2560 x 1600 60Hz RB (DisplayPort)
  • Video standards including HDTV 1080p - 60Hz and 4K-UHD (3840 x 2160) 60Hz
  • Support for colour gamuts up to P3
INPUTS/OUTPUTS

Video & Computer

  • HDMI 2.0 (HDCP compatible) x 2
  • DisplayPort 1.2 x 2
  • HDBaseT x 1
  • 12G-SDI in x 1
  • 3G-SDI out x 1

Communication & Control

  • 3D Sync In x 1
  • 3D Sync Out (loop through) x 1
  • 3D Sync Out for IR x 1
  • LAN / Art-Net x 1
  • HDBaseT/Ethernet/RS232/IR x 1
  • Serial In RS-232C x 1
  • Serial Out RS-232C x 1
  • Wired Remote In x 1
  • Wired Remote Out x 1
  • 12V Trigger 12V 350mA x 1
  • USB Power out 5V/2A x 1
3D Formats Supported
  • Off
  • Auto
  • Side by Side
  • Top and Bottom
  • Dual Pipe
  • Frame Sequential
HDTV Formats Supported EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), 4K-UHD (3840 x 2160), DCI 4K (4096 x 2160)
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Remote Control Infrared/Wired Remote Control Unit
Automation Control
  • LAN - Webpage control
  • TCP/UDP control
  • RS-232
  • Alert Mail for Projector
  • LAN Control-Crestron® Connected
  • LAN Control-PJ Link Class 1 compatible
  • LAN Control-AMX® Device Discovery
  • Art-Net (DMX) control
Operation 24x7 operation
illumination Type RGB Laser
Typical illumination Life 20,000 hours
Lenses Lens not included. See Accessories tab for available lenses.
Lens Mount
  • Centred lens for installation flexibility
  • Motorized and programmable shift, zoom and focus.
  • Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
Mechanical Mounting
  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet
  • Ceiling Mount compatible chassis with 6 off M4*0.7 mounting holes available; maximum screw length 16 mm
Orientation
  • Table Top or Inverted: Yes
  • Pointing Up:               Yes
  • Pointing Down:           Yes
  • Roll (Portrait):            Yes
Power Requirements 100-240 V AC 50/60 Hz single phase
Power Consumption

800 W

Thermal Dissipation TBD
Fan Noise Normal mode: 36 dBA
Typical Silence mode: max 33 dBA
Temperature Operating: 32°F to 104°F (0° to 40°C)
Force ECO over 95°F (35°C)
Operating Humidity 90% (with maximum temperature of 95°F/35°C)
Weight 64.8 lb (29.4 kg)
Dimensions (LxWxH) 23.54" x 19.68" x 8.58" (598 x 500 x 218 mm)
Safety & EMC Regulations TBD

Accessories

Optional Lenses

Part No. 124-318* 124-319 124-320 124-321 124-322 124-323
No image No image No image No image No image No image
D:W
WUXGA/UHD+
(0.8" chip)
0.31–0.33:1 0.550.75:1  0.74–1.08:1 1.05–1.41:1 1.4–2.11:1 2.1–4.0:1
F/stop 2.052.06 2.03–2.34 2.02–2.33 1.9–2.08 1.8–2.11 1.9–2.44

* UST (90° Type)
