Digital Projection Titan Laser 26000

DP Titan Laser 26000 3-DLP 4K UHD, 22,500 ANSI Lumens, No Lens, Refurbished, 3-Year Warranty
Item #0600-3010 Model #MLFF26RDACW
$35,650.00
Price

Overview

DP Titan Laser 26000

Ultra bright 4K-UHD 3-Chip Laser Projector for Large Venues

The Titan Laser 26000 delivers up to 25,000 (ISO) or 22,500 (ANSI) lumens from a relatively compact chassis, making it the ideal projector for the most demanding of large-venue applications. Where bright, pin sharp images are required, there should be no compromise.

This class-leading 3-Chip DLP projector uses the very latest in connectivity, including DisplayPort, HDMI 2.0 and HDBaseT. The advanced electronics also bring HDR processing to the large-venue class of projectors, and features such as Constant Brightness Control and DMX Art-Net compatibility make it the idea solution for high profile events and fixed installations.

As would be expected for a projector in this class, the TITAN Laser 26000 comes with features such as Non-linear Warp, Geometry Correction, Edge Blending, Picture-in-Picture and much more as standard.

Users of the TITAN Laser 26000 in live environments will also benefit from the real-time clock for on/off automation, email alerts and PC-based central control software. An optional lens adaptor allows a variety of non-Digital Projection lenses to be used with the TITAN, thus overcoming the penalty of investment in new glass when upgrading to the latest projection technology

Note: A lens is not included. Please see the Accessories tab for optional lenses.



Key Features:
  • Up to 25,000 ISO / 22,500 ANSI Lumens
  • 4K-UHD Resolution
  • 18,000:1 Dynamic Black Contrast Ratio
  • Sealed Optics
  • 20,000 Hours Illumination
  • Multi-Axis Orientation



Features

  • Ultra Brightness: This 3-Chip DLP laser projector provides unbelievable brightness with up to 25,000 (ISO) or 22,500 (ANSI) lumens from a relatively compact chassis.
  • 4K-UHD Resolution and 18,000:1 Dynamic Black Contrast Ratio: for pin-sharp images even in the most demanding of large-venue applications.
  • IP60 Sealed Optics: The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust.
  • Filterless: The Titan Laser 26000 is completely filterless, as the system is liquid-cooled and uses a radiator heat exchanger. This minimizes maintenance since no replacement or cleaning of filters is necessary and allows unrestricted airflow.
  • SmartStack System: The intuitive stacking mechanisms means that TITAN Laser projectors can be lock-stacked without any additional rigging frames or expense.

  • Projector Controller Software: Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for setup and configuration — all from a single network-enabled PC.

  • MultiAxis Orientation: For maximum flexibility, all TITAN Laser projectors can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

  • Real-time clock: Users of the TITAN Laser projectors in live environments also benefit from the real-time clock for on/off automation, email alerts, and PC-based central control software.
  • TAA Compliant: Digital Projection is always pushing to innovate and improve the quality of their remarkable visual solutions.  Toward that end, most of their award-winning laser projectors are now TAA compliant, providing more choices and options for those wanting the very best in projection technology.

  • 3-Year Warranty: Due to the proven reliability and long-term performance of their laser projectors, Digital Projection provides a full 3-year/20,000-hour warranty.

For more features, please see the Specifications tab.

Specifications

Color System

Laser Phosphor

Display Type

3 x 0.96" WUXGA DMD™

Brightness 25,000 ISO / 22,500 ANSI Lumens @ 4K-UHD
28,000 ISO / 25,000 ANSI Lumens @ WUXGA
DMD Specification Display capability up to 4K-UHD (3840x2160)
8.3 megapixels on screen at 4K-UHD
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio

16:9

Contrast Ratio

18,000:1 Dynamic Black / 2,000:1 Native

Fill Factor

N/A as Smooth Picture DMD

KEY FEATURES

Video & Graphics Processing

  • DisplayPort 1.2
  • 2 x HDMI 2.0b HDCP 2.2
  • HDR processing
  • 2 x HDMI 1.4b HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
  • Sequential Processing: 3D via single HDMI 1.4b input
  • Dual Pipe Processing: 3D Left and Right eyes via two HDMI1.4b inputs.
  • Synchronization of active glasses.
  • 3G-SDI with loop-through.
  • DICOM simulation mode.
  • DMX Art-Net

General Features

  • Constant Brightness control
  • Multi-Projector Brightness control
  • Compatible with selected competitor lenses via lens converter
  • Selectable EDID
  • Custom Start-up Logo

Geometry Correction

  • 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation
  • Non-linear warp
  • Digital Zoom, Pan and Scan
  • Blanking control for custom input window sizing.
  • Scaling available for fixed aspect ratio screens.
  • Unscaled processing for pixel mapped display

Edge Blending

  • Blending control available for all sides with width control.
  • Correction for non-active pixels at the edge of the display.
  • Electronic Black Level Compensation.

Picture-in-Picture

  • Two sources can be displayed simultaneously using 2D inputs, either picture-in-picture (PIP) , or side by side (PBP), with the original aspect ratios maintained.

HDBaseT® Interface

  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
  • Allows projector to be placed up to 100 m from source with low cost cabling
  • Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:2:2

Color Processing

  • Four color modes available
  • Powerful seven-point color correction for accurate color matching with presets.
  • Easy color temperature selection
  • Manual seven-point color adjustment
  • Traditional lifts and gains

Projector Controller Software

  • Intuitive user interface for network control
  • Simultaneous control of user-defined groups of projectors
  • At-a-glance monitoring of projector status

Projector Automation

  • Real-time clock provides daily on/off automation
  • E-mail alerts for system status
Source Compatibility
  • 2D Graphics standards up to 4K-UHD 3840x2160 resolution at 60  Hz via HDMI 2.0, HDBaseT (4:2:0), DisplayPort inputs
  • 3D Graphics standards up to dual-pipe WUXGA 120Hz via HDMI 1.4b inputs
  • 3G-SDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
WUXGA mode
  • 2D sources up to WUXGA 120 Hz and 4K-UHD 60 Hz can be displayed scaled to fit WUXGA
  • 3D sources up to WUXGA 120 Hz can be displayed scaled to fit WUXGA
4K-UHD mode
  • 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD
Auto Mode
  • Sources greater than WUXGA will be displayed scaled to fit 4K-UHD
  • Sources up to WUXGA will be displayed scaled to fit WUXGA
INPUTS/OUTPUTS

Video & Computer

  • DisplayPort 1.2 (2D) x1
  • HDMI 1.4b (3D) x2
  • HDMI 2.0b (2D) x2
  • 3G-SDI in (2D) (BNC) x1
  • 3G-SDI out (BNC) x1
  • HDBaseT/LAN (2D) (RJ45) x1

Communication & Control

  • 3D Sync In (BNC) x1
  • 3D Sync Out (BNC) x1
  • LAN (RJ45) x2
  • RS-232 (9-pin D-Sub) x1
  • Wired Remote (3.5 mm Stereo Jack) x1
  • 12V Trigger (3.5 mm Stereo Jack) x2
  • 3D Sync IR Out (BNC) x1
3D Formats Supported
  • Sequential / 1080p @100 Hz
  • Sequential / 1080p @120 Hz
  • Sequential / WUXGA @100 Hz (RB)
  • Dual-Pipe / 1080p @ 50 Hz
  • Dual-Pipe / 1080p @ 60 Hz
  • Dual-Pipe / WUXGA @ 50 Hz (RB)
  • Dual-Pipe / WUXGA @ 60 Hz
HDTV Formats Supported
  • 1080p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
  • 1080i (50 Hz, 60 Hz)
  • 720p (50 Hz, 60 Hz)
  • 2K (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
  • 4K-UHD (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
Computer Compatibility 2D 4K-UHD up to 60 Hz
3D Supported Formats will be displayed up to WUXGA
Remote Control Addressable IR remote control, wireless and wired. On-board keypad
Automation Control
  • Crestron RoomView Connected
  • LAN
  • RS-232
  • AMX (Device Discovery)
  • DMX Art-Net
  • Served web pages (Projector status, Projector control, Crestron RoomView, Network settings, Alert mail setup, Time setup, Error log, On screen Display )
Color Temperature 3200K to 9300K
Operation 24x7 operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses Lens not included. See Accessories tab for available lenses.
Lens Mount Motorized Shift, Zoom and Focus. Intelligent Lens Memory with 10 user-definable pre-set positions for zoom lenses.
Mechanical Mounting
  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet
Orientation
  • Table Top or Inverted: Yes
  • Pointing Up:               Yes
  • Pointing Down:           Yes
  • Roll (Portrait):            Yes
Power Requirements 200–230 V AC 50/60 Hz single phase
Power Consumption

Typical: 2800 W, Maximum: 3100 W

Thermal Dissipation Max 10284 BTU/Hour @ 230 V AC
Fan Noise Typical: 50 dBa, Max: 52 dBa, Eco Typical: 47 dBa
Temperature Operating: Full Power 32°F ~95°F (0°C ~ 35°C), ECO up to 104°F (40°C)
Storage: -4°F ~ 140°F (-20°C ~ 60°C)
Humidity Operating: 10% ~ 90% non-condensing
Storage:    10% ~ 90% non-condensing
Weight 209 lb (95 kg)
Dimensions (LxWxH) 38.2" x 25.6" x 15.6" (969.3 x 650 x 397.3 mm) excluding handles
Safety & EMC Regulations UL, CB, CCC, KC, RoHS (CN), FCC Class A, FDA, CE, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 3, WEEE (UK)

Accessories

Optional Lenses

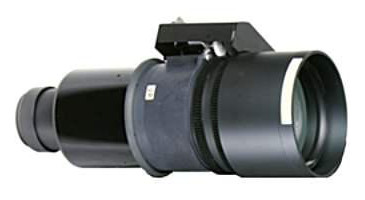

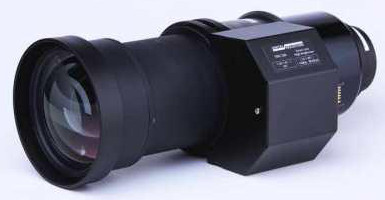

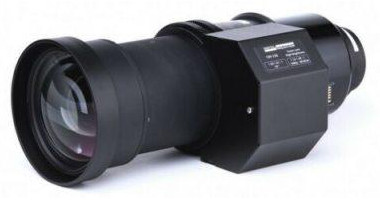

Part No. 120-510 120-511 120-827 109-236 105-610 105-611 105-612 105-613 109-235
No image No image No image No image No image No image No image No image No image
D:W
4K UHD
0.37:1 0.650.85:1  0.8–1.16:1 1.16–1.49:1 1.39–1.87:1 1.87–2.56:1 2.56–4.16:1 4.16–6.96:1 6.92–10.36:1
F/stop TBD TBD TBD TBD TBD TBD TBD TBD TBD
Notes Right Angled Right Angled Includes support bracket



Other Accessories

Infrared Remote Control — Replacement (118-678)
Optional lens mount insert for selected third party lenses (119-729)
