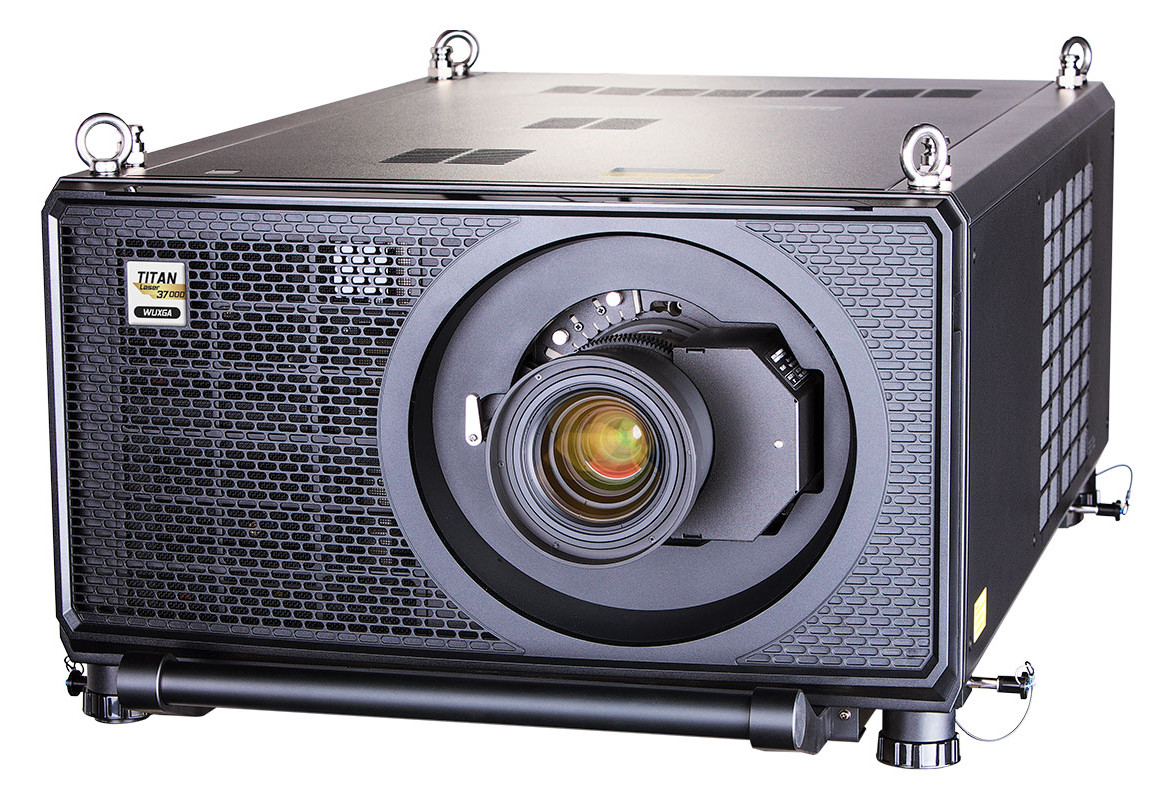

Digital Projection Titan Laser 29000 WU
Overview
DP Titan Laser 29000 WU
Ultra bright WUXGA 3-Chip Laser Projector for Large Venues
The Titan Laser 29000 WU delivers up to 29,000 ISO or 26,000 ANSI lumens from a relatively compact chassis, making it the ideal projector for the most demanding of large-venue applications. Where bright, pin sharp images are required, there should be no compromise.
This class-leading 3-Chip DLP projector uses the very latest in connectivity, including DisplayPort, HDMI 2.0 and HDBaseT. The advanced electronics also bring HDR processing to the large-venue class of projectors, and features such as Constant Brightness Control and DMX Art-Net compatibility make it the idea solution for high profile events and fixed installations.
As would be expected for a projector in this class, the TITAN Laser 29000 WU comes with features such as Non-linear Warp, Geometry Correction, Edge Blending, Picture-in-Picture and much more as standard.
Users of the TITAN Laser 29000 WU in live environments will also benefit from the real-time clock for on/off automation, email alerts and PC-based central control software. An optional lens adaptor allows a variety of non-Digital Projection lenses to be used with the TITAN, thus overcoming the penalty of investment in new glass when upgrading to the latest projection technology
Note: A lens is not included. See Accessories tab for optional lenses.
Key Features:
- Up to 29,000 ISO / 26,000 ANSI Lumens
- WUXGA Resolution
- 18,000:1 Dynamic Black Contrast Ratio
- Sealed Optics
- 20,000 Hours Illumination
- Multi-Axis Orientation
Features
- Ultra Brightness: This 3-Chip DLP laser projector provides unbelievable brightness with up to 29,000 (ISO) or 26,000 (ANSI) lumens from a relatively compact chassis.
- WUXGA Resolution and 18,000:1 Dynamic Black Contrast Ratio: for pin-sharp images even in the most demanding of large-venue applications.
-
IP60 Sealed Optics: The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust.
-
Filterless: The Titan Laser 29000 WU is completely filterless, as the system is liquid-cooled and uses a radiator heat exchanger. This minimizes maintenance since no replacement or cleaning of filters is necessary and allows unrestricted airflow.
-
SmartStack System: The intuitive stacking mechanisms means that TITAN Laser projectors can be lock-stacked without any additional rigging frames or expense.
-
Projector Controller Software: Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for setup and configuration — all from a single network-enabled PC.
-
MultiAxis Orientation: For maximum flexibility, all TITAN Laser projectors can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
- Real-time clock: Users of the TITAN Laser projectors in live environments also benefit from the real-time clock for on/off automation, email alerts, and PC-based central control software.
-
TAA Compliant: Digital Projection is always pushing to innovate and improve the quality of their remarkable visual solutions. Toward that end, most of their award-winning laser projectors are now TAA compliant, providing more choices and options for those wanting the very best in projection technology.
-
3-Year Warranty: Due to the proven reliability and long-term performance of their laser projectors, Digital Projection provides a full 3-year/20,000-hour warranty.
For more features, please see the Specifications tab.
Specifications
|
Color System |
Laser Phosphor |
| Display Type |
3 x 0.96" WUXGA DMD™ |
| Brightness | 29,000 ISO / 26,000 ANSI Lumens |
| DMD Specification | Display capability up to WUXGA resolution (1920x1200) 2.3 megapixels pixels on screen at WUXGA Fast transit pixels for smooth greyscale and improved contrast. |
| Aspect Ratio |
16:10 |
| Contrast Ratio |
18,000:1 Dynamic Black / 2,000:1 Native |
|
Fill Factor |
87% |
|
KEY FEATURES |
Video & Graphics Processing
General Features
Geometry Correction
Edge Blending
Picture-in-Picture
HDBaseT® Interface
Color Processing
Projector Controller Software
Projector Automation
|
| Source Compatibility |
|
| INPUTS/OUTPUTS |
Video & Computer
Communication & Control
|
| 3D Formats Supported |
|
| HDTV Formats Supported |
|
| Computer Compatibility | 2D 4K-UHD up to 60 Hz 3D Supported Formats will be displayed up to WUXGA |
| Bandwidth | 498 Mpixels/sec via DisplayPort and HDMI2.0. |
| Remote Control | Addressable IR remote control, wireless and wired. On-board keypad |
| Automation Control |
|
| Color Temperature | 3200K to 9300K |
| Operation | 24x7 operation |
| illumination Type | Laser Light Source |
| Typical illumination Life | 20,000 hours |
| Lenses | Lens not included. See Accessories tab for available lenses. |
| Lens Mount | Motorized Shift, Zoom and Focus. Intelligent Lens Memory with 10 user-definable pre-set positions for zoom lenses. |
| Mechanical Mounting |
|
| Orientation |
|
| Power Requirements | 200–230 V AC 50/60 Hz single phase |
| Power Consumption |
Typical 2800 W, Max 3100 W |
| Thermal Dissipation | Max 10284 BTU/Hour @ 200 V AC |
| Fan Noise | Typical: 50 dBa, Max: 52 dBa, Eco Typical: 47 dBa |
| Temperature | Operating: Full Power 32°F ~95°F (0°C ~ 35°C), ECO up to 104°F (40°C) Storage: -4°F ~ 140°F (-20°C ~ 60°C) |
| Humidity | Operating: 10% ~ 90% non-condensing Storage: 10% ~ 90% non-condensing |
| Weight | 209 lb (95 kg) |
| Dimensions (LxWxH) | 38.2" x 25.6" x 15.6" (969.3 x 650 x 397.3 mm) excluding handles |
| Safety & EMC Regulations | UL, CB, CCC, KC, RoHS (CN), FCC Class A, FDA, CE, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 3, WEEE (UK) |
Accessories
Optional Lenses
| Part No. | 120-510 | 120-511 | 105-607 | 120-827 | 105-608 | 109-236 | 105-610 | 105-611 | 105-612 | 105-613 | 109-235 |
 |
|
|
|
|
|
|
|
|
|
|
|
| D:W WUXGA |
0.37:1 | 0.65–0.85:1 | 0.67:1 | 0.8–1.16:1 | 1.12:1 | 1.16–1.49:1 | 1.39–1.87:1 | 1.87–2.56:1 | 2.56–4.16:1 | 4.16–6.96:1 | 6.92–10.36:1 |
| F/stop | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Notes | Right Angled | Right Angled | Includes support bracket |
Other Accessories
| Infrared Remote Control — Replacement (118-678) | ||
| Optional lens mount insert for selected third party lenses (119-729) |
