Digital Projection 116-207
DP 116-207 1.1-1.3:1 Short Throw Zoom Lens
Item #0600-3105 Model #5811120054SDP
Specifications
DP 116-207 Short Throw Zoom Lens

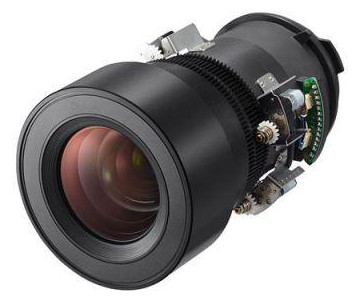

The Digital Projection 116-207 lens is a short throw zoom lens with throw ratio range of 1.10~1.30:1 at 1080p/WUXGA resolution. This lens has an F-stop of 2.05~2.27, and an effective focal length of 16.64~19.54 mm. It can be remotely focused using the power focus feature.
It is designed for Digital Projection E-Vision 4500 and 6500 laser projectors.
Specifications
| Throw ratio | 1.10~1.30:1 |
| F-stop | 2.05~2.27 |
| Focal length | 16.64~19.54 mm |
| Optimized Focus Range * |
3.3–29.5 ft (1–9 m) |
| Lens shift | Vertical: 15% down, 55% up Horizontal: 5% left, 5% right |
* Lens focal ranges above are the optimized distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances for E-Vision Series: ±3%.
