Epson BrightLink 1470Ui

LCD Laser Projector, 1920x1200 WUXGA, 4000 Lumens, No Wall Mount, 3 year warranty
Part #: 0600-4266    Mfr #: V11H876520

Epson BrightLink 1470Ui

Overview

Epson BrightLink Pro 1470Ui

The world’s first interactive laser display for modern meeting spaces

Powered by breakthrough laser technology, the BrightLink Pro 1470Ui transforms yesterday’s conference room into tomorrow’s collaborative meeting space. Unite people, ideas and technology in a seamless digital experience.

The BrightLink Pro 1470Ui facilitates better communication by turning nearly any flat surface interactive, displaying larger-than-life, Full HD WUXGA images up to 100" diagonal.

Plus, it delivers a laser light source that lasts up to 20,000 hours. Additional features include 4,000 lumens of color/white brightness, enterprise-level wireless security and whiteboard sharing for local and remote collaboration.



Key Features

  • Up to 100-inch superb laser display: Full HD WUXGA resolution with Epson's 3LCD technology
  • All-in-one meeting solution: Combines multiple office resources in one interactive collaboration device
  • Increase integration and collaboration: Share content from a range of devices simultaneously
  • Sliding Split Screen: Two displays in one - project images from different sources simultaneously
  • Remote whiteboard sharing mode: Create, collaborate, and share meetings notes with participants

Features

  • Reinvent your whiteboard — turn nearly any flat surface into a 100" interactive display for creativity, collaboration and more efficient meetings
  • Bright display — 4,000 lumens color/white brightness2
  • Breakthrough laser technology — features a laser light source that lasts up to 20,000 hours1; plus, get higher image contrast and Instant ON/OFF
  • Full HD WUXGA display up to 100" diagonal — for an optimal viewing experience and clear readability — over 2x as big as a 70" flat panel
  • Robust integrated wireless networking — enterprise-level security for peace of mind; compatible with WEP, WPA, WPA2-PSK and WPA2-EAP security protocols
  • Whiteboard sharing — both local and remote participants can simultaneously annotate content from mobile devices, computers and other BrightLink Pros
  • DuoLink — install two displays side-by-side to create one seamless interactive surface up to 177" diagonal3
  • Enhanced wireless display technology — connect up to 50 Mac®, PC, iOS® and Android™ devices, and simultaneously display up to four screens, with Epson iProjection™4; also supports wireless screen mirroring via Miracast® or AirPlay® (requires Apple TV®)
  • Easy, touch-enabled interactivity — just turn it on and write; or, connect a PC or videoconferencing system for even more functionality
  • Convenient DVI-out connectivity — share whiteboard content to a larger display, videoconferencing system or recording device

Eco Features

  • Recyclable product5
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner6

Notes:

1 No required maintenance for the light source up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector comes with a 3-year limited warranty.


2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 Certain functionality is only available through Epson Interactive Tools (EIT) software. For a list of supported operating systems, visit www.epson.com

4 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technology
Projection Method: Front / wall mount / table
Driving Method: Epson Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Color Brightness - Color Light Output: 4000 lumens
White Brightness - White Light Output: 4000 lumens
Aspect Ratio: 16:10
Resolution: 1920 x 1200 (WUXGA)
Size - projected distance: (16:10) 70" – 100"
Keystone Correction: Vertical:     ±3 degrees
Horizontal: ±3 degrees
USB Plug 'n Play: Mac®10.7 or later
Windows Vista® or later
Contrast Ratio: Up to 2,500,000:1
Color Reproduction: Up to 1 billion colors
Light Source Life: 20,000 hours (Normal); 30,000 hours (Extended)
Laser Type: Laser Diode

General:

Operating Temperature: 41° to 104° F (5° to 40° C)
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz
Power Consumption: ECO mode: 348 W
Normal mode: 448 W
Dimensions (WxDxH): 19.5" x 17.2" x 6.8" (including feet)
Weight: 25.1 lb (4.6 kg)

Projection Lens:

Type: Manual focus
F-number: 1.60
Focal Length: 4.2 mm
Zoom Ratio: Digital zoom 1.0 – 1.35x
Throw Ratio Range: (16:10) 0.22 – 0.37, (4:3) 0.33 – 0.44, (16:9) 0.27 – 0.37

Projector Details:

Standard Connectivity: Connection to the Computer: Via USB cable or wired/wireless LAN Software System Compatibility: Epson Easy Interactive Driver for Mac only; Windows® driver for Multi Projection; Windows (single projector) and Linux: No driver required Mac: Mac OS X® 10.7.x or later

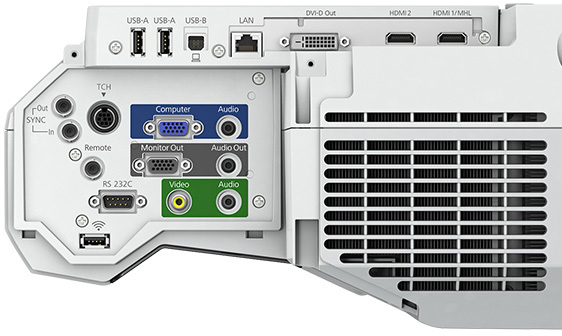

Interfaces: 1x HDMI®
1x HDMI/MHL®
Computer/Component video: 1x D-sub 15 pin
Composite video: 1x RCA (Yellow)
Audio in: 2x Mini stereo
USB connector: 1x Type B
(USB display, audio and mouse control interactivity) USB connector: 2x Type A
(USB memory/document camera) 1x RJ-45
Serial: 1x RS-232c
Monitor Out: 1x D-sub 15 pin
Audio Out: 1x Mini stereo
Wireless LAN port: 802.11 b/g/n (included)
Interactive Synchronization Mini stereo In
Interactive Synchronization Mini stereo Out
Touch Unit Connection Port
DVI-Out
Remote
Speaker: 16 W monaural
Fan Noise: Quiet mode:     27 dB
Normal mode:  38 dB

Remote Control:

Features: Source search, HDMI, Computer, LAN, Power, Aspect, Color mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Pointer, User, Pen mode, Split, Home, ID, Link menu, Page-up, Page-down
Operating Distance: 19.7 ft (6 m)
Operating Angle: Front:
Right / Left: ±30 degrees
Upper / Lower: 0 to +60 degrees

Interactive Specifications:

Interactive Modes: Whiteboard Mode: 2x pens and 6x fingers
PC-free Annotation Mode: 2x pens and 2x fingers
Computer Interactivity Mode, Easy Interactive Tools: 2x pens and 6x fingers
Calibration Method: Automatic or Manual
Interactive Area: 70" – 100" diagonal (16:10, WUXGA)
System Compatibility: Microsoft® Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) Mac OS 10.7/10.8/10.9/10.10/10.11/macOS™ 10.12.x, UBUNTU 15.10, 16.04 LTX, 16.10, 17.04
PC-Free Annotation Tools: Yes

Interactive Input Device:

Type of Interactive Input Device: Digital pen or finger
Interactive Pen Power: AA battery
Interactive Pen Weight: 1.1 oz (without battery)
Interactive Pen Dimensions: 6.3" (L) x 0.95" (W)
Compatible Pen Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx (The suffix “x” can be blank or A-Z)

Interactive Software

Easy Interactive Tools Compatibility: Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver not required Mac: Mac OS X 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x Epson Easy Interactive Tools for Windows and Mac

Warranty

Three-Year Projector Limited Warranty



What's In The Box:

  • BrightLink Pro 1470Ui
  • 802.11 b/g/n wireless module
  • Quick Setup Guide
  • Power cable
  • USB A/B cable (x3)
  • Projector remote control with two AA batteries
  • Control pad with connecting cable
  • Pen holder
  • Two (2) interactive pens
  • Finger Touch Unit with bracket and cable
  • Two (2) AA batteries (for interactive pens)
