Epson LightScene EV115

Accent Lighting LCD Laser Projector, WXGA, 2200 Lumens, Black
Item #0600-4294 Model #V11HA22120

Overview

Epson LightScene EV-115

Accent Lighting 3LCD Laser Projector

The dynamic laser projector for digital art and signage

Create stunning visual displays and immersive environments with the LightScene EV-115, the cutting-edge digital signage solution from Epson. A convergence of lighting and display technology, LightScene laser projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications.

Designed to blend in discreetly with any setting — from retail, hospitality and event spaces to showrooms and museums the LightScene EV-115 offers a sleek spotlight design, with an array of configuration, mounting and programming options.

The EV-115 is a black projector. This model is also available in white as EV-110.

Features

  • Integrated lighting and digital projection: projects dynamic, experiential content without being bound by a frame to engage audiences in retail, hospitality and event spaces, showrooms and museums.
  • Breakthrough laser technology: features a laser light source of up to 20,000 hours of virtually maintenance-free operation1, plus a sealed optical engine, for amazing image quality matched by outstanding performance

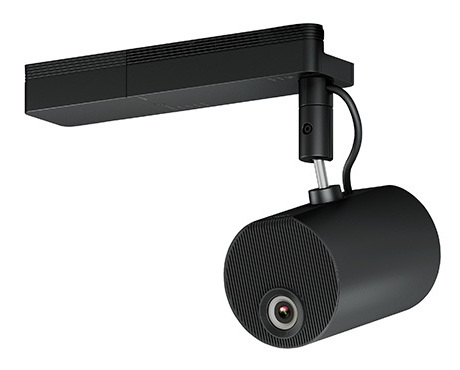

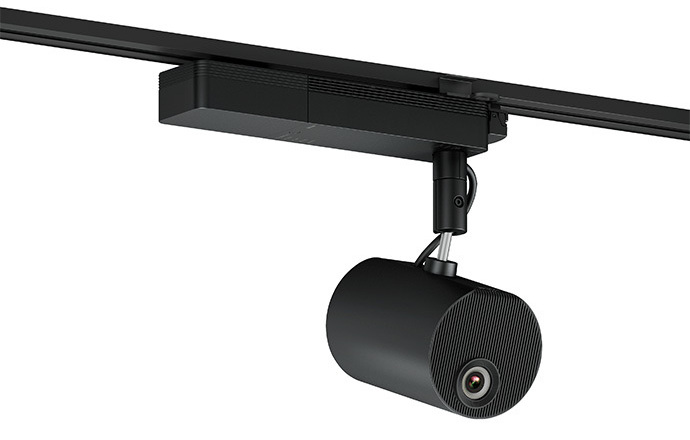

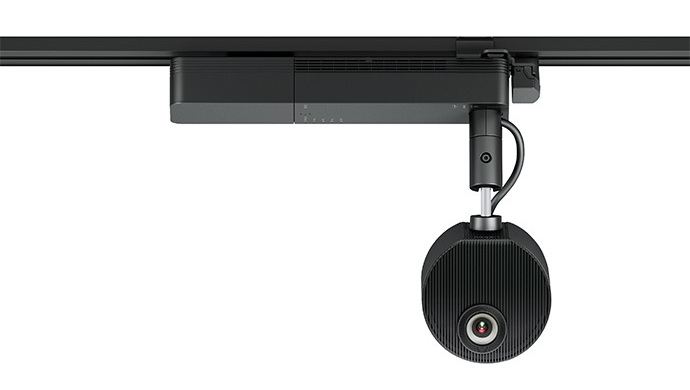

  • Blends in discreetly: sleek black spotlight design easily blends into the surroundings, offering vertical and horizontal rotation, with flexible mounting on tracks, floors, walls or ceilings
  • Easily programmable with the built-in media-player: includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management for single or multiple LightScene projectors
  • Creative Content Projection app2: pre-loaded with video content and customizable features, including a touch-enabled, 4-point correction to easily upload customized content and messaging to LightScene and easily adjust to the desirable size
  • 3-chip 3LCD image quality: up to 2,200 lumens of equal color and white brightness3 for vibrant, rich color
  • Expansive connectivity: GPI motion sensing, HDMI®, RJ-45, wired and wireless LAN and Bluetooth-enabled for direct content storage and playback when needed
  • Remote management and control tools: via web-based application or over the network with Crestron®, Art-Net and more
  • Flexible positioning: 1.58x powered optical zoom, plus powered focus, allow the projector to be installed in both large and small spaces
  • Scalable, for an array of applications: install multiple LightScene projectors and utilize edge blending technology for versatile, breathtaking displays



Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay® Transport Partner5




Notes:

1 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
2 Requires App download. Internet connection required for download. Data usage fee may apply.
3 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: RGB liquid crystal shutter projection system
Projection Method: Direct Mounting, Lighting Track (requires Lighting Track option), Floor Standing (requires Floor Stand option)
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Native Resolution: WXGA (1280 x 800)
Aspect Ratio: 16:10 widescreen
Color Brightness1 - Color Light Output: 2,200 lumens
White Brightness1 - White Light Output: 2,200 lumens
Dynamic Contrast Ratio: Up to 2,500,000:1
Color Reproduction: Up to 16.7 million colors
Size (Projected Distance): 30" – 150" (0.88 – 4.51 m) at Zoom: Wide
Keystone Correction (Manual): Vertical: ± 45 degrees; Horizontal: ± 40 degrees
Light Source: Laser Diode
Laser Life2: Normal Mode: Up to 20,000 hours
Extended Mode: Up to 30,000 hours
Project from Nearly Any Angle: Left/Right: 180 degrees
Up/Down: 180 degrees
Ball-joint Axis Rotation: 360 degrees
Track Compatibility: Halo: TEK441, 442, 443
Juno: TEK44FT(Black/White)
Global Trac: TEK44-1, 44-2, 44-3

Projection Lens:

Type: Optical zoom (Powered)/Focus (Powered)
F-number: 1.51 – 1.92
Focal Length: 18.2 – 28.4 mm
Zoom Ratio: 1 – 2.21 (Total), (Optical zoom: 1 – 1.58, Digital zoom: 1 – 1.4)
Throw Ratio Range: 1.38 (Zoom: Wide), 2.19 (Zoom: Tele)

Other Features

Input Signal: HDMI
Operating Temperature: 41° to 104°F (5° to 40°C) (20 – 80% humidity, no condensation)
Fan Noise: Normal Mode: 34 dB
Quiet Mode: 22 dB
Security: Enterprise Level Security Encryption
Country of Origin: China

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption: Normal, Custom Mode: 150 W
Quiet, Extended Mode: 111 W
Standby Mode: 2.0 W
Energy-saving Mode: 0.40 W

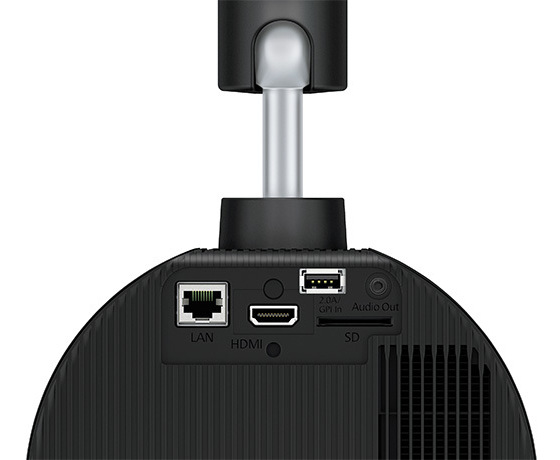

Interfaces:

  • 1x HDMI Type A
  • 1x SD Card
  • 1x Stereo Mini Out
  • 1x USB Connector Type-A: For 2000 mA power supply and GPI In only. (This port cannot be used to transfer data)
  • 1x USB Connector Mini Type B: For Firmware update
  • 1x Wired LAN RJ-45

IEEE 802.11b (2.4GHz): 11 Mbps*
IEEE 802.11g (2.4GHz): 54 Mbps*
IEEE 802.11n (2.4GHz): 72.2 Mbps*
IEEE 802.11a (5GHz): 54 Mbps*
IEEE 802.11n (5GHz): 150.0 Mbps*
*Maximum speed and range is achievable when used with same enhanced mode technology. Actual features and performance may vary depending on your computer system, the environment and other factors.

Dimensions:

Projection Unit: 6.9"Φ x 10.24" D
Power Supply Unit: 18" x 4.3" x 2.5" (W x D x H)
Weight: 15.2 lb (Main unit 11.0 lb, Direct mount unit 4.2 lb)

Remote Control:

Features: A/V Mute, Focus, Zoom, Volume, Spotlight, HDMI, LAN, SD Card, Keystone, Pattern, Effect
Operating Distance: 23 ft (7 m)
Operating Angle: Front to Rear: 15 – 60 degrees
Right to Left: 60 – 60 degrees

What's In The Box:

  • LightScene EV-115 Laser Projector
  • Remote Control
  • 2x AA Batteries
  • Direct Mount Unit
  • Power Cable
  • Power Cable Cover
  • 2x HDMI Cable Clamp
  • Quick Setup Guide
  • Direct Mount Installation Guide

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
