Epson Pro EX9270
Overview

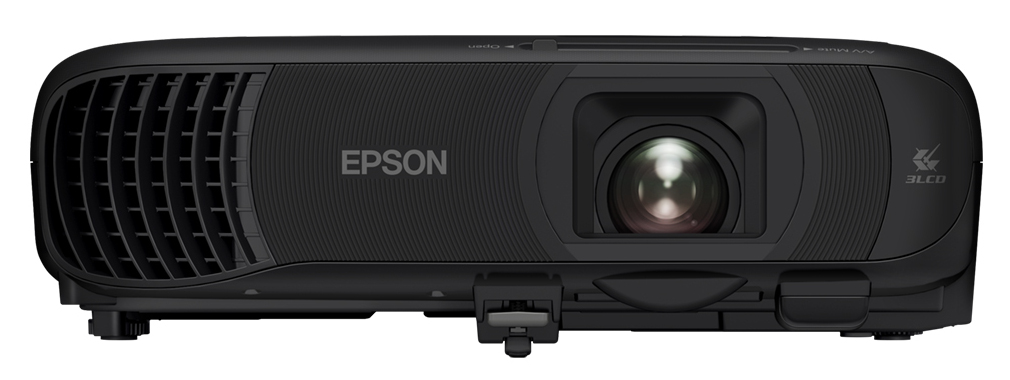

Epson Pro EX9270
Wireless Full HD 3LCD Projector
Designed for modern hybrid workspaces, the Epson Pro EX9270 offers a bright, dynamic display that elevates visibility and cultivates collaboration. See and be seen with images up to 300" — four times the size of a 75" flat panel — perfect for maximizing productivity.
The Pro EX9270 offers 4,100 Lumens of Color Brightness (IDMS Rated) and 4,100 Lumens of White Brightness (ISO Rated) for bright images, even in well-lit spaces. Stunning Full HD 1080p resolution, combined with real-time adaptive scene-by-scene color processing, helps ensure vibrant colors and sharp contrast, every time you display.
With Apple® AirPlay®, wirelessly share videos, music, photos and presentations to your projector right from your iPhone®, iPad®, or Mac®. Plus, easily mirror your screen directly from your Windows® PC using Miracast®. With a wide range of connectivity options and a built-in speaker, you can connect devices such as Amazon Fire™, Apple TV®, Roku® and Chromecast™ for streaming, right out of the box.
In addition, you can connect laptops for seamless video conferencing, Zoom® meetings and more. Enjoy easy installation in nearly any space with 1.6x optical zoom, keystone correction and four-corner adjustment for accurate alignment.
Key Features:
- Up to 300'' Image Size; Full HD 1080p resolution
- 4,100 Lumens of Equal Color and White Brightness
- True 3-Chip 3LCD Technology
- Works with Apple® AirPlay® for Screen Mirroring
- HDMI and USB ports to Connect to Streaming Devices
(Model: V11HB59120)
Features
- Outstanding Image Size, Up to 300": Four times the size of a 75'' flat panel; elevate your Zoom® video conferencing experience with stunning Full HD 1080p resolution.
- Amazing Brightness: 4,100 Lumens of Color Brightness (IDMS Rated) and 4,100 Lumens of White Brightness (ISO Rated)1, ideal for displaying group presentations, spreadsheets and videos, even in well-lit rooms.
- Exceptional Image Quality: Advanced 3-chip 3LCD technology displays 100% of the RGB color signal for every frame. This allows for outstanding color accuracy while maintaining excellent color brightness, without any distracting "rainbowing" or "color brightness" issues seen with other projection technologies.
- Works with Apple AirPlay: Wirelessly mirror your iPhone, iPad, or Mac screen to share videos, music, photos and more to your projector2; includes Miracast® compatibility for Windows® PC screen sharing3

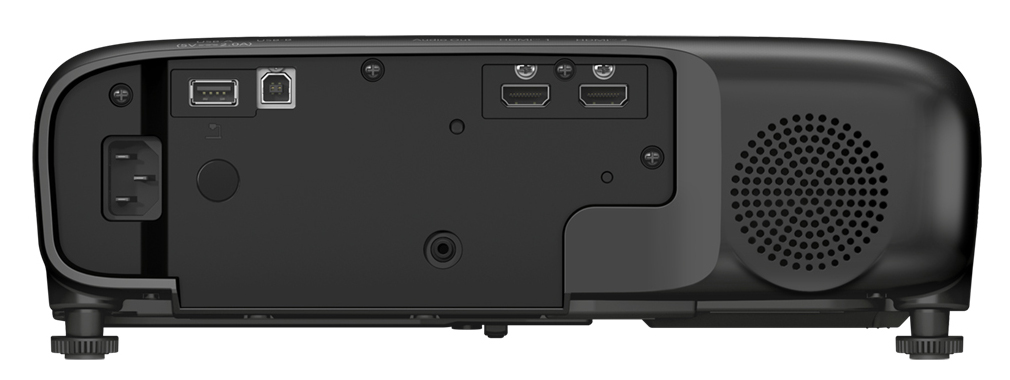

- Versatile Connectivity: Features two HDMI® ports and a USB port that functions as a power source for streaming devices4. Easily connect laptops and devices including Fire TV, Apple TV®, Roku® and Chromecast. Also connect laptops for seamless video conferencing and more.
- Hassle-Free Setup: Built-in speaker and easy setup for HD entertainment right out of the box
- Immersive Sound: Built-in 16 W speaker for astounding audiovisual experience and exceptional sound quality right out of the box
- Built-In Picture Skew Sensor: Automatically analyzes the picture and corrects the vertical keystone to help square the image.
- Dynamic Contrast Ratio Up to 16,000:1: Provides crisp, rich detail for graphs, images and videos.
- Award-Winning Service and Support: Standard 1-year limited projector warranty5, full-unit replacement along with free technical phone support for the life of the product
- Eco Features:
- RoHS compliant
- End-of-life options available6
- Epson America, Inc. is a SmartWay® Transport Partner7
Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Recommended wireless network connection of 25 Mbps or faster. Some apps require paid subscriptions.
3 The projector supports direct peer-to-peer wireless casting of local content from Miracast-enabled devices. See manufacturer’s specifications for details.
4 USB power 5 V/2 A.
5 90-day limited lamp warranty.
6 For convenient and reasonable recycling options, visit epson.com/recycle
7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications Projector:
| Projection System: | 3LCD, 3-chip technology |
| Projection Method: | Front/rear/ceiling mount |
| Driving Method: | Epson Poly-silicon TFT Active Matrix |
| Pixel Number: | 2,073,600 dots (1920 x 1080) x 3 |
| Native Resolution: | 1080p (1920 x 1080) |
| Aspect Ratio: | 16:9 |
| Supports: | 16:10, 4:3 |
| Color Brightness1 - Color Light Output: | 4,100 lumens (IDMS Rated) |
| White Brightness1 - White Light Output: | 4,100 lumens (ISO Rated) |
| Contrast Ratio: | Up to 16,000:1 |
| Color Reproduction: | Up to 1.07 billion colors |
| Size (Projected): | 31" – 304" |
| Keystone Correction (Auto): | Vertical: ± 30 degrees |
| Keystone Correction (Manual): | Horizontal: ± 30 degrees |
| Lamp Type: | 230 W UHE |
| Lamp Life: | Normal Mode: Up to 5,500 hours ECO Mode: Up to 12,000 hours |
Projection Lens:
| Type: | Optical zoom/Manual focus |
| F-number: | 1.51–1.77 |
| Focal Length: | 18.2–29.2 mm |
| Zoom Ratio: | Manual zoom 1–1.62 |
| Throw Ratio Range: | 1.30–2.09:1 |
Other Features
| Supported Input Resolutions | |
| PC Compatibility | Computer & HDMI signal inputs: WUXGA Reduced Blanking (HDMI input only), 1920x1080, UXGA, WSXGA+ (wide resolution setting only), SXGA+, SXGA, WXGA++, WXGA+, WXGA, XGA, SGVA, VGA |
| Digital Video Compatibility | HDMI digital signal inputs: 1080p (at 24/30/50/60 Hz), 1080i (at 50/60 Hz), 720p (at 50/60 Hz), 576p/i (at 50Hz), 480p/i (at 60 Hz) Computer digital signal inputs: 720p, 576p (at 50 Hz), 480p (at 60 Hz) |
| Speaker | 16 W mono |
| Media Format | 16:9 |
| Operating Temperature: | 41° to 95°F (5° to 35°C) |
| Fan Noise: | 37 dB (Normal Mode); 28 dB (Quiet Mode) |
Power:
| Power Supply Voltage: | 100–240 V AC ±10%, 50/60 Hz |
| Power Consumption: | Normal Mode: 349 W ECO Mode: 187 W (lamp on) Energy Saving 0.3 W |
Interfaces:
|
Dimensions (W x D x H):
| Including feet: | 12.2" x 11.5" x 4.1" (310 x 292 x 104 mm) |
| Excluding feet: | 12.2" x 11.1" x 3.5" (310 x 282 x 89 mm) |
| Weight: | 6.8 lb (3.1 kg) |
Remote Control:
| Features: | Front and rear directional |
| Operating Distance: | 19.7 ft (6 m) |
| Operating Angle: | Right/left: ± 30 degrees Upper/lower: +15 degrees |
What's in the Box:
- Pro EX9270 projector
- Power cable
- Projector remote control
- Batteries
- Quick Start Guide
Warranty
- 1-year projector limited warranty
- 90-day limited lamp warranty
Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
