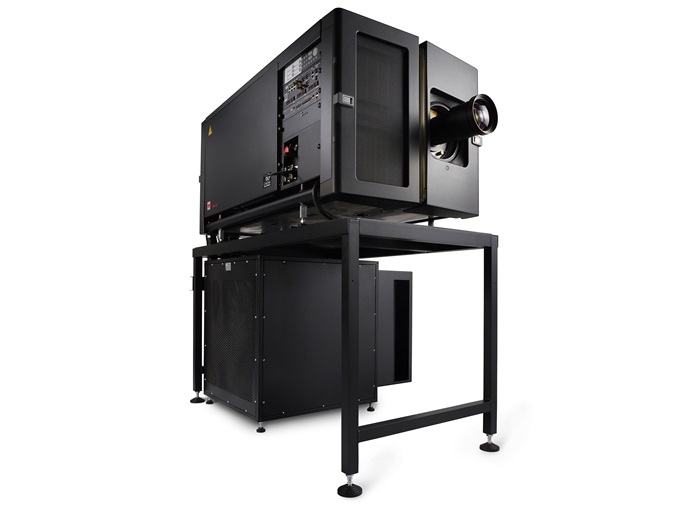

Barco DP4K-22L
3-DLP RGB Laser DCI Projector, 4098x2160 4K, 22,000 Lumens
Item #0600-4841
Model #R9406560
Overview
Barco's DP4K-22L laser cinema projector brings cutting-edge image quality to your medium-sized screens, enabling you to provide audiences with a stunning experience that's only available in theaters. The projector combines its exceptional image quality with simplified operations and reduced operating expenses.
Unprecedented image quality
The Barco DP4K-22L offers superior image quality with a high brightness level, increased contrast ratio and vivid colors for a radically improved (3D) movie experience. The 2D and 3D images it displays are laser-sharp with superbly saturated and uniform colors. Geared with the unique Barco Alchemy Integrated Cinema Media Processor (ICMP), it's capable of showing 4K content at 60 frames per second and 3D movies in 4K.
Specifications
| Resolution | 4,096 x 2,160 |
|---|---|
| Brightness | Up to 22,000 lumens |
| Native contrast ratio | 2,800:1 (typical) / 500:1 ANSI contrast (typical) |
| Prime lenses | 1.13-1.65; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35 |
| Long-term brightness stability | Less than 20% decrease during a runtime of 30,000 hrs |
| Dimensions (WxLxH) | Projector: 744 x 1,445 x 706 mm / 29.3 x 56.9 x 27.8 inches (with feet, no lens) One chiller with the following dimensions: 701 x 701 x 800 mm / 27.6 x 27.6 x 31.5 inches |
| Weight | Projector: 200kg (~440lb) Chiller: ~115kg (~250lb) |
| Cooling liquid hose length | 2.5-5-10m (8.2-16.4-32.8ft) |
| Power requirements | Projector: 200-240/346-415V 50-60Hz 16A 3W+N+PE (Y connection) / Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG /Circuit breaker range: 25A to 40A 200-240V 3W+PE 28A 50-60Hz (/\- connection) / Power cord size: 6 sq mm, 8AWG / Circuit breaker: 40A Chiller: 230/400V 3W+N+PE 16A, 2.5 sq mm (Y connection) or 208V / 3W+PE (/\- connection) / Max. 16A per phase |
| Ambient temperature | 30°C (86°F) Max. (projector and chillers) |
| Ambient humidity | 75% Max. (projector and chillers) |
| Power consumption | Projector @ full laser power: 2.8 kW (2D or Polarization 3D) / 1.6 kW (Barco Laser3D - 6P) Chiller @ full laser power: 1.6 kW (2D or Polarization 3D) / 1.3 kW (Barco Laser3D - 6P) Projector @ half laser power: 1.6 kW (2D or Polarization 3D) / 1.0 kW (Barco Laser3D - 6P) Chiller @ half laser power: 1.3 kW (2D or Polarization 3D) / 1.0 kW (Barco Laser3D - 6P) |
| Media server | Barco Alchemy ICMP included in the projector:
|
| 3D systems | Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses (Dolby3D glasses cannot be reused) Active glasses systems Polarization recuperation systems |
| DCI | Projector + Barco Alchemy ICMP DCI CTP 1.2 certified |
| Safety class | Class 1, RG3 |
| Certifications | CE; ETL/UL/FCC |
