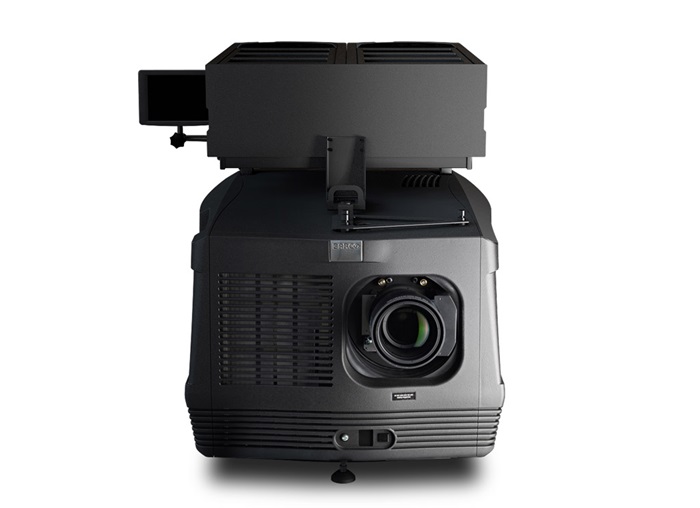

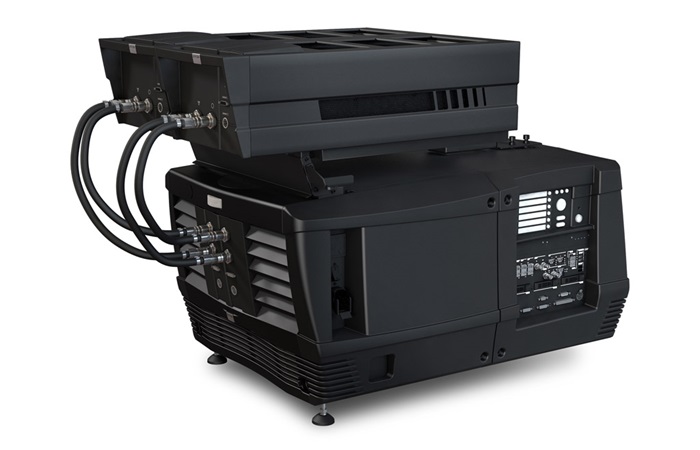

Barco DP2K-15CLP

3-DLP Laser/Phosphor DCI Projector 15,000 Lumens, 1TB Alchemy, w/Lens & Cooler
Item #0600-4855 Model #R9006806


The DP2K-15CLP offers a future-proof and cost-effective way to upgrade your technology while providing superior image quality. Freeing you from all lamp-related hassles and costs, the projectors allow for considerable cost-savings and greater ease of mind through simplified operations.

Considerable cost-savings

Eliminating all lamp-related costs over your projector's lifetime, the DP2K-15CLP provides a very attractive TCO. Thanks to its unique cooling system, the projector boasts a 30,000-hour constant brightness at typical usage conditions. And its optical efficiency is also significantly higher − resulting in savings of up to 50% on your electricity bill.

Superior image quality

The DP2K-15CLP offers consistent DCI-compliant image quality with outstanding uniformity and higher contrast. Compatible with most 3D systems, it improves image quality on white and silver screens.


Resolution 2,048 x 1,080
Brightness 15,000 lumens (typical)
Native contrast ratio Up to 2,400:1
Prime lenses 1.2-1.8; 1.4-2.05; 1.6-2.5; 1.95-3.2; 2.4-3.9
Long-term brightness stability 30,000 hrs @ average usage conditions
Dimensions (WxLxH) Projector: 694 x 1,034 x 558 mm / 27.3 x 40.7 x 22 inches
Cooler: 561.5 x 738.5 x 348 mm / 22.11 x 29.07 x 13.7 inches
Weight Projector: 110kg (243 lb)
Cooler: 32kg (70.6 lb)
Cooling liquid hose length 0.5m (1.6ft) and 5m (16.4ft)
Vertical separation between cooler and projector Maximum 3m (10ft) (higher or lower)
Power requirements Projector: single phase 200-240V 14A
Cooler: obtains power from the projector
Ambient temperature 35°C (95°F) Max. (projector and cooler)
Ambient humidity 85% Max. (projector and cooler)
Power consumption Projector (incl. cooler) @ full laser power: 2.3 kW
Projector (incl. cooler) @ half laser power: 1.35 kW
Media server Barco Alchemy ICMP and other IMB brands supported.
Noise Level dB(A) @ 1 m:
67.6 dB(A)
62 dB(A) (half fan speed)
3D systems Active glasses systems and polarization systems on silver sceens are supported. Color separation systems (Dolby3D and 6P) are not supported.
Safety requirements Show safety: the customer shall take precaution for the laser safety (respect the hazard distance and separation height) according to local laser show safety regulations.
Workplace safety: the customer shall take precaution for:
  • workplace safety as prescribed by the local authorities
  • basic laser safety training for operators
  • laser safety program implementation in the company;
  • access limitation only to trained personnel: area labelling, etc.
Exhaust airflow 450 CFM


Model R98559572
R9855931 R9855932
R9855934 R9855936
D:W 1.2-1.8 1.4-2.05 1.6-2.5 1.9-3.2 2.4-3.9
f/stop 2.5  2.5   2.5  2.5  2.5

Barco Communicator software

Service and install tool for Barco’s digital cinema projectors

Article number: R9806072

Barco Commander

Control software for Barco Alchemy digital cinema projectors using a touch panel controller

Barco Web Commander

Projector and screen management system for Barco Alchemy digital cinema projectors


Barco SmartCare

10-year light output guarantee for Smart Laser cinema projectors

Barco Alchemy ICMP

Integrated Cinema Media Processor (ICMP) - Option for Series 2 projectors

Article number: R9801134 ,R9801135
