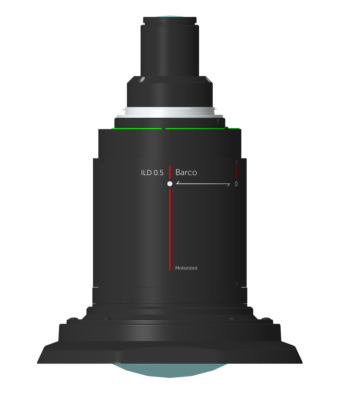

Barco R9803076

ILD 0.5:1 Fixed Lens
Item #0600-4930 Model #R9803076

Specifications

Barco R9803076

ILD 0.5:1 Fixed Lens

The Barco R9803076 is an ultra-short throw lens for use with the I600-4K series of projectors.

In case of vibrations, Barco suggests making use of the optional lens support R9803342 or R9803340 (MKII) to bolt it to the projector body for stability.

This UST lens is supported from Pulse software package version 2.5.10 or higher.



SPECIFICATIONS

Throw ratio 0.5:1 (4K UHD)
Working F/# 2.0
Focal length 9.19
Focus range 50"~400" (1.27~10.2 m)
Throw distance 1.64~14.9 ft (0.5~4.55 m)
Motorized zoom No
Motorized focus Yes
Dimensions (WxHxD) 12.6" x 12.2" x 15.4" (320 x 310 x 390 mm)
Weight 11.2 lb (5.1 kg)

Same Series Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
D:W
4K UHD
0.37:1 0.5:1 0.650.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1
f/stop 2.0 2.0 2.0–2.16 2.0–2.2 2.0–2.15 2.0–2.25 2.0–2.25 2.0
