Barco R9803072

ILD 0.65-0.8:1 Zoom Lens
Item #0600-4931 Model #R9803072

Specifications

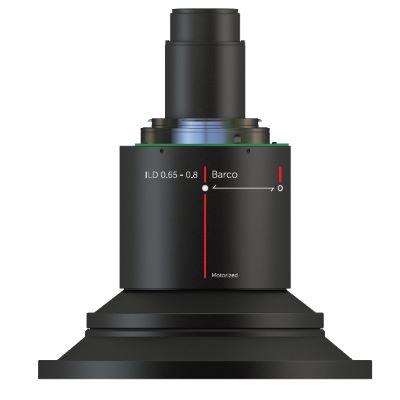

Barco R9803072

ILD Zoom Lens 0.65–0.8:1

The Barco R9803072 is a short throw zoom lens for use with the I600-4K series of projectors. This 1.23x zoom lens has power zoom and power focus capabilities for remote adjustment.



SPECIFICATIONS

Throw ratio 0.65–0.8:1 (4K UHD)
Working F/# 2.0–2.16
Zoom ratio 1.23
Focal length 11.40–14.03 mm
Focus range 50"–500" (1.27–12.7 m)
Throw distance 2.12–22.83 ft (0.645–6.960 m)
Motorized zoom Yes
Motorized focus Yes
Dimensions (WxHxD) 11.8" x  12.2" x 15.4" (300 x 310 x 390 mm)
Weight ~ 8.27 ± 0.11 lb (~ 3.75 ± 0.05 kg)

Same Series Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
D:W
4K UHD		 0.37:1 0.5:1 0.65–0.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1
f/stop 2.0 2.0 2.0–2.16 2.0–2.2 2.0–2.15 2.0–2.25 2.0–2.25 2.0
