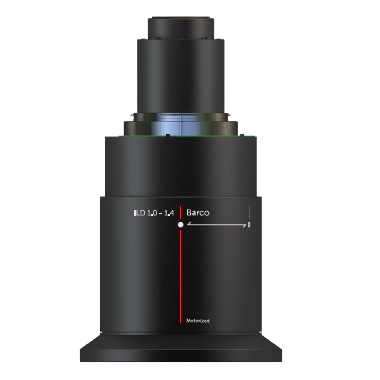

Barco R9803070

ILD 1.0-1.4:1 Zoom Lens
Item #0600-4933 Model #R9803070

Specifications

Barco R9803070

ILD Zoom Lens 1.0–1.4:1

The Barco R9803070 is a medium-throw zoom lens for use with the I600-4K series of projectors. This 1.41x zoom lens has power zoom and power focus capabilities for remote adjustment.



SPECIFICATIONS

Throw ratio 1.0–1.4:1 (4K UHD)
Working F/# 2.0–2.15
Zoom ratio 1.41
Focal length 17.28–24.17 mm
Focus range 50"~500" (1.27~12.7 m)
Throw distance 3.53–39.57 ft (1.077–12.062 m)
Motorized zoom Yes
Motorized focus Yes
Dimensions (WxHxD) 10.2" x 9.1" x 14.2" (260 x 230 x 360 mm)
Weight 5.58 ± 0.11 lb (2.53 ± 0.05 kg)

Same Series Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
D:W
4K UHD		 0.37:1 0.5:1 0.65–0.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1
f/stop 2.0 2.0 2.0–2.16 2.0–2.2 2.0–2.15 2.0–2.25 2.0–2.25 2.0
