Barco R9803061

ILD 1.4-2.1:1 Zoom Lens
Item #0600-4934 Model #R9803061

Specifications

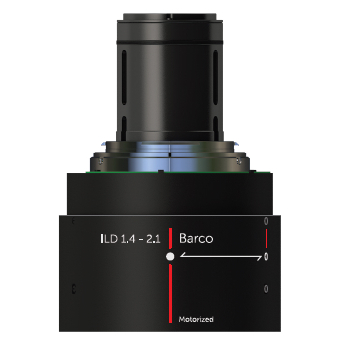

Barco R9803061

ILD Zoom Lens 1.4–2.1:1

The Barco R9803061 is a middle-throw zoom lens for use with the I600-4K series of projectors. This 1.5x zoom lens has power zoom and power focus capabilities for remote adjustment.



SPECIFICATIONS

Throw ratio 1.4–2.1:1 (4K UHD)
Working F/# 2.0–2.25
Zoom ratio 1.5
Focal length 24.95~37.43 mm
Focus range 50"~400" (1.27~10.16 m)
Throw distance 7.25~40.03 ft (2.21~12.20 m)
Motorized zoom Yes
Motorized focus Yes
Dimensions (WxHxD) 5.6" x 5.3" x 8.5" (142.0 x 134.0 x 215.0 mm)
Weight 4.4 lb (2.0 kg)

Same Series Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
D:W
4K UHD		 0.37:1 0.5:1 0.65–0.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1
f/stop 2.0 2.0 2.0–2.16 2.0–2.2 2.0–2.15 2.0–2.25 2.0–2.25 2.0
