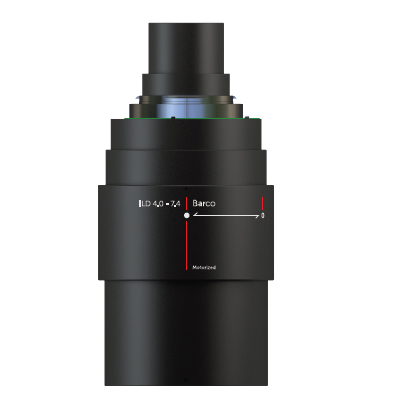

Barco R9803073

ILD 4.0-7.4:1 Zoom Lens
Item #0600-4936 Model #R9803073

Specifications

Barco R9803073

ILD Zoom Lens 4.0–7.4:1

The Barco R9803073 is an ultra-long throw zoom lens for use with the I600-4K series of projectors. This 1.86x zoom lens has power zoom and power focus capabilities for remote adjustment.



SPECIFICATIONS

Throw ratio 4.0–7.4:1 (4K UHD)
Working F/# 2.0
Zoom ratio 1.86
Focal length 70.03–131.09 mm
Focus range 45"–500" (1.14–12.7 m)
Throw distance 13.5–141.8 ft (4.104–43.223 m)
Motorized zoom Yes
Motorized focus Yes
Dimensions (WxHxD) 9.1" x 8.7" x 16.1" (230 x 220 x 410 mm)
Weight 7.7 lb ± 0.11 lb (3.47 kg ± 0.05 kg)

Same Series Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
D:W
4K UHD		 0.37:1 0.5:1 0.65–0.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1
f/stop 2.0 2.0 2.0–2.16 2.0–2.2 2.0–2.15 2.0–2.25 2.0–2.25 2.0
