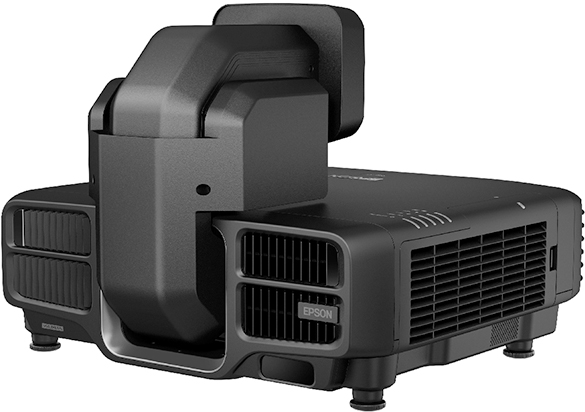

Epson ELPLX02

(V12H004X02) Ultra Short Throw Lens for L1500 Series
Part #: 0600-6106    Mfr #: V12H004X02

Epson ELPLX02

$15,399.00
List price

Overview

Epson ELPLX02

Ultra short-throw lens designed for select Epson projectors

Project supersized images using the ELPLX02 ultra short-throw lens with select Epson Pro L projectors, 9,000 lumens or higher. Featuring a 0.35 throw ratio and zero offset, this versatile lens is the ideal solution for installation in narrow spaces and rear-projection applications. Plus, its wide lens shift range offers even more flexibility when needed.

Key Features:

  • Ideal in space-constrained applications — ultra short-throw lens delivers large-size images from a short distance
  • Installation flexibility — 0.35 throw ratio, plus zero offset (negative offset with Pro L1000 Series projectors)
  • Versatile — ideal solution for installation in narrow spaces, on low ceilings and in rear-projection applications
  • Positioning flexibility — wide lens shift range
  • Bright, larger-than-life images virtually anywhere — project in tight locations that were previously not an option for projection applications
  • Compatible  — supports select Epson interchangeable lens projectors, 9,000 to 20,000 lumens
  • Supported screen size  — 100" to 1,000"
  • F-number  — 1.9
  • Focal length  — 8 mm
  • Ideal for dynamic displays  — facilitates front projection from above and rear projection from below the floor surface for dynamic window displays and other immersive experiences



Notes:

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Specifications

Throw ratio
WUXGA: D:W = 0.35:1 (1.03" LCD)¹
                        0.47:1 (0.76" LCD)²
SXGA+:  D:W = 0.36:1
XGA:      D:W = 0.48:1
WXGA:   D:W = 0.47:1
Zoom N/A
Focus Powered
Lens shift 1.03" LCD¹ vertical: +45% to +70%, horizontal: ±15% Powered
Aperture (f/stop) 1.9
Focal length 8.0 mm
Weight 11.0 lbs (5.0 kg)
Dimensions (WxHxD)   8.0" x 14.8" x 14.4" (20.39 x 37.57 x 36.49 cm)
       ¹Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL
       ²Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Same Series Lenses

Model: ELPLX01 ELPLX02 ELPLU03
ELPLU03S
ELPLU04 ELPLW05 ELPLW08 ELPLM08
Std Lens2,4,5
ELPLW06

ELPLM09
ELPLM15

Std Lens1

ELPLM10 ELPLM11 ELPLL08
Price: $8,249.00
Add to Cart
$15,399.00
Add to Cart
$3,299.00
Add to Cart
$3,299.00
Add to Cart
$2,089.00
Add to Cart
$11,219.00
Add to Cart
$1,399.00
Add to Cart
$3,189.00
Add to Cart
$1,539.00
Add to Cart
$2,089.00
Add to Cart
$2,089.00
Add to Cart
$3,189.00
Add to Cart
  ELPLX01 lens ELPLX02 lens ELPLU03 lens ELPLU04 lens ELPLW05 lens  ELPLW08 lens ELPLW08 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
D:W WUXGA1
1.03" chip
0.35:1 0.48 – 0.57:1 0.64 – 0.77:1 0.77 – 1.07:1 0.86 – 1.21:1 1.19 – 1.62:1 1.57 – 2.56:1 2.42 – 3.71:1 3.54 – 5.41:1 5.27 – 7.41:1
D:W WUXGA2
0.76" chip
0.35:1 0.47:1 0.65 – 0.78:1 0.87 – 1.05:1 1.04 – 1.46:1 1.18 – 1.66:1 1.44 – 2.32:1 1.62 – 2.22:1 2.16 – 3.48:1 3.32 – 5.06:1 4.85 – 7.38:1 7.21 – 10.11:1
D:W SXGA+3 0.36:1 0.49 – 0.59:1 0.66 – 0.79:1 0.79 – 1.10:1 0.89 – 1.25:1 1.23 – 1.67:1 1.62 – 2.64:1 2.49 – 3.82:1 3.65 – 5.57:1 5.43 – 7.63:1
D:W WXGA4 0.35:1 0.47:1 0.65 – 0.78:1 0.87 – 1.05:1 1.04 – 1.46:1 1.18 – 1.66:1 1.44 – 2.32:1 1.62 – 2.22:1 2.16 – 3.48:1 3.32 – 5.06:1 4.85 – 7.38:1 7.21 – 10.11:1
D:W XGA5 0.36:1 0.48:1 0.66 – 0.80:1 0.89 – 1.08:1 1.07 – 1.49:1 1.15 – 1.70:1 1.47 – 2.38:1 1.66 – 2.27:1 2.20 – 3.55:1 3.39 – 5.17:1 4.95 – 7.54:1 7.36 – 10.33:1
f/stop 1.9 1.9 2.0 – 2.26 2.0 – 2.1 2.0 – 2.2 2.0 – 2.2 1.7 – 2.3 1.8 – 2.3 1.8 – 2.35 1.8 – 2.4 1.8 – 2.4 1.8 – 2.5
Max Lumens 8,000 20,000 U03 15,000
U03S 20,000
20,000 15,000 20,000 8,000 20,000 M09 8,000
M15 20,000
20,000 20,000 20,000
Notes

ELPLX01 is more cost effective if within light output limits.

The ELPLU03 is discontinued.

ELPLW05 & ELPLM08 are more cost effective if within light output limits.

The ELPLM09 is discontinued.



1For Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL (Standard Lens is ELPLM15)

2For Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U (Standard Lens is ELPLM08)

3For Pro L1715SNL

4For Pro G7000W, G7200W (Standard Lens is ELPLM08)

5For Pro G7100, G7805 (Standard Lens is ELPLM08)
