Epson ELPLW08
Specifications

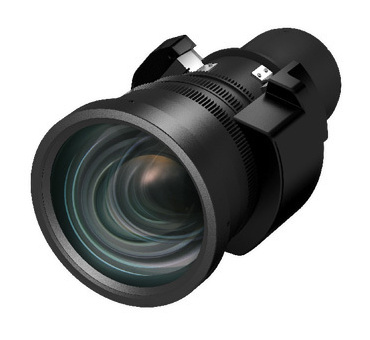

Epson ELPLW08
Wide-throw zoom lens designed for high-lumen projectors
Designed specifically for 12,000 lumen and higher Epson® Pro L projectors, the ELPLW08 offers wide lens shift and powered zoom for remarkable positioning flexibility.
- Wide lens shift: vertical lens shift of up to ± 60%, horizontal lens shift of up to ± 18% for Pro L1500 and 1700 Series projectors and the Pro L20000U; vertical lens shift of up to ± 58%, horizontal lens shift of up to ± 16% for the Pro L12000Q
| Throw ratio |
WUXGA: D:W = 0.86 – 1.21:1 (1.03" LCD)¹
1.18 – 1.66:1 (0.76" LCD)²
1080p/4K UHD: D:W = 0.83 – 1.17:1 (1.04" LCD)3
SXGA+: D:W = 0.89 – 1.25:1
XGA: D:W = 1.15 – 1.70:1
WXGA: D:W = 1.18 – 1.66:1 |
| Zoom ratio | 1.0 – 1.4x |
| Zoom | Powered |
| Focus | Powered |
| Lens shift |
1.03" LCD¹ vertical: ±60%, horizontal: ±18%, Powered |
| Aperture (f/stop) | 2.0 – 2.2 |
| Focal length | 19.7 – 27.5 mm |
| Weight | TBD |
| Dimensions (WxHxD) | TBD |
¹ Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL, EB-PU2010, EB-PU2113, EB-PU2116, EB-PU2120, EB-PU2213, EB-PU2216, EB-PU2220
² Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U, EB-PU1006, EB-PU1007, EB-PU1008
3 EB-PQ2008, EB-PQ2010, EB-PQ2213, EB-PQ2216, EB-PQ2220
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Same Series Lenses
| Model: | ELPLX01 ELPLX01S7 |
ELPLX02 ELPLX02S7 |
ELPLU03 ELPLU03S |
ELPLU04 | Z-ELPLW04.8 | ELPLW05 | ELPLW08 | ELPLM08 Std Lens2,4,5 |
ELPLW06 |
ELPLM09 |
ELPLM10 | ELPLM11 | ELPLL08 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA1 1.03" chip |
— | 0.35:1 | 0.48–0.57:1 | 0.64–0.77:1 | 0.73–1.19:1 | 0.77–1.07:1 | 0.86–1.21:1 | — | 1.19–1.62:1 | 1.57–2.56:1 | 2.42–3.71:1 | 3.54–5.41:1 | 5.27–7.41:1 |
| D:W WUXGA2 0.76" chip |
0.35:1 | — | 0.65–0.78:1 | 0.87–1.05:1 | 0.99–1.61:1 | 1.04–1.46:1 | 1.18–1.66:1 | 1.44–2.32:1 | 1.62–2.22:1 | 2.16–3.48:1 | 3.32–5.06:1 | 4.85–7.38:1 | 7.21–10.11:1 |
| D:W SXGA+3 | — | 0.36:1 | 0.49–0.59:1 | 0.66–0.79:1 | 0.75–1.22:1 | 0.79–1.10:1 | 0.89–1.25:1 | — | 1.23–1.67:1 | 1.62–2.64:1 | 2.49–3.82:1 | 3.65–5.57:1 | 5.43–7.63:1 |
| D:W WXGA4 | 0.35:1 | — | 0.65–0.78:1 | 0.87–1.05:1 | 0.99–1.61:1 | 1.04–1.46:1 | 1.18–1.66:1 | 1.44–2.32:1 | 1.62–2.22:1 | 2.16–3.48:1 | 3.32–5.06:1 | 4.85–7.38:1 | 7.21–10.11:1 |
| D:W XGA5 | 0.36:1 | — | 0.66–0.80:1 | 0.89–1.08:1 | 1.01–1.65:1 | 1.07–1.49:1 | 1.15–1.70:1 | 1.47–2.38:1 | 1.66–2.27:1 | 2.20–3.55:1 | 3.39–5.17:1 | 4.95–7.54:1 | 7.36–10.33:1 |
| D:W 1080p/4K UHD6 1.04" chip |
— | 0.34:1 |
0.46–0.55:1 | 0.62–0.74:1 | 0.72–1.18:1 | 0.74–1.03:1 | 0.83–1.17:1 | — | 1.15–1.56:1 | 1.52–2.47:1 | 2.33–3.57:1 | 3.41–5.21 | 5.08–7.14:1 |
| F/stop | 1.9 | 1.9 | 2.0–2.26 | 2.0–2.1 | 1.7–2.0 | 2.0–2.2 | 2.0–2.2 | 1.7–2.3 | 1.8–2.3 | 1.8–2.35 | 1.8–2.4 | 1.8–2.4 | 1.8–2.5 |
| Max Lumens | 8,500 | 20,000 | U03 12,000 U03S 20,000 |
20,000 | 20,000 | 10,500 | 20,000 | 8,500 | 20,000 | M09 12,000 M15 20,000 |
20,000 | 20,000 | 20,000 |
| Notes | ELPLX01 is discontinued. |
ELPLX02 is discontinued.
|
ELPLU03 is discontinued. |
Z‑ELPLW04.8 is more cost effective. | ELPLM09 is discontinued. |
1 For Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL, EB-PU2010, EB-PU2113, EB-PU2116, EB-PU2120, EB-PU2213, EB-PU2216, EB-PU2220 (Standard Lens is ELPLM15)
2 For Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U, EB-PU1006, EB-PU1007, EB-PU1008 (Standard Lens is ELPLM08)
3 For Pro L1715SNL (Standard Lens is ELPLM15)
4 For Pro G7000W, G7200W (Standard Lens is ELPLM08)
5 For Pro G7100, G7805 (Standard Lens is ELPLM08)
6 For EB-PQ2008B, EB-PQ2008W, EB-PQ2010B, EB-PQ2010W, EB-PQ2213B, EB-PQ2216B, EB-PQ2216W, EB-PQ2220B
7 ELPLX01S and ELPLX02S have a mounting point for the ELPEC01 external camera.
