Epson PowerLite 1286

LCD Projector, 1920 x 1200, 3600 Lumens, HDMI, Lens D:W = 1.38-1.68:1, 2W Mono Speaker, 2 Year Warranty
Item #0600-6138 Model #V11H846120


Bright and Colorful

  • Features 3600 lumens of color brightness (color light output)1 and 3600 lumens of white brightness (white light output).

WUXGA Resolution

  • 1920 x 1200 Full HD widescreen resolution

Wireless Ready

  • Includes a high-speed LAN module for wireless connectivity


  • Lightweight and easy to carry; perfect for travel or to quickly move from room to room

Widi Miracast

  • Allows for wireless mirroring from your AndroidTM phone, tablet, or Windows laptop with Intel processor

Manual Keystone Correction

  • Adjusts vertically and horizontally to easily achieve a perfect rectangular image.

More accurate, vivid color, even in well-lit rooms

  • 3,600 lumens of equal color and white brightness

WUXGA resolution (1920 x 1200)

  • for Full HD 1080p content; plus an array of connectivity options

Wireless screen mirroring

  • mirror device photos, videos and apps using Miracast (Android™/Windows® 8.1+; iOS® requires AirPlay®)

Remarkable color accuracy

  • up to 3x Higher Color Brightness* and up to 3x Wider Color Gamut with Epson over DLP projectors


  • project from your laptop, tablet, or smartphone without plugging into the projector, so you can move freely about the room

Share HD video directly from smartphones, tablets or streaming devices

  • supports MHL-enabled devices for mirroring and charging

Fast wireless setup for your mobile device

  • just scan the on-screen QR code using your phone or tablet

Fast, easy setup with Epson

  • get up and running in no time with easy image adjustments and convenient control

Works with the latest laptops and media players

  • supports HDMI, the standard in connectivity, for digital video and audio in one cable

Portability you need for presentations on the go

  • carrying case included


Projection System 3LCD, 3-chip technology

Projection Method Front/rear/ceiling mount

Driving Method Poly-silicon TFT Active Matrix

Pixel Number 2,304,000 dots (1920 x 1200) x 3

Color Brightness1 Color Light Output: 3,600 lumens

White Brightness1 White Light Output: 3,600 lumens

Aspect Ratio 16:10 native, supports 4:3 and 16:9

Native Resolution 1920 x 1200 (WUXGA)

Resize Support 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 900 (WXGA++), 1680 x 1050 (WSXGA+)

Lamp Type 210 W UHE

Lamp Life8 Normal Mode: Up to 6,000 hoursECO Mode: Up to 10,000 hours

Throw Ratio Range 1.38 (Zoom:Wide), 1.68 (Zoom:Tele)

Size (Projected Distance) 30" – 300" (0.9 – 9 m)

Keystone Correction (Auto) Vertical: ± 30 degrees

Keystone Correction (Manual) Horizontal: ± 30 degrees (Easy-Slide Horizontal Image Correction)

USB Plug ‘n Play Projects audio and video, PC and Mac® compatible

Contrast Ratio Up to 15,000:1

Color Reproduction Over 1.07 billion colors

Projection Lens

Type Optical zoom (Manual)/Focus (Manual)

F-number 1.50 – 1.71

Focal Length 20.42 – 24.50 mm

Zoom Ratio Optical zoom 1.0 – 1.2


Display Performance NTSC: 480 lines; PAL: 576 lines(Depends on observation of the multi-burst pattern)


Speaker 2 W (mono)

Operating Temperature 41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)

Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz

Power Consumption Normal Mode: 315 WECO Mode: 228 W

Fan Noise Normal Mode: 37 dBECO Mode: 28 dB

Security Password Protect function

Dimensions (W x D x H)

Including Feet 11.9" x 9.9" x 3.6"

Excluding Feet 11.9" x 9.8" x 3.4"

Weight 6.2 lb

Remote Control

Features Source search selection, power, volume, e-zoom, A/V Mute, freeze, menu, page up and down, help, auto, mouse functions

Operating Angle Right/left: ± 30 degreesUpper/lower: +15 degrees

Operating Distance 19.7 ft (6 m)

Wireless (Wireless LAN)

Supported Speeds IEEE 802.11b (2.4 GHz): 11 Mbps*IEEE 802.11g (2.4 GHz): 54 Mbps*IEEE 802.11n (2.4 GHz): 65.0 Mbps*IEEE 802.11a (5 GHz): 54 Mbps*IEEE 802.11n (5 GHz): 65.0 Mbps**These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

Supported Mode Infrastructure, Access Point

Frequency Type (Modulations) 802.11b/g/n (2.4 GHz) (DSSS/CCK, OFDM)

Wireless (Miracast)

Supported Connection Mode Supported Speeds IEEE 802.11g (2.4 GHz): 54 Mbps*IEEE 802.11n (2.4 GHz): 130.0 Mbps* IEEE 802.11a (5 GHz): 54 Mbps*IEEE 802.11n (5 GHz): 270.0 Mbps*IEEE 802.11ac (5 GHz): 780Mbps**These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

Supported Mode Wi-Fi Direct®

Certification Wi-Fi CERTIFIEDMiracast

Frequency Type DSSS / CCK, OFDM, MIMO-OFDM

Eco Features

RoHS compliant

Recyclable product9

Epson America, Inc. is a SmartWay® Transport Partner10


Epson ConnectionSM Pre-sales support: U.S. and Canada 800-463-7766

Internet website:

Service Programs 1-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day limited lamp warranty

What’s in the Box

PowerLite 1286 projector, power cable, computer cable (VGA), USB cable, wireless LAN module, soft carrying case, projector remote control, batteries, User Manual CD, Quick Setup Sheet

Ordering Information

PowerLite 1286 Projector V11H846120

Genuine Epson Lamp (ELPLP96) V13H010L96

Replacement Air Filter (ELPAF32) V13H134A32

Soft Carrying Case (ELPKS69) V12H001K69

Universal Projector Ceiling Mount ELPMBPJF

DuetScreen ELPSC80F

ES3000 Screen (ELPSC26H) V12H002S3Y

ES1000 Screen V12H002S4Y

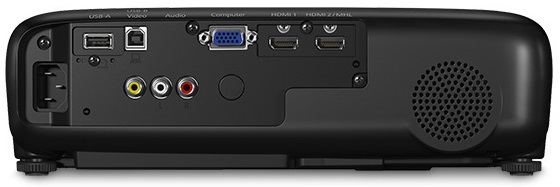

2x HDMI (1 supports MHL®)

Computer/component video: 1x D-sub 15 pin

Composite video: 1x RCA (Yellow)

Audio in: 2x RCA (1 white/1 red)

1x USB connector Type A: PC-free USB and other

1x USB connector Type B: USB Plug ‘n Play




Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
