Epson L1060U

Laser LCD Projector, 1920x1200 WUXGA, 6000 Lumens, Standard Lens, White, 3 Year 20,000 Hr Warranty
Item #0600-6145 Model #V11H941020

Overview

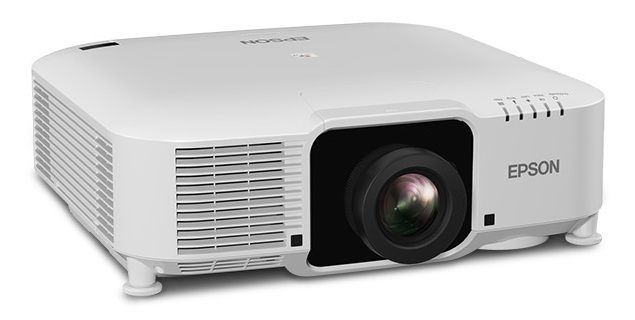

Epson Pro L1060U

Compact WUXGA 3LCD Laser Phosphor Projector with 4K Enhancement

The powerful Pro L1060U, part of Epson’s most compact interchangeable lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology (1920 x 1200 x 2).

The L1060U delivers 6,000 lumens of color and white brightness. With a high contrast ratio and BT.709 color space, this Epson® 3LCD projector produces brilliant, sharp, true-to-life images. The L1060U’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours. It also features 11 optional interchangeable lenses and includes the ELPLM08 standard lens.

Features

Key Features:

  • Ultra bright — 6,000 lumens color/white brightness2 from a compact large-venue laser projector
  • Exceptional widescreen display — native WUXGA with 4K Enhancement Technology1 (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen
  • Vibrant, true-to-life images — with Epson 3-chip 3LCD technology
  • Worry-free operation — solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours3
  • 11 optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens with zero offset (standard lens included: ELPLM08)
  • Lifelike images — high contrast ratio and BT.709 color space for exceptional clarity and detail

Other Features:

  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
  • Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
  • Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
  • Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
  • Web- or network-based remote management — control and monitor projector status

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Notes:
1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technology
Projection Method: Front / rear / ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 pixels (1920 x 1200) x 3 chips
Color Brightness - Color Light Output: 6,000 lumens2
White Brightness - White Light Output: 6,000 lumens2
Aspect Ratio: Supports 4:3, 16:9, 16:10
Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
Brightness Uniformity: 85%
Pixel Arrangement: Cross stripe
Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)
Color Reproduction: Up to 1.07 billion colors
Light Source Life: 20,000 hours (Normal)3
Laser Type: Laser Diode

General:

Operating Temperature: 32° to 113° F (0° to 45° C)
Power Supply Voltage: 100–240 V ±10%, 50/60 Hz AC. Requires 200–240 V for full spec. operation
Power Consumption: 361 W (Normal Mode)
263 W (Extended Mode)
2.0 W (Network Standby)
0.5 W (Energy Saving)
Dimensions (WxDxH): 21.5" x 19.1" x 7.4" (545 x 484 x 189 mm) (including feet, with standard ELPLM08 lens)
Weight: 34.4 lb without lens
Security: Security cable hole, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (ELPLM08 Lens)
F-number: 1.7 – 2.3 (ELPLM08 Lens)
Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)
Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)
Throw Ratio Range: 1.44 – 2.33 (ELPLM08 Lens)
Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160
Interfaces:
  • DVI-D x 1
  • HDMI (HDCP 2.2) x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless LAN, service, content playback
  • Monitor out: Mini D-sub 15-pin x 1
  • Serial: RS-232c x 1
  • Remote Stereo Mini x 1
  • Wired LAN: RJ45
Fan Noise: 36 dB (Normal Mode); 32 dB (Medium Mode); 30 dB (Quiet Mode)

Remote Control:

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functions
Operating Distance: 98 ft
Operating Angle: Right/left:     front: ±60 degrees; rear: ±30 degrees
Upper/lower: front: +30 to -20 degrees; rear: +50 to +10 degrees



What's In The Box:

  • Pro L1060U projector
  • ELPLM08 lens
  • power cable
  • cable cover
  • projector remote control with batteries
  • Quick Setup Sheet

Notes:
1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions.    Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

Accessories

Optional Lenses

Model: ELPLX01
ELPLX01S
ELPLU03
ELPLU03S
ELPLU04 ELPLW05 ELPLW08 ELPLM08
Std Lens
ELPLW06

ELPLM09
ELPLM15

ELPLM10 ELPLM11 ELPLL08
Price:
Add to Cart

Add to Cart

Add to Cart

Add to Cart
$11,219.00
Add to Cart

Add to Cart
$3,348.00
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
  ELPLX01 lens ELPLU03 lens ELPLU04 lens ELPLW05 lens  ELPLW08 lens ELPLW08 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
D:W WUXGA
0.76" chip
0.35:1 0.65–0.78:1 0.87–1.05:1 1.04–1.46:1 1.181.66:1 1.44–2.32:1 1.62–2.22:1 2.16–3.48:1 3.32–5.06:1 4.85–7.38:1 7.21–10.11:1
F/stop 1.9 2.0–2.26 2.0–2.1 2.0–2.2 2.0–2.2 1.7–2.3 1.8–2.3 1.8–2.35 1.8–2.4 1.8–2.4 1.8–2.5
Max Lumens 8,500 U03 12,000
U03S 20,000
20,000 10,500 20,000 8,500 20,000 M09  12,000
M15 20,000
20,000 20,000 20,000
Notes ELPLX01 is discontinued.
ELPLX01S has a mounting point for the ELPEC01 external camera

ELPLU03 is discontinued.

ELPLW05 & ELPLM08 are more cost effective if within light output limits.

ELPLM09 is discontinued.



Other Accessories

Ceiling mounts for L1060U Ceiling mounts
ELPAF51 filter for L1060U Replacement air filter (ELPAF46) $105.00
Add to Cart
ELPHD01 HDBaseT transmitter for L1060U HDBaseT transmitter (ELPHD01)
