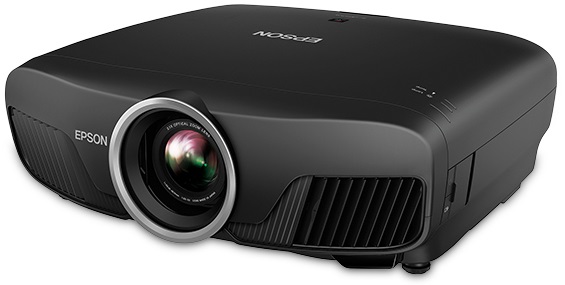

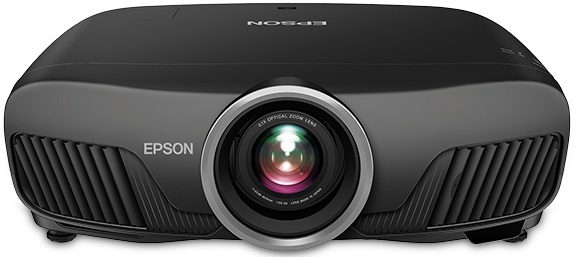

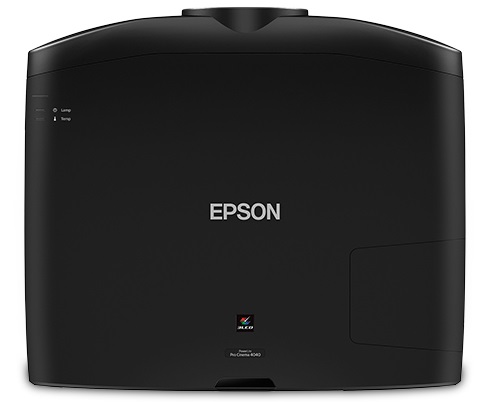

Epson Pro Cinema 4040

Features
The Elite 4K Home Theater Projector Delivering Pro-Level Performance.
Engineered for color-rich performance, the Pro Cinema 4040 offers elite projection capabilities. Epson® PRO-UHD™ 3LCD home theater projectors deliver a groundbreaking combination of color, contrast and resolution for the ultimate entertainment experience. Every detail comes alive with 4K Enhancement Technology, which accepts 4K UHD content and upscales non-4K content. An advanced, 3-Chip, 3LCD design means no color wheel, white segment or rainbow effect. With HDR10 and L*a*b* Ultra Wide Color Gamut, movies look extraordinary. Plus, get 100% Balanced Color Brightness, with 2,300 lumens equal color/white brightness4, and a Rich Black contrast ratio up to 160,000:1.
Specifications
Projection System:
- Epson 3LCD, 3-chip technology
Projection Method:
- Front / Rear / Ceiling mount
Driving Method:
- Epson Poly-silicon TFT Active Matrix, 0.74-inch wide panel
Pixel Number:
- 2,073,600 dots (1920 x 1080) x 3
Color Brightness - Color Light Output:
- 2300 lumens
White Brightness - White Light Output:
- 2300 lumens
Aspect Ratio:
- Native 16:9 widescreen (4:3 resize) Compatible with 4:3 with Normal, Full or Zoom Modes
Native Resolution:
- Native 1080p (1920 x 1080) with 4K Enhancement
Resize:
- 16:10, 4:3
Lamp Type:
- 250 W UHE
Lamp Life:
- Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)
Throw Ratio Range:
- 35 – 2.84
Size - projected distance:
- 50" – 300"
Keystone Correction:
- Vertical: ±30 degrees (Manual)
Contrast Ratio:
- Up to 160,000:1
Color Processing:
- Full 10-bit (partial 12-bit)
Color Reproduction:
- Up to 1.07 billion colors
Projected Output:
- HD, 2D, 3D, 1080p, 4K x 2K
Weight:
- 24.3 lb
Security:
- Kensington Security Lock Port
Case Color:
- Black
Projection Lens Type:
- Powered focus/optical zoom/lens position
F-number:
- 0 – 3.0
Focal Length:
- 5 mm – 46.7 mm
Zoom Ratio:
- 0– 2.1
Lens Shift:
- Vertical: ±96.3
- Horizontal: ±47.1
Lens Cover:
- Powered, Slide Lens Shutter
Cinema Filter:
- Automatically adjusts to color mode
- On: Cinema, Digital Cinema
- Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema
Auto Iris:
- Automatically adjusts to video source
- Off/On: High-speed or Normal, 2D and 3D mode
Super Resolution:
- 2D and 3D

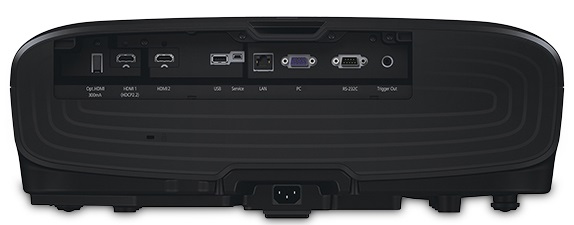

Terminal Inputs:
- HDMI® x 1 (HDCP 2.2)
- HDMI x 1 (HDCP 1.4)
- USB x 2 (service only)
- Mini USB x 1 (service only)
- LAN x 1 (RJ45)
- Computer/D-sub 15 pin x 1
- RS-232c x 1
Terminal Outputs:
- Trigger out 12 V DC, 200 mA maximum
Computer Compatibility:
- PC, Mac®
Power Button Lock:
- Power Button Lock hinders projector from being turned on without parental supervision
Display Performance:
- HDR, DCI color gamut, 4K x 2K native (2D only)
- 1080p; HD, 2D, 3D, 2D-to-3D conversion, Picture in Picture (2D only)
Frame Interpolation (1080p, 24 Hz)
Color Modes:
- 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
- 3D: Dynamic, Cinema
Input Signal:
- 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K
- HDMI: TMDS
Fan Noise:
- 20 dB – 31 dB
Projector Dimensions:
- Including feet: 20.5" x 17.7" x 7.6" (W x D x H)
- Excluding feet: 20.5" x 17.7" x 6.7" (W x D x H)
Options
![]() |
![]() |

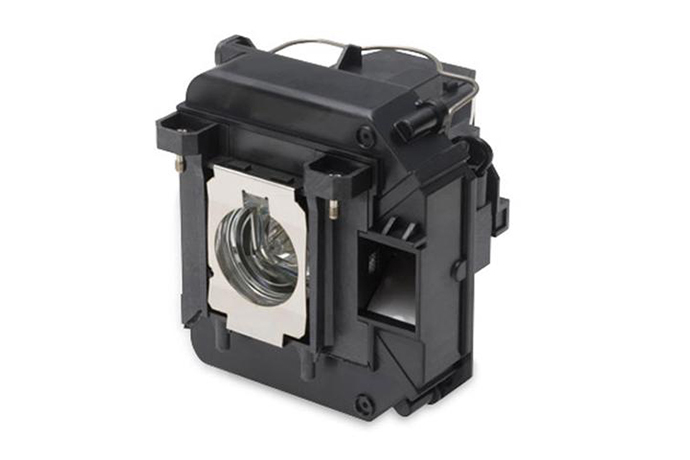

Lamp |

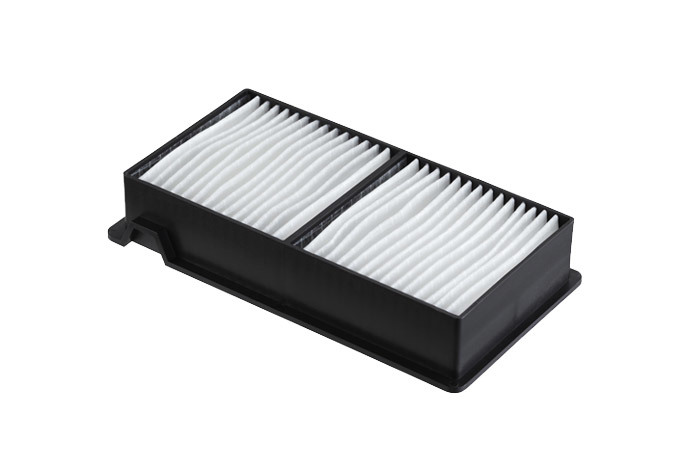

Air Filter |
V13H010L89 |
V13H134A39 |
