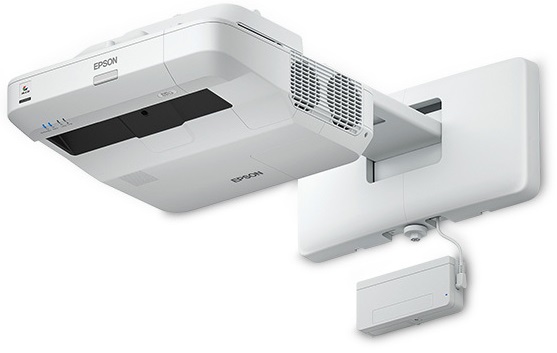

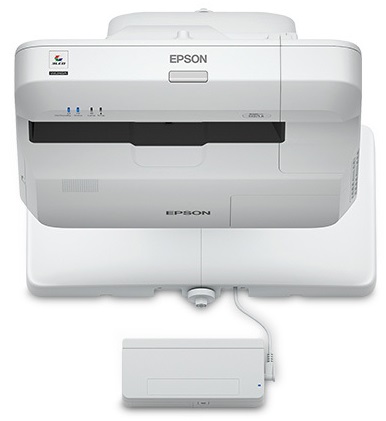

Epson BrightLink 697Ui

LCD Interactive Projector, 1920x1200, 4400 Lumens, D:W 0.22:1, 5000 Hr Lamp, 2 year warranty
Item #0600-6225 Model #V11H823022


BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-throw Interactive Display

The bright, Full HD ultra short-throw interactive display for classrooms.

The ultimate academic collaboration tool, the BrightLink 697Ui touch-enabled, wireless ultra short-throw interactive display delivers supersize Full HD WUXGA images up to 100" — from as close as 10" away. Featuring an amazingly bright 4,400 lumens of color and white brightness, the 697Ui turns almost any wall or existing whiteboard into a collaborative interactive workspace. Offering encrypted enterprise-level security, wireless support and content sharing for a variety of devices — including Chromebooks — it’s perfect for today’s BYOD classrooms. Plus, PC-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription to SMART Learning Suite.



  • Projection System: Epson® 3LCD, 3-chip technology
  • Projection Method: Front/rear/wall mount/table mount
  • Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Color Brightness: Color Light Output: 4,400 lumens
  • White Brightness: White Light Output: 4,400 lumens
  • Interactive Color Brightness: Color Light Output: 4,400 lumens
  • Interactive White Brightness: White Light Output: 4,400 lumens
  • Aspect Ratio: 16:10
  • Native Resolution: 1920 x 1200 (WUXGA)
  • Lamp Type: 300 W UHE
  • Lamp Life: ECO Mode: Up to10,000 hoursNormal Mode: Up to 5,000 hours
  • Size (Projected): (16:10) 70.4" – 100"
  • Keystone Correction (Manual): Horizontal: ±3 degrees; Vertical: ±3 degrees
  • USB Plug ’n Play: Mac OS® 7/10.8/10.9/10.10/10.11/macOS10.12.x
  • USB Plug ’n Play for Windows®: Windows Vista®/Windows 7/ Windows 8/Windows 10
  • Contrast Ratio: Up to 16,000:1
  • Color Reproduction: Up to 1 billion colors

Projection Lens

  • Type: Manual focus
  • F-number: 1.6
  • Focal Length: 4.2 mm
  • Throw Ratio: 0.22:1
  • Zoom Ratio: Digital zoom: 1.0 – 1.35x


  • Display Performance: NTSC: 480 linesPAL: 576 lines (Depends on observation of the multi-burst pattern)
  • Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
  • Speaker: 16 W monaural
  • Operating Temperature: 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)
  • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz
  • Power Consumption: 477 W2.9 W Standby (Communication On)0.22 W Standby (Communication Off)
  • Fan Noise: ECO Mode: 30 dBNormal Mode: 38 dB
  • Security: Kensington lock provision, security anchor bar, Password Protection function


  • Interactive Technology: Infrared, 850 nm
  • Interactive Area (Image Size): 70" – 100" diagonal (16:10, WUXGA)
  • Interactive Modes: Computer Interactivity/Input,PC-free and Whiteboard Annotation Mode, Pen: Dual User, Finger Touch: Up to 6 points of touch
  • PC-free Annotation: Two pens and two fingers
  • Annotation Tools: Epson Easy Interactive Tools, Dual User
  • PC Annotation Sources: USB, HDMI, Computer 1, Computer 2, LAN
  • PC-free Annotation Devices: Document Cameras, DVD/Blu-ray Disc® player, iPod®/iPad® devices, Chromebooks
  • Calibration Method: Automatic or Manual
  • Interactive Connectivity: USB cable for non-networked Interactive Software Requirements Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver requiredMac: Mac OS X® 7/10.8/10.9/10.10/10.11/macOS 10.12.xEpson Easy Interactive Tools for Windows and Mac
  • System Compatibility: Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter)Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
  • Gestures: Requires Windows 7 or later, or or Mac OS 10.7 or later
  • SMART Notebook Requirements
  • Supported Operating Systems: Windows 7 SP1, Windows 8/8.1, Windows 10, Mac OS X 10.9, 10.10, 10.11
  • Minimum Processor: Intel Core 2 Duo
  • Minimum RAM: 2GB (4GB for UHD displays)
  • Minimum Hard Disk Space: 3GB (Windows); 3GB (Mac)

Interactive Input Device

  • Type of Interactive Input Device: Digital pen
  • Interactive Pen Functions: Mouse Functions (left and right click), Electronic Pen, LED Battery Status Indicator
  • Interactive Pen Power: AA battery, rechargeable
  • Compatible Pen Battery Types: Eneloop® batteries (included), Manganese dry cell, alkaline dry cell
  • Interactive Pen Dimensions: 3" x 0.94" (diameter)
  • Interactive Pen Weight: 1 oz (without battery)

Dimensions (W x D x H)

  • 7" x 17.6" x 5.1"
  • Weight: 7 lb

Remote Control

  • Features: Computer, Video/HDMI, USB, LAN, Whiteboard, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, User, Home, Split, Pen Mode, Link Menu
  • Operating Angle: Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degreesFront: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees
  • Operating Distance: 7 ft (6 m)

Eco Features

  • RoHS compliantRecyclable product6Epson America, Inc. is a SmartWay® Transport Partner7


  • Epson ConnectionSM:
    • Pre-sales support
    • S. and Canada: 800-463-7766
  • Service Programs: 2-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day limited lamp warranty

What’s in the Box

  • BrightLink 697Ui ultra short-throw interactive projector, wall mount, mount template sheet, installation manual, finger-touch module, touch module mounting bracket, touch module cable, wall mounted control panel, wireless LAN adapter, Quick Start Guide, power cable, USB A/B cable, electronic user manual, interactive driver for Mac and PC, Epson Easy Interactive Tools, Network Management software, projector remote control, two (2) interactive pens, two (2) AA batteries (for interactive pens) plus battery charger, two (2) AA batteries (for remote), SMART Notebook redemption code

Ordering Information

  • BrightLink 697Ui V11H823022
  • Genuine Epson Lamp V13H010L92
  • Air Filter V13H134A45
  • PowerLite® Pilot2 (ELPCB02) V12H614020
  • Active Speakers (ELPSP02) V12H467020
  • Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02
  • 100" Whiteboard V12H831000
  • Interactive Pen A (orange) V12H773010
  • Interactive Pen B (blue) V12H774010
  • Replacement Pen Tips (hard/Teflon®) V12H775010
  • Replacement Pen Tips (soft/felt) V12H776010
  • Ultra Short-throw Wall Mount (ELPMB46) V12H777020


  • 1x HDMI®
  • 1x HDMI/MHL®
  • Computer/Component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 2x Mini stereo
  • USB connector: 1x Type B (USB display, audio and mouse control interactivity)
  • USB connector: 2x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15 pin
  • Audio Out: 1x Mini stereo
  • Wireless LAN port: 802.11 b/g/n (included)
  • Interactive Synchronization Mini stereo In
  • Interactive Synchronization Mini stereo Out
  • Touch Unit Connection Port
  • DVI-Out
  • Remote

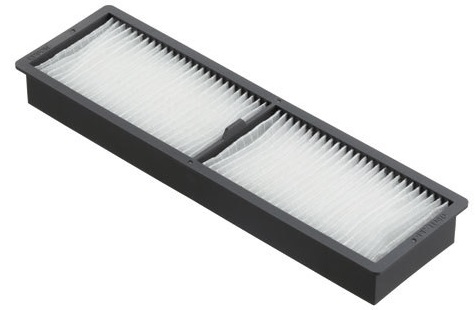

Air Filter

PowerLite Pilot 2

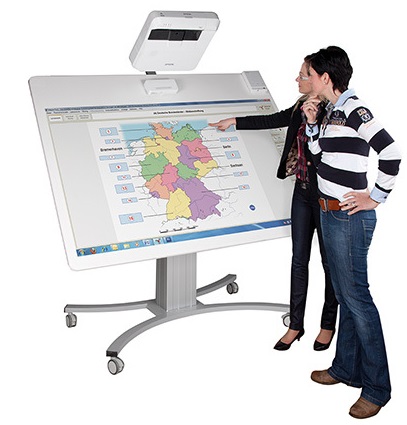

Interactive Table

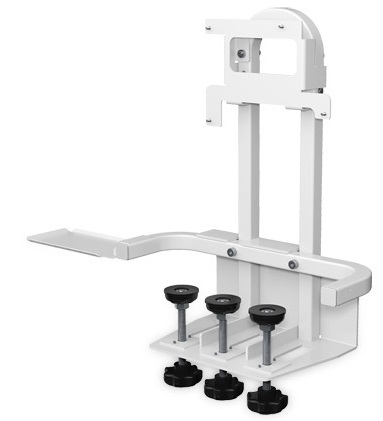

Table Mount

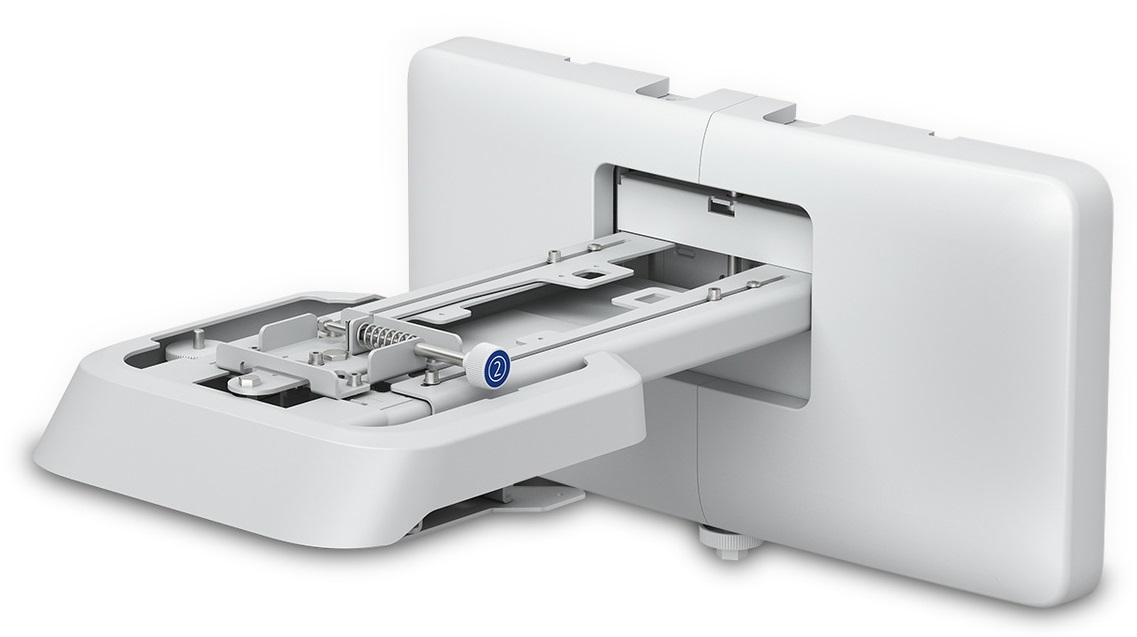

Wall Mount

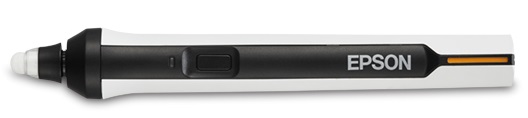

Interactive Pen (Orange)

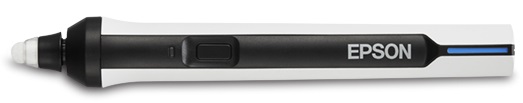

Interactive Pen (Blue)











Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
