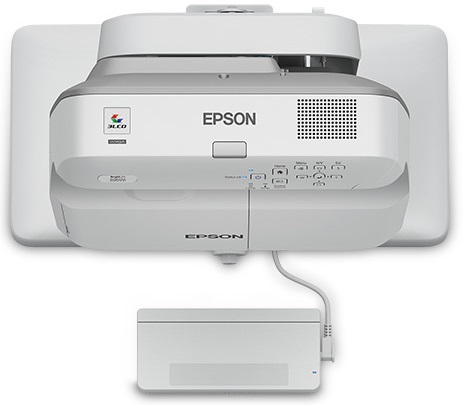

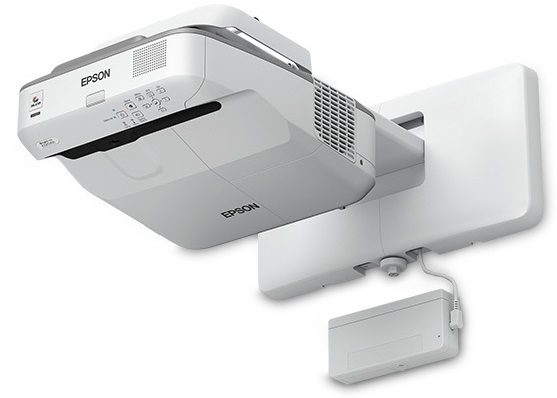

Epson BrightLink 695Wi

LCD Projector, 1280x800 WXGA, 3500 Lumens, Interactive, Ultra Short Throw, 2 Year Warranty
Part #: 0600-6227    Mfr #: V11H740522

Epson BrightLink 695Wi

Features

BrightLink 695Wi WXGA 3LCD Ultra Short-throw Interactive Display

Touch-based WXGA ultra short-throw interactive display for classrooms.

Transform your classroom into a collaborative learning space with the BrightLink 695Wi ultra short-throw WXGA interactive display. Featuring 3,500 lumens of color and white brightness, the 695Wi delivers a dynamic, easy-to-read display up to 100" — from as close as 11" away. Turn almost any wall or existing whiteboard into an interactive workspace with touch-based interactivity — up to six users at once. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™ App with Moderator device management software. Plus, it includes a 1-year subscription to SMART Learning Suite.

Specifications

Specifications

  • Projection System Epson® 3LCD, 3-chip technology
  • Projection Method Front/rear/wall mount/table mount
  • Driving Method Epson Poly-silicon TFT Active Matrix
  • Pixel Number 1,024,000 dots (1280 x 800) x 3
  • Color Brightness1 Color Light Output: 3,500 lumens
  • White Brightness1 White Light Output: 3,500 lumens
  • Interactive Color Brightness1 Color Light Output: 3,500 lumens
  • Interactive White Brightness1 White Light Output: 3,500 lumens
  • Aspect Ratio 16:10
  • Native Resolution 1280 x 800 (WXGA)
  • Lamp Type 250 W UHE
  • Lamp Life4 ECO Mode: Up to10,000 hoursNormal Mode: Up to 5,000 hours
  • Size (Projected) (4:3) 53" – 88"; (16:10) 60" – 100"; (16:9) 59" – 97"
  • Keystone Correction (Manual) Horizontal: ±3 degrees; Vertical: ±3 degrees
  • USB Plug ’n Play Mac OS® 7/10.8/10.9/10.10/10.11/macOS10.12.x
  • USB Plug ’n Play for Windows® Windows Vista®/Windows 7/Windows 8/Windows 10
  • Contrast Ratio Up to 14,000:1
  • Color Reproduction Up to 1 billion colors

Projection Lens

  • Type Manual focus
  • F-number 6
  • Focal Length 7 mm
  • Throw Ratio Range (16:10) 0.28 – 0.37, (4:3) 0.33 – 0.45, (16:9) 0.28 – 0.37
  • Zoom Ratio Digital zoom: 1.0 – 1.35x

Other

  • Display Performance NTSC: 480 linesPAL: 576 lines (Depends on observation of the multi-burst pattern)
  • Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
  • Speaker 16 W monaural
  • Operating Temperature 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)
  • Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
  • Power Consumption 373 W2.2 W Standby (Communication On)0.23 W Standby (Communication Off)
  • Fan Noise ECO Mode: 29 dBNormal Mode: 35 dB
  • Security Kensington lock provision, security anchor bar, Password Protection function

Interactivity

  • Interactive Technology Infrared, 850 nm
  • Interactive Area (Image Size) 60" – 100" diagonal (16:10, WXGA)
  • Interactive Modes Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual User, Finger Touch: Up to 6 points of touch
  • PC-free Annotation Two pens and two fingers
  • Interactive Tools Epson Easy Interactive Tools, Dual User
  • PC Interactive Sources USB, HDMI, Computer 1, Computer 2, LAN
  • PC-free Annotation Devices Document Cameras, DVD/Blu-ray Disc® player, iPod®/iPad® devices, Chromebooks
  • Calibration Method Automatic or Manual
  • Interactive Connectivity USB cable for non-networked
  • Interactive Software Requirements Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver requiredMac: Mac OS X® 7/10.8/10.9/10.10/10.11/macOS 10.12.xEpson Easy Interactive Tools for Windows and Mac
  • System Compatibility Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter), Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
  • Gestures Requires Windows 7 or later, or Mac OS 10.7 or later
  • SMART Notebook Requirements
  • Supported Operating Systems Windows 7 SP1, Windows 8/8.1, Windows 10, Mac OS X 10.9, 10.10, 10.11, macOS 10.12
  • Minimum Processor Intel Core 2 Duo
  • Minimum RAM 2GB (4GB for UHD displays)
  • Minimum Hard Disk Space 3GB (Windows); 3GB (Mac)

Interactive Input Device

  • Type of Interactive Input Device Digital pen
  • Interactive Pen Functions Mouse Functions (left and right click), Electronic Pen, LED Battery Status Indicator
  • Interactive Pen Power AA battery, rechargeable
  • Compatible Pen Battery Types Eneloop® batteries (included), Manganese dry cell, alkaline dry cell
  • Interactive Pen Dimensions 3" x 0.94" (diameter)
  • Interactive Pen Weight 1 oz (without battery)

Dimensions (W x D x H)

  • 5" x 15.8" x 5.9"
  • Weight 8 lb

Remote Control

  • Features Computer, Video/HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, Home, Split, Pen Mode, Link Menu
  • Operating Angle Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degreesFront: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees
  • Operating Distance 7 ft (6 m)

Eco Features

  • RoHS compliant
  • Recyclable product7
  • Epson America, Inc. is a SmartWay® Transport Partner8

Support

Epson ConnectionSM

  • Pre-sales supportU.S. and Canada: 800-463-7766www.epson.com
  • Service Programs 2-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day limited lamp warranty

What’s in the Box

  • BrightLink 695Wi ultra short-throw interactive projector, finger- touch module, touch module mounting bracket, touch module cable, Quick Start Guide, power cable, USB A/B cable, USB extender cable, electronic user manual, interactive driver for Mac and PC, Epson Easy Interactive Tools, Network Management software, projector remote control, two (2) interactive pens, pen tray, two (2) AA batteries (for interactive pens) plus battery charger, two (2) AA batteries (for remote), SMART Notebook redemption code

Ordering Information

  • BrightLink 695Wi V11H740522
  • Genuine Epson Lamp V13H010L91
  • Air Filter V13H134A49
  • PowerLite® Pilot2 (ELPCB02) V12H614020
  • Active Speakers (ELPSP02) V12H467020
  • Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02
  • 100" Whiteboard V12H831000
  • Interactive Pen A (orange) V12H773010
  • Interactive Pen B (blue) V12H774010
  • Replacement Pen Tips (hard/Teflon®) V12H775010
  • Replacement Pen Tips (soft/felt) V12H776010
  • Ultra Short-throw Wall Mount (ELPMB46) V12H777020

Interfaces

  • 2x HDMI®
  • 1x HDMI/MHL®
  • Computer/Component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 3x Mini stereo
  • USB connector: 1x Type B (USB display, audio and mouse control interactivity)
  • USB connector: 1x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out/Computer 2: 1x D-sub 15 pin
  • Audio Out: 1x Mini stereo
  • Microphone: 1x Mini stereo
  • Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
  • Interactive Synchronization Mini stereo In
  • Interactive Synchronization Mini stereo Out
  • Touch Unit Connection Port

Options

PowerLite Pilot 2

Interactive Pen (Orange)

Interactive Pen (Blue)

Wall Mount

Table Mount

Air Filter

V12H614020
V12H773010
V12H774010
V12H777020
V12H516020
V13H134A49

Downloads

Warranty

Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
