Epson PowerLite 680

Features
PowerLite 680 XGA 3LCD Presentation Display
The bright ultra short-throw presentation display for BYOD classrooms
Offering powerful brightness, the PowerLite 680 ultra short-throw presentation display takes classroom collaboration further. Designed for today’s BYOD classroom, this XGA performer displays 92" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 680 ensures engaging presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple student devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Specifications
Specifications
- Projection System 3LCD, 3-chip technology
- Projection Method Front/rear/wall mount/table
- Driving Method Poly-silicon TFT Active Matrix
- Pixel Number 786,432 dots (1024 x 768) x 3
- Color Brightness2 Color Light Output: 3,500 lumens
- White Brightness2 White Light Output: 3,500 lumens
- Aspect Ratio 4:3
- Native Resolution 1024 x 768 (XGA)
- Resize 640 x 480 (VGA); 800 x 600 (SVGA); 1152 x 864 (SXGA); 1280 x 800 (WXGA); 1280 x 960 (SXGA2); 1280 x 1024 (SXGA3); 1280 x 768 (WXGA 60-1); 1366 x 768 (WXGA 60-2); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1600 x 900 (WXGA++); 1600 x 1200 (UXGA)
- Lamp Type 250 W UHE
- Lamp Life Up to 10,000 hours (ECO Mode)Up to 5,000 hours (Normal Mode)
- Throw Ratio 0.32:1
- Size (Projected Distance) 4" – 92.7" (0.34 – 0.60 m)
- Keystone Correction (Manual) Vertical: ±3 degreesHorizontal: ±3 degrees
- Mac Connectivity Projector is Mac compatible via USB; DVI to HDMI or VGA adapter (not included); DP to HDMI or VGA adapter (not included)
- Contrast Ratio Up to 14,000:1
- Color Reproduction Up to 1.07 billion colors
Projection Lens
- Type Digital zoom/Manual focus
- F-number 1.6
- Focal Length 3.7 mm
- Zoom Ratio Digital zoom: 1.0 – 1.35
Other
- Display Performance NTSC: 480 linesPAL: 576 lines (Depends on observation of the multi-burst pattern)
- Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
- Speaker 16 W (mono)
- Operating Temperature 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)
- Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
- Power Consumption 373 W (Normal Mode)324 W (ECO Mode)2.2 W Standby (Communication On)0.23 W Standby (Communication Off)
- Fan Noise 35 dB (Normal Mode)30 dB (ECO Mode)
- Security Kensington-style lock provision, padlock and security cable hole, Password-protect Function
Dimensions (W x D x H)
- Including Feet 5" x 15.8" x 7.4"
- Excluding Feet 5" x 15.8" x 5.9"
- Weight 6 lb
Remote Control
- Features Source Search, HDMI/Video, LAN, Computer, USB, Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Page Up and Down, Home, Auto, Mouse Functions, User, Split Screen7
- Operating Distance Front/rear: 19.7 ft (6 m)
Eco Features
- RoHS compliant
- Recyclable product8
- Epson America, Inc. is a SmartWay® Transport Partner9
Support
Epson ConnectionSM
- Pre-sales support
- S. and Canada: 800-463-7766www.epson.com
- Service Programs 2-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day limited lamp warranty
What’s in the Box
- PowerLite 680 projector, 15' power cord, projector remote control, batteries, user manual CD, projector software CDs, Quick Setup Sheet, Installation Guide, template sheet, projector feet
Ordering Information
- PowerLite 680 V11H746520
- Genuine Epson Lamp V13H010L91
- Air Filter (ELPAF49) V13H134A49 PowerLite Pilot™ 2 (ELPCB02) V12H614020
- Active Speakers (ELPSP02) V12H467020
- Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02
- Epson DC-21 Document Camera (ELPDC21) V12H758020
- 100" Whiteboard V12H831000
- Ultra Short-throw Wall Mount (ELPMB46) V12H777020
Interfaces
- Wireless LAN Port 802.11(USB) b/g/n(Optional – module sold separately)
- Microphone: 1x
- RS-232c: 1x
- Video: 1x
- Audio in: 3x Mini Stereo
- USB (Type B): 1x
- USB (Type A Power): 1x
- Audio-out: 1x
- Monitor-out: 1x / Computer 2
- Computer: 2x
- Network: 1x RJ-45
- 3x HDMI (1x MHL)
Options
![]() |
![]() |
![]() |
![]() |
Wall Mount |
Table Mount |
Air Filter |

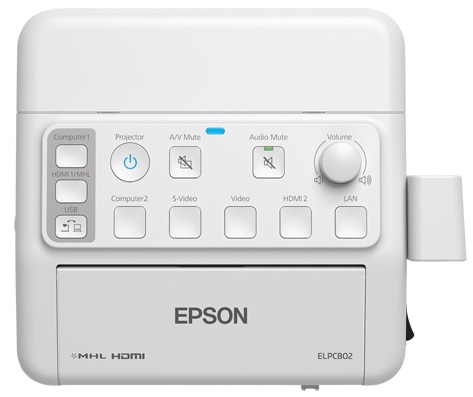

PowerLite Pilot 2 |
V12H777020 |
V12H516020 |
V13H134A49 |
V12H614020 |
Downloads
Powerlite 680 - Specification Sheet
Powerlite 680 - Projector Mount Compatibility Guide
Powerlite 680 - Installation Guide - Ultra-Short Throw Wall Mount (ELPMB46)
Powerlite 680 - Mounting Templates (ELPMB46)
Powerlite 680 - Operation Guide - EasyMP Network Updater v1.20
Powerlite 680 - Operation Guide - EasyMP Multi PC Projection v2.10
Powerlite 680 - Operation Guide - Epson iProjection v2.20 (Windows-Mac)
Powerlite 680 - Operation Guide - Epson Projector Management v5.10
Warranty
Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
