Panasonic ET-SBFMP10
Overview

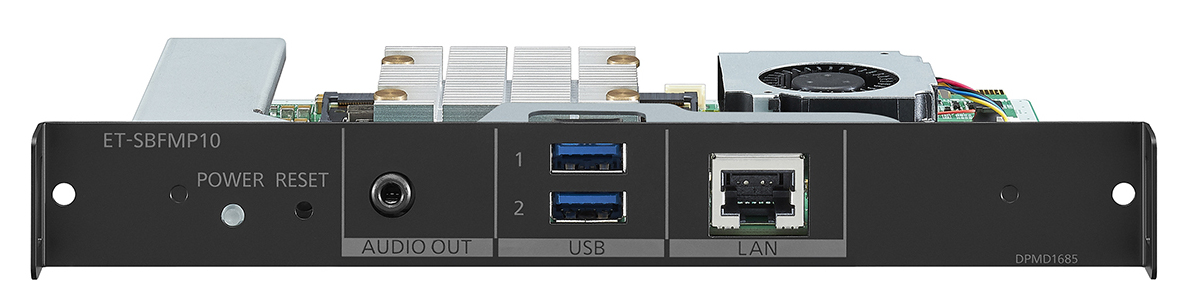

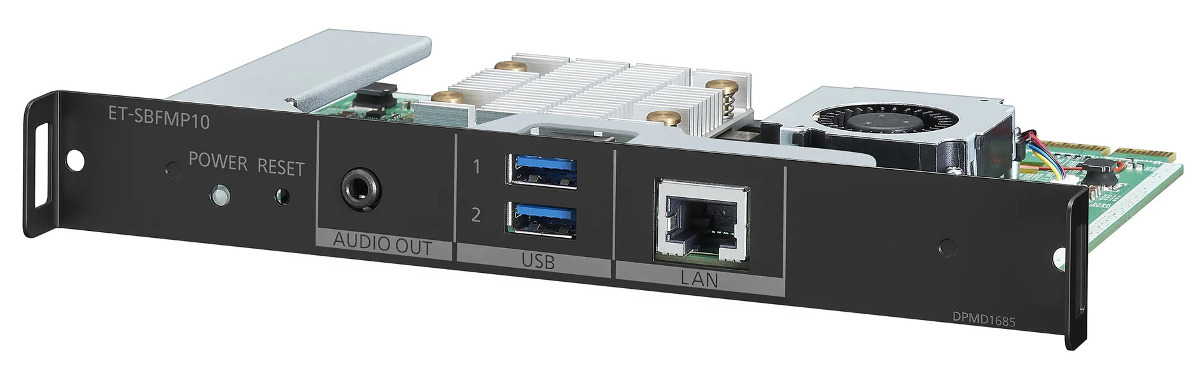

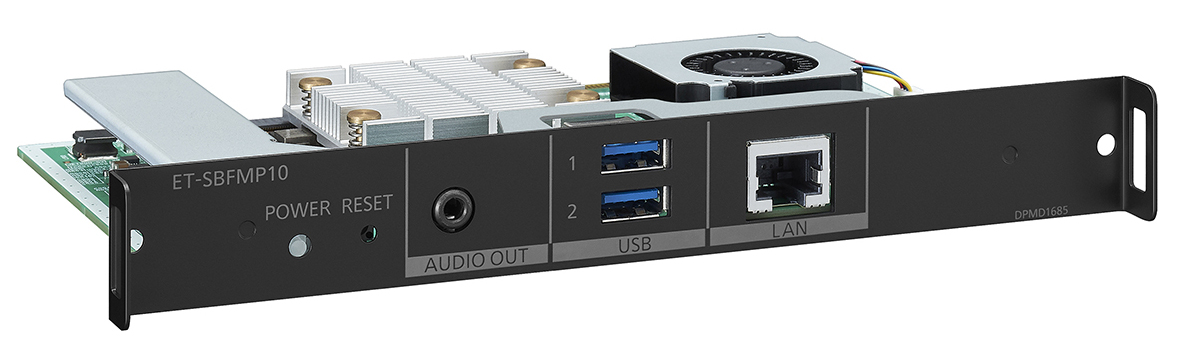

Panasonic ET-SBFMP10
Media Processor Function Board
To simplify and expand projector connectivity, install the Panasonic ET-SBFMP10 Function Board, removing additional devices altogether. It is compatible with any projector or display equipped with the Intel® SDM slot.
The ET-SBFMP10 slots into your Panasonic projector's Intel® SDM standard-compatible SLOT to enable connection via LAN cable only, reducing the cost and complexity of installation and cabling.
Working with NIKON® cameras, the ET-SBFMP10 automates complex warping/ blending processes with highly precise pixel-based adjustment. It also outputs 3840 x 2160p video, and supports both H.264 and H.265 formats. Play content directly from the processor or over NDI®-compatible LAN.
Key Features:
- Flexible design streamlines installation
- Simple yet high-precision adjustment
- Smooth and continuous content playback
Features
- Reduces the Cost and Complexity of Installation and Cabling: the ET-SBFMP10 function board slots into your Panasonic projector's Intel® SDM standard-compatible SLOT1 to enable connection via LAN cable only, simplifying the system and reducing the need for server room construction.
- Saves Time, Enhances Quality with Camera-based Adjustment: Working with NIKON® cameras2, the ET-SBFMP10 saves time by automating complex warping/ blending processes with highly precise pixel-based adjustment. View the projection area from the camera’s perspective on a PC and click to designate an image display area: content splitting, geometric adjustment, and blending are performed automatically.
- Supports High-Quality Video Content: the ET-SBFMP10 outputs 3840 x 2160p video, and supports H.264 and H.265 formats. Play content directly from the processor with media storage up to 512 GB3 or over NDI®-compatible LAN.
- Automatic content splitting via camera (resolutions up to 4K supported)
- Manual color-matching adjustment (automatic is TBA)
- Compatible with Multi Monitoring & Control Software4 (software functionality with ET-FMP50 Series is currently limited to on/off status monitoring only)
- Playback scheduling function
Notes
1 Panasonic cannot guarantee compatibility of the ET-SBFMP10 with non-Panasonic projectors. Compatibility with future supported Panasonic models is anticipated.
2 Compatible cameras (sold separately) comprise NIKON® D5200/D5300/D5500/D5600/D7500/Z50.
3 Approximately 30 GB of the total storage space is allocated for system usage and is unavailable to the user.
4 Download free from the Panasonic global projector website.
Specifications
| Type | Function board-type1 | |
| Terminals | LAN | RJ-45 x 1 for network connection 10Base-T/100Base-TX, 1000Base-T, NDI® compatible |
| Audio OUT | 3.5 mm stereo mini-jack 0 V [rms] to 2.0 V [rms] (variable), output impedance 2.2 kΩ or lower | |
| Content compatible with streaming playback NDI® | Image compression method: High Bandwidth NDI® | |
| Image resolution/frame rate: 1920 x 1080/60fps, 1920 x 1080/50fps | ||
| Audio signals: Linear PCM and sampling frequency: 44.1kHz/48kHz, 16-bit, 2 channels | ||
| Video format | H.2642, 8-bit, 3840 x 2160 pixels, 60p, YPBPR 4:2:0, 300 Mbps H.2653, 8-bit, 4096 x 4096 pixels, 60p, YPBPR 4:2:0, 300 Mbps Color format: RGB Color depth: 8-bit |
|
| Max. video output resolution | 3840 x 2160/60p | |
| Audio format | AAC-LC, 16-bit, stereo | |
| Storage | 512 GB4 | |
| Operating system | Linux | |
| Dimensions (W x H x D) | Approx. 7 11/16 in x 1 in x 4 27/32 in (195 x 25 x 123.2 mm) | |
| Weight | Approx. 0.57 lb (0.26 kg) | |
| Operating environment | Operating temperature | 32–113 °F (0–45 °C)5 |
| Operating humidity | 10–80 % (no condensation) | |
Notes:
1 Compatible with Intel® SDM standard SLOT; Panasonic cannot guarantee compatibility of the ET-SBFMP10 with non-Panasonic projectors.
2 Compatible profiles: Baseline, Main, High (4:2:0)
3 Compatible profiles: Main (4:2:0)
4 Approximately 30 GB of the total storage space is allocated for system usage and is unavailable to the user.
5 The operating temperature range may differ according to the specific projector model paired with the ET-SBFMP10
