Plus U7-132hSF

DLP Projector, XGA, 3500 Lumens, DVI, 6.6 lb., Soft Case Included, 1-Year Warranty
Item #0601-0515 Model #U7132HSF
$585.00
Price

Overview

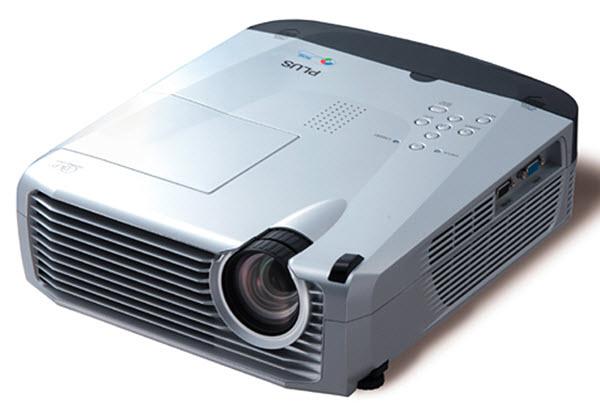

PLUS U7-132hSF

XGA Conference Room Projector

The PLUS U7-132hSF is a lamp-based projector capable of displaying 3,500 Lumens at its brightest setting with a native resolution of 1024x768 (XGA). The internal DLP technology touts higher contrast, less visible pixels and more portability, making it ideal for conference rooms of all sizes.

PLUS has created a projector that offers astounding compactness, lightness (only 6.6 lb), and brightness by combining technologies gained from its development of mobile projectors with DLP™ technology, which is ideal for compact projectors using a single-chip Digital Micromirror Device (DMD) system.

A high contrast of 2,000:1 offers a superlative brightness that seems to supersede specifications in actual use. In addition, the DLP™ technology minimizes picture quality decay that often occurs with LCD projectors when used over a long period of time.

The U7-132hSF also comes with a soft case.

Features

  • Light, compact and designed to be mounted to the ceiling: weighing less than 7 lb, the U7-132hSF is easy to move from place to place. An easily replaceable lamp and a terminal cover allow the projector to be mounted to the ceiling and its light, compact design gives it wonderful portability. It works anywhere, from small seminar rooms to large conference rooms.
  • Equipped with short-focus zoom lens: The short-focus zoom lens allows you to project images onto a 100-inch screen from a distance of only 10 feet.
  • Advanced Color Wheel (ACW) allows for further enhancement of color reproduction: PLUS's unique ACW preserves brightness, while allowing for superlatively enhanced color reproduction and astoundingly clear picture quality attainable only with DLP™ technology.
  • High contrast ratio of 2,000:1: delivers an experience of brightness that surpasses the specifications.
  • Equipped with a wide array of input/output terminals: Equipped with a built-in line doubler and advanced input/output terminals, including analog RGB input, analog RGB output, and DVI terminals, high-quality image sources are beautifully reproduced.
  • Compatible with progressive DVD input (480p, 576p) and HDTV broadcast (1080i, 720p): With the component video cable, you can input progressive DVD and HDTV (1080i, 720p) signals. A 16:9 aspect ratio is also supported.
  • Superior Security Options: Projectors can be set to require the input of a password at startup. Security slot accommodates use of third-party anti-theft cables. The cable attaches to a desk or other fixed object, and the lock fits snugly into the security slot.
  • 1-year warranty

Specifications

Projection System DLP™
Panel DMD XGA x 1
Resolution 1024 pixels x 768 pixels
Brightness 3500 lm in Dynamic Mode (Eco-mode: approximately 20% less brightness)
Contrast Ratio 2000:1 (Full on/off)
Aspect Ratio 4:3, supports 16:9
Projection Lens F2.6-2.8 f= 22.1-25.6 mm
1.2x Manual Zoom, Manual Focus
Light Source 300-watt High Performance Compact Lamp
Lamp Life 2,000 hours (Normal mode), 3,000 hours (Eco-mode)
Color Palette 16.7 million colors
Projecting Position Front/Rear, Table/Ceiling
Projection Distance 3.9–31.2 ft
Image Size 34"–300" diagonal
RGB Signal (Input) SXGA (Compression), XGA (True), SVGA/VGA (Expansion/True)
Video Signal NTSC3.58, NTSC4.43, PAL, PAL_N, PAL_M, PAL60, SECAM, YCbCr (NTSC, PAL), YPbPr (480p, 576p, 1080i, 720p)
Horizontal Synch Range 15–80 kHz
Vertical Synch Range 50–85 Hz
Audio Terminals (Input) Mono 0.5-watt
RGB (Analog/Digital)/YCbCr/YPbPr: DVI-I x 1
RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1
Composite Video: RCA x 1, S-Video: Mini DIN 4 pin x 1
Audio (RGB/Video): ø3.5 mm Stereo Mini Jack x 1
Terminals (Output) RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1
Other Terminals Remote Mouse: USB Mini-B x 1
RS232C: Mini DIN 9 pin x 1
External Projector Control RS232C
Color Silver
Dimensions (excluding lens and stand) HxWxL 3.3" x 10.2" x 12.6" (83 x 258 x 320 mm)
Weight 6.6 lb (3.0 kg)
Power Supply 100–240 V AC at 50/60 Hz
Power Consumption 430 watts (Normal mode)
380 watts (Eco-mode)
< 15 watts (Standby)
Environment 32-95 °F/0-35 °C
On-Screen Display Languages English/ German/ French/ Italian/ Spanish/Swedish/ Korean/ Chinese/ Japanese
Functions Full-Auto Adjustment, Digital Keystone Correction (Vertical: Max. 20 degrees) Digital Zoom (2x), Freeze, Mute, Quick Color Adjustment Presentation Timer, Security Password
Accessories
  • Lens Cap x 1
  • IR Remote Control (with Laser Pointer) x 1
  • AAA Batteries (for Remote Control) x 2
  • Power Cable (6 ft) x 1
  • VGA Cable (Mini D-sub 15 pin/6.5 ft) x 1
  • S-Video Cable (Mini DIN 4 pin/6.5 ft) x 1
  • Video Cable (RCA/6.5 ft) x 1
  • Audio Cable (ø3.5 mm Mini Plug/6.5 ft) x 1
  • DVI-I - Mini D-Sub 15 pin Adapter (0.6 ft) x 1
  • USB Cable (Mini-B - Type A/6.5 ft) x 1
  • Mini Jack to RCA Adapter (ø3.5 mm Stereo Mini Jack - RCA/0.5 ft) x 1
  • Soft Case x 1
  • User's Manual (CD-ROM) x 1
  • User's Manual (Simplified Edition) x 1
  • Security Label x 1
Optional Accessories User-Replaceable Lamp Unit, Ceiling Mount Kit
Warranty 1-year
